BJ73V-MN (1984)
Toyota Land Cruiser S/T,H/T
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

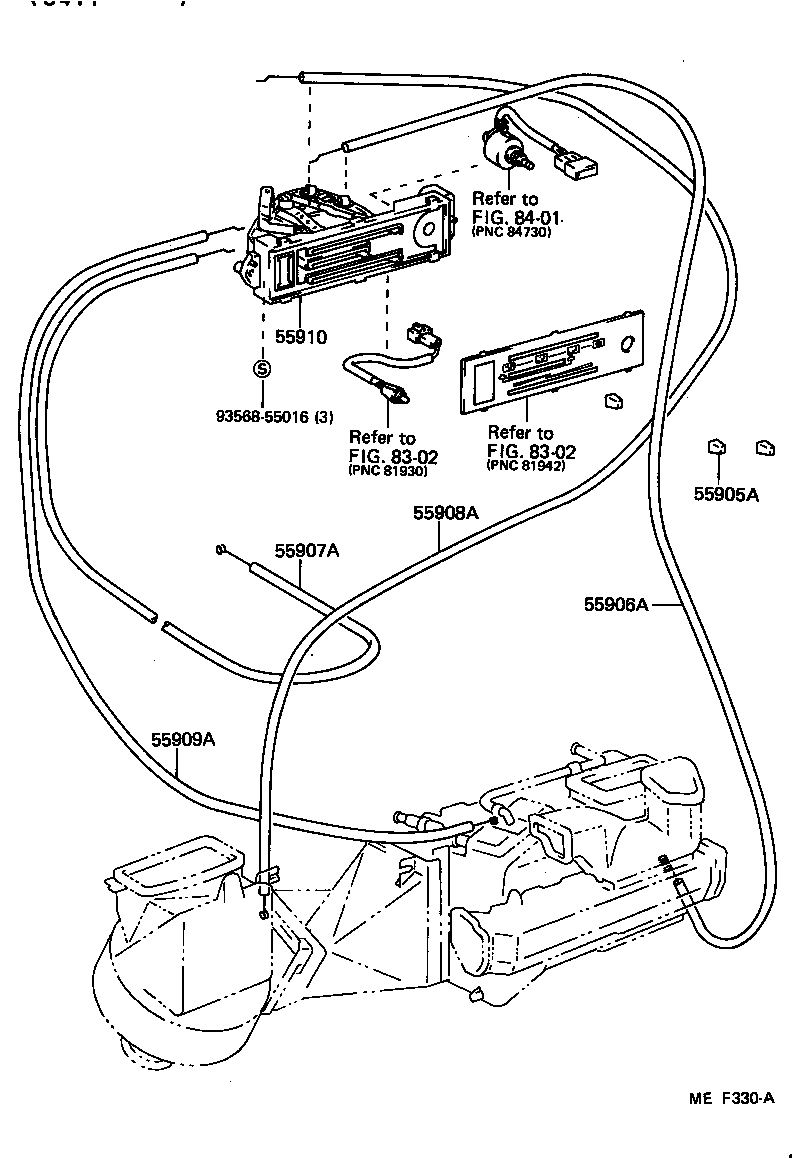

ILLUST NO. 1 OF 2(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95J01 |
BJ7#,LJ71 FRESH-RECIRC |
1 | ||
| 55905-89110 |
BJ7#,LJ71 DEF-VENT,WARM-COOL |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K00 |
BJ7#,LJ71 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90K00 |
BJ7#,LJ71 |
1 | ||
| 55907-90K02 |
BJ7#,LJ71 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K00 |
BJ7#,LJ71 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-90K00 |
BJ7#,LJ71 |
1 | ||
| 55909-90K02 |
BJ7#,LJ71 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-90K02 |
BJ7#,LJ71 |
1 | ||
| 55910-90K00 |
BJ7#,LJ71 |
1 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

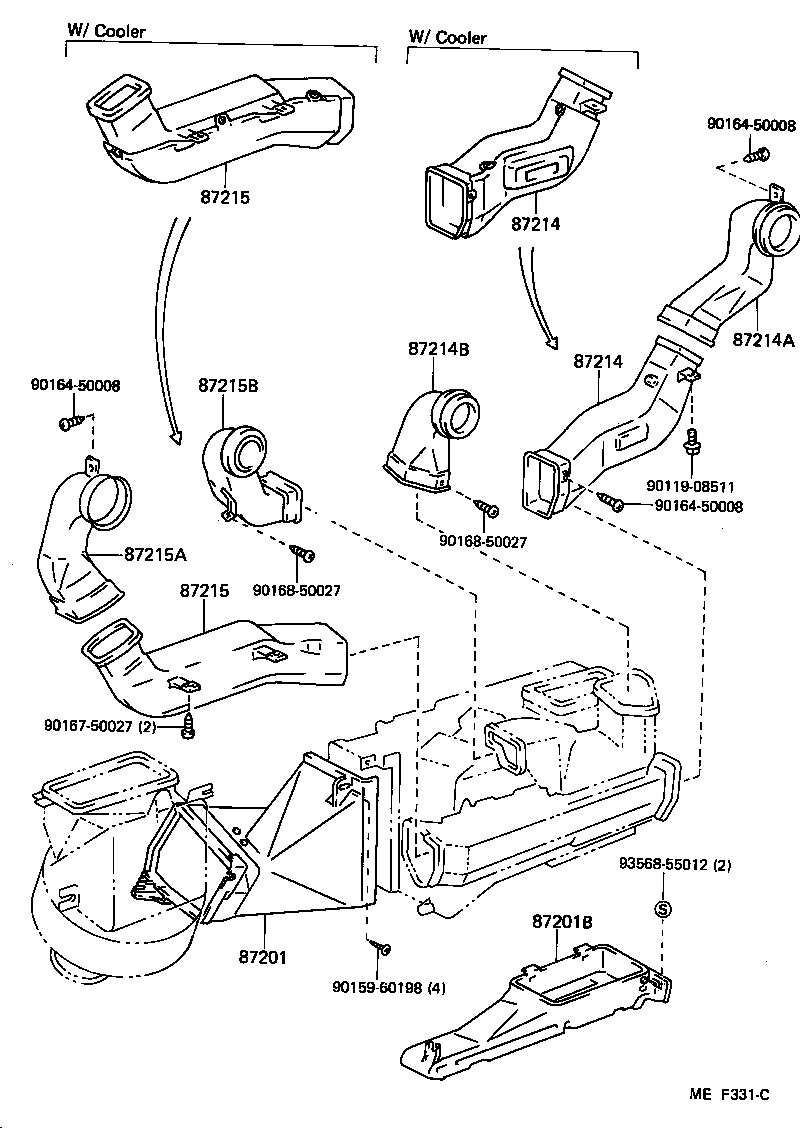

ILLUST NO. 2 OF 2(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-90K00 |
BJ7#,LJ71 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-90K02 |
BJ7#,LJ71 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-90K08 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 55085-90K02 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 88566-90K04 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 55844-90K08 |
BJ7#,LJ71 |
1 | ||
| 55085-90K00 |
BJ7#,LJ71 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-90K08 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 55085-90K02 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 88566-90K04 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 55844-90K08 |
BJ7#,LJ71 |
1 | ||
| 55085-90K00 |
BJ7#,LJ71 |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55084-90K04 |
BJ7#,LJ71 |
1 | ||
| 55084-90K00 |
BJ7#,LJ71 |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55086-90K00 |
BJ7#,LJ71 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55088-90K00 |
BJ7#,LJ71 |
1 | ||
| 55088-90K02 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55088-90K00 |
BJ7#,LJ71 |
1 | ||
| 55088-90K02 |
BJ7#,LJ71 W/COOLER |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55848-90K00 |
BJ7#,LJ71 |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55087-90K00 |
BJ7#,LJ71 |
1 | ||
| Common parts | ||||
| 90119-08511 | ||||
| 90159-60198 | ||||
| 90164-50008 | ||||
| 90167-50027 | ||||
| 90168-50027 | ||||
| 93568-55012 | ||||
