BJ73V-MN (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

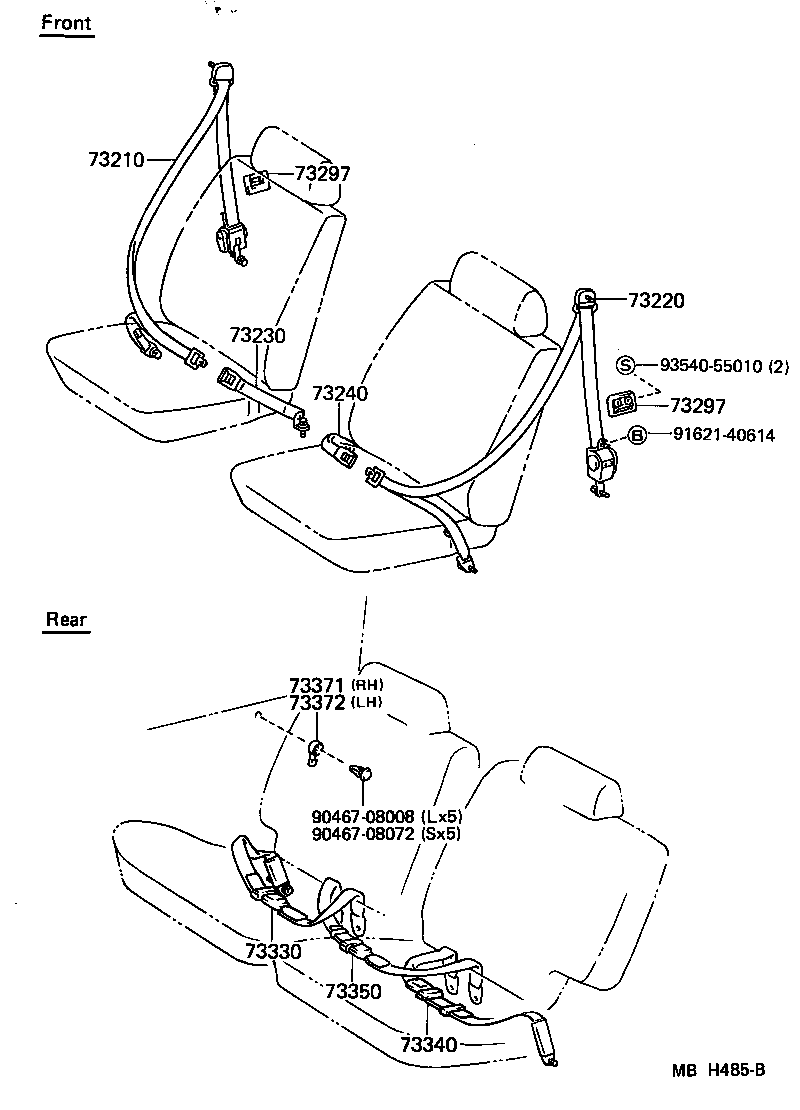

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73297 73297 73330 73340 73350 73371 73372 9046708008 9046708072 9162140614 9354055010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90K1606

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73210-90K0403

BJ7#

GRAY,GRAY

 1
73210-90K3406

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73210-90K1603

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73210-90K0406

BJ7#

BROWN,SEPIA BROWN

 1
73210-90K3403

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90K0303

BJ7#

GRAY,GRAY

 1
73220-90K0306

BJ7#

BROWN,SEPIA BROWN

 1
73220-90K0803

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73220-90K0806

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73220-90K1306

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73220-90K1303

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90K0106

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73230-90K0906

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73230-90K0103

BJ7#,LJ71

GRAY,GRAY

 1
73230-90K0903

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-90K0903

BJ7#,LJ71

GRAY,SHADOW GRAY

 1
73230-90K0103

BJ7#,LJ71

GRAY,GRAY

 1
73230-90K0906

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73230-90K0106

BJ7#,LJ71

BROWN,SEPIA BROWN

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73298-90K0006

BJ73,74

LH,BROWN,SEPIA BROWN

 1
73299-90K0003

BJ73,74

RH,GRAY,GRAY

 1
73298-90K0003

BJ73,74

LH,GRAY,GRAY

 1
73299-90K0006

BJ73,74

RH,BROWN,SEPIA BROWN

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73298-90K0006

BJ73,74

LH,BROWN,SEPIA BROWN

 1
73299-90K0003

BJ73,74

RH,GRAY,GRAY

 1
73298-90K0003

BJ73,74

LH,GRAY,GRAY

 1
73299-90K0006

BJ73,74

RH,BROWN,SEPIA BROWN

 1
Common parts
90467-08008
90467-08072
91621-40614
93540-55010
