BJ73V-MN (1984)
Toyota Land Cruiser S/T,H/T
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

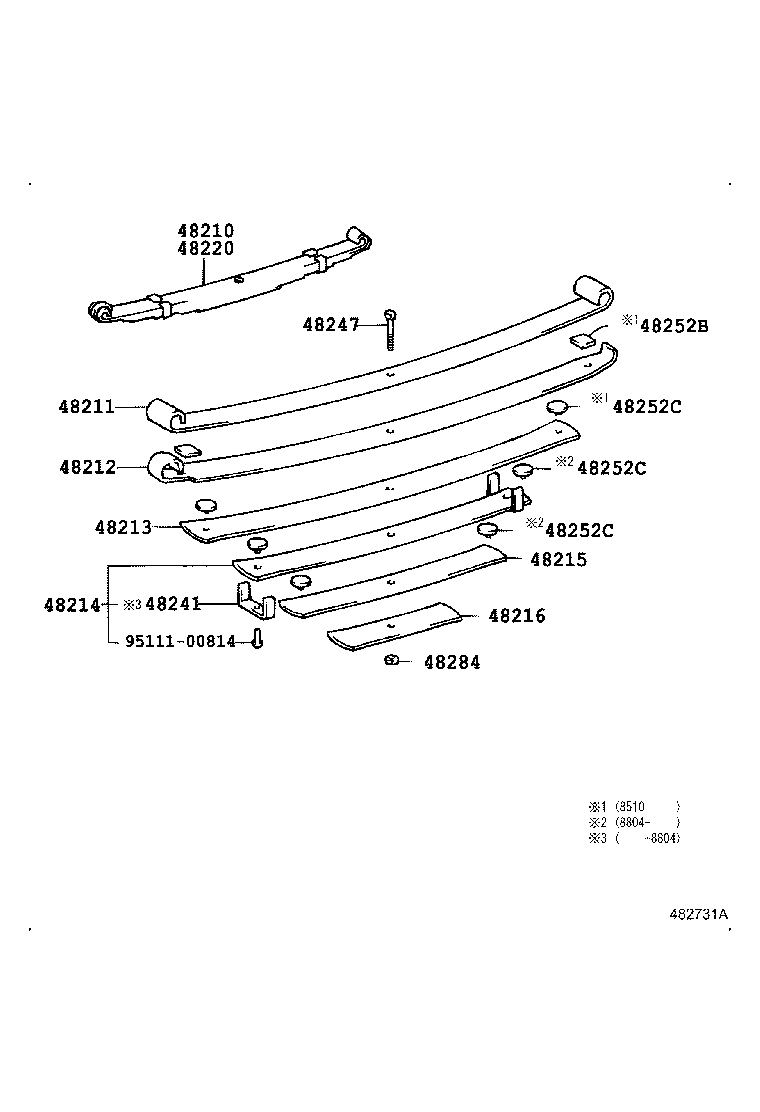

ILLUST NO. 2 OF 2(8411- )BJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60461 |
BJ7# |
1 | ||
| 48210-60720 |
BJ7# |
1 | ||
| 48210-60460 |
BJ7# |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
BJ7# |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60460 |
BJ7# |
2 | ||
| 48212-60461 |
BJ7# |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60461 |
BJ7# |
2 | ||
| 48213-60720 |
BJ7# |
2 | ||
| 48213-60460 |
BJ7# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60460 |
BJ7# |
2 | ||
| 48202-60720 |
BJ7# |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60720 |
BJ7# |
2 | ||
| 48215-60460 |
BJ7# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60460 |
BJ7# |
2 | ||
| 48216-60720 |
BJ7# |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60730 |
BJ7# |
1 | ||
| 48210-60551 |
BJ7# |
1 | ||
| 48210-60550 |
BJ7# |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48141-60200 |
BJ7# |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
BJ7# |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48153-60230 |
BJ7# |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
BJ7# |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
BJ7# |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
BJ7# |
12 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
BJ7# |
2 | ||
| Common parts | ||||
| 95111-00814 | ||||

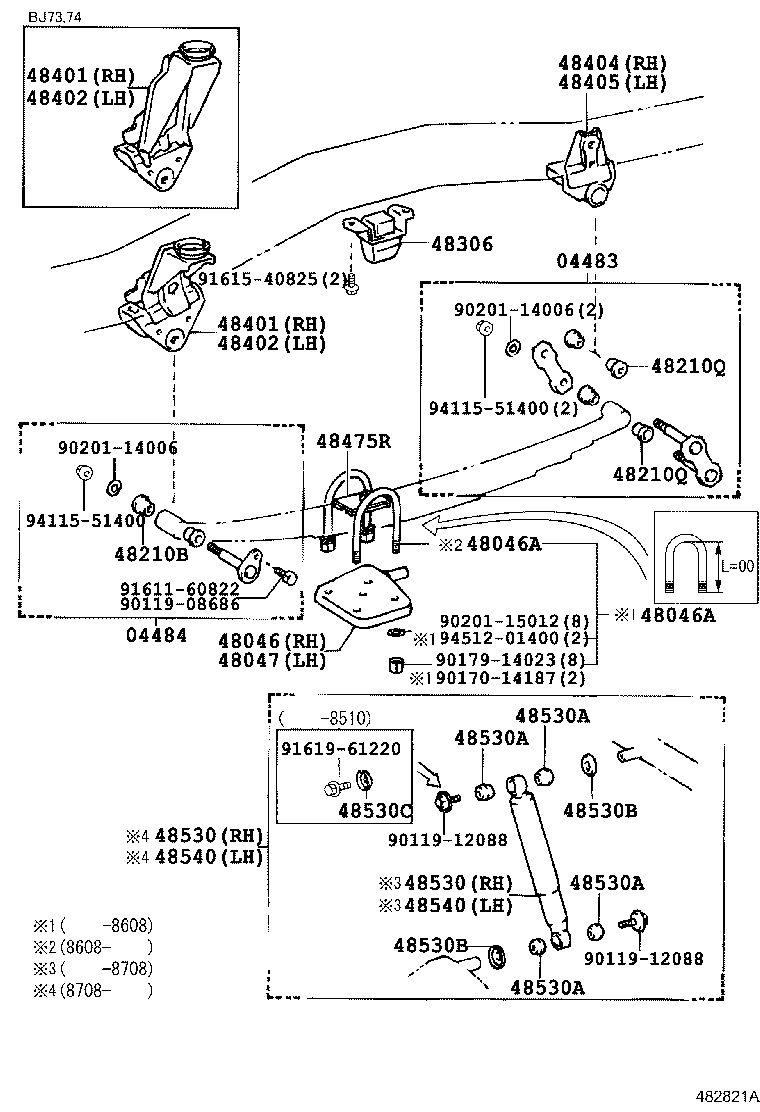

ILLUST NO. 1 OF 2(8411- )BJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60060 |
BJ7# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60010 |
BJ7# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60060 |
BJ7# |
1 | ||
| 48046-60042 |
BJ7# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14107 |
BJ7# L=175,W/DISTANCE PLATE |
2 | ||
| 90118-14160 |
BJ7# L=180,W/DISTANCE PLATE |
2 | ||
| 90117-14001 |
BJ7# 長さ=170,L=165 |
4 | ||
| 90118-14158 |
BJ7# L=165 |
4 | ||
| 90117-14177 |
BJ7# 長さ=175,L=175,W/DISTANCE PLATE |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14107 |
BJ7# L=175,W/DISTANCE PLATE |
2 | ||
| 90118-14160 |
BJ7# L=180,W/DISTANCE PLATE |
2 | ||
| 90117-14001 |
BJ7# 長さ=170,L=165 |
4 | ||
| 90118-14158 |
BJ7# L=165 |
4 | ||
| 90117-14177 |
BJ7# 長さ=175,L=175,W/DISTANCE PLATE |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60080 |
BJ7# |
1 | ||
| 48047-60060 |
BJ7# |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ7# |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
BJ7# |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
BJ7# |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
BJ7# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48404-60020 |
BJ73,74 |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48404-60020 |
BJ73,74 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48407-60020 |
BJ73,74 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48407-60020 |
BJ73,74 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-60060 |
BJ7# |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-60010 |
BJ7# |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
BJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-60140 |
BJ7# |
2 | ||
| 48531-69136 |
BJ7# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-60140 |
BJ7# |
2 | ||
| 48531-69136 |
BJ7# |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7# |
8 | ||
| 90385-19003 |
BJ7#,LJ71 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7# |
8 | ||
| 90385-19003 |
BJ7#,LJ71 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7# |
8 | ||
| 90385-19003 |
BJ7#,LJ71 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
BJ7# |
8 | ||
| 90385-19003 |
BJ7#,LJ71 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ7#,LJ71 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BJ7#,LJ71 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03015 |
BJ7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-60140 |
BJ7# |
1 | ||
| 48531-69136 |
BJ7# |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-60140 |
BJ7# |
1 | ||
| 48531-69136 |
BJ7# |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90170-14187 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 91611-60822 | ||||
| 91615-40825 | ||||
| 91619-61220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||
