BJ73V-MN (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8411- )

Click highlighted areas on diagram

diagram 04044 04445 04455A 44110 44111A 44251 9010512104 9017912085 9451102200
Part # Description Qty Price
04044 - WARM KIT, POWER STEERING
04044-60110

BJ7#

 1
04044-60070

BJ7#

 1
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-60030

BJ7#,LJ71

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-60020

BJ7#,LJ71

 1
44110 - GEAR ASSY, POWER STEERING
44110-60070

BJ7#

 1
44110-60071

BJ7#

 1
44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ7#,LJ71

 1
44251 - ARM, PITMAN
45411-60110

BJ7#

 1
Common parts
90105-12104
90179-12085
94511-02200

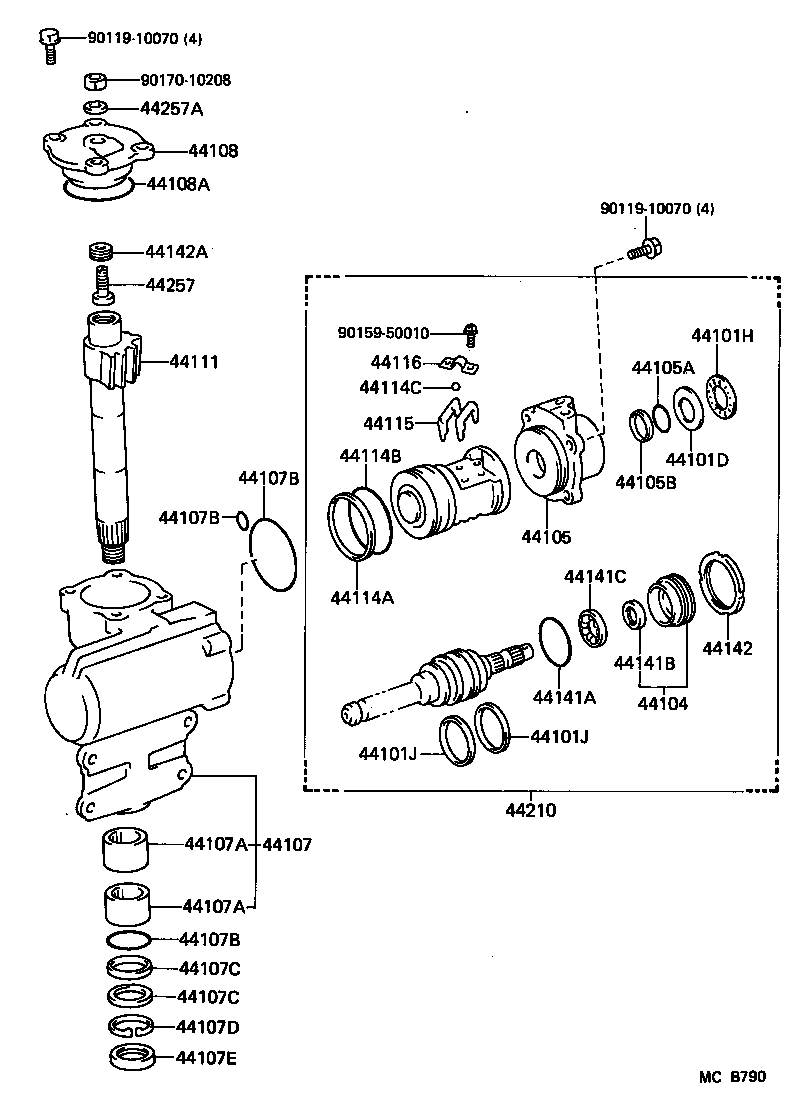

ILLUST NO. 3 OF 3(8411- )

Click highlighted areas on diagram

diagram 44101D 44101H 44101J 44101J 44104 44105 44105A 44105B 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price
44101D - WASHER, PLATE(FOR STEERING WORM)
90201-30003

BJ7#,LJ71

 1
44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)
90374-30003

BJ7#,LJ71

 1
44101J - RING(FOR STEERING WORM)
90562-48001

BJ7#,LJ71

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ7#,LJ71

 2
44104 - PLUG SUB-ASSY, ADJUSTER
44104-22011

BJ7#,LJ71

 1
44105 - HOUSING SUB-ASSY, VALVE
44105-30060

BJ7#,LJ71

 1
44105A - RING, O(FOR VALVE HOUSING)
90301-32002

BJ7#,LJ71

 1
44105B - RING(FOR VALVE HOUSING)
90562-30002

BJ7#,LJ71

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-60050

BJ7#,LJ71

 1
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003

BJ7#,LJ71

 2
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-32003

BJ7#,LJ71

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ7#,LJ71

内径=65.0,外径=70.0,OD=70,T=2.5

 1
90301-33002

BJ7#,LJ71

内径=33.7,外径=40.7,OD=40.7,T=3.5

 1
96711-19010

BJ7#,LJ71

外径=13.6,内径=9.8,OD=13.6,T=1.9

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ7#,LJ71

内径=65.0,外径=70.0,OD=70,T=2.5

 1
90301-33002

BJ7#,LJ71

内径=33.7,外径=40.7,OD=40.7,T=3.5

 1
96711-19010

BJ7#,LJ71

外径=13.6,内径=9.8,OD=13.6,T=1.9

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

BJ7#,LJ71

内径=65.0,外径=70.0,OD=70,T=2.5

 1
90301-33002

BJ7#,LJ71

内径=33.7,外径=40.7,OD=40.7,T=3.5

 1
96711-19010

BJ7#,LJ71

外径=13.6,内径=9.8,OD=13.6,T=1.9

 1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-31002

BJ7#,LJ71

内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4

 1
90562-32002

BJ7#,LJ71

内径=32,外径=40,OD=40,T=3

 1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-31002

BJ7#,LJ71

内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4

 1
90562-32002

BJ7#,LJ71

内径=32,外径=40,OD=40,T=3

 1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90521-44002

BJ7#,LJ71

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90312-32002

BJ7#,LJ71

 1
44108 - COVER SUB-ASSY, SIDE
44108-60010

BJ7#,LJ71

 1
44108A - RING, O(FOR SIDE COVER)
90301-64002

BJ7#,LJ71

 1
44111 - SHAFT, CROSS
44111-60020

BJ7#

 1
44111-60040

BJ7#,LJ71

 1
44114A - RING(FOR POWER PISTON NUT)
90562-67001

BJ7#,LJ71

 1
90562-67002

BJ7#,LJ71

 1
44114B - RING, O(FOR POWER PISTON NUT)
90301-64005

BJ7#,LJ71

 1
90301-63001

BJ7#,LJ71

 1
44114C - BALL(FOR POWER PISTON NUT)
90360-06021

BJ7#,LJ71

 44
44115 - GUIDE, BALL
44115-22020

BJ7#

 2
44115-60010

BJ7#

 2
44116 - CLAMP, BALL GUIDE
44116-60010

BJ7#

 1
44116-22020

BJ7#

 1
44141A - RING, O(FOR ADJUSTER PLUG)
90301-51001

BJ7#,LJ71

 1
44141B - SEAL, OIL(FOR ADJUSTER PLUG)
90311-19002

BJ7#,LJ71

 1
44141C - BEARING(FOR ADJUSTER PLUG)
90369-22004

BJ7#,LJ71

 1
44142 - NUT, LOCK
44142-22010

BJ7#,LJ71

 1
44142A - NUT, LOCK, NO.1
44142-22020

BJ7#,LJ71

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44120-60050

BJ7#

 1
44120-60090

BJ7#

 1
44257 - SCREW, CROSS SHAFT ADJUSTING
45357-22010

BJ7#,LJ71

 1
44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001

BJ7#,LJ71

 1
Common parts
90119-10070
90159-50010
90170-10208

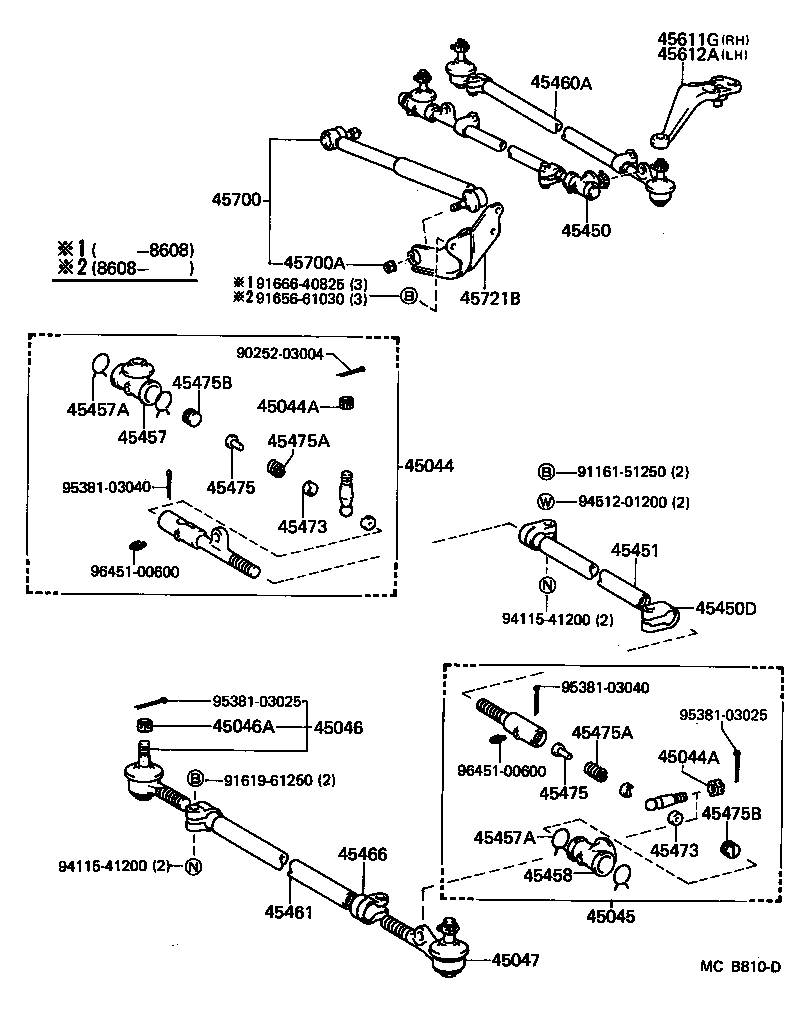

ILLUST NO. 1 OF 3(8411- )BJ7#

Click highlighted areas on diagram

diagram 45044 45044A 45044A 45045 45046 45046A 45047 45450 45450D 45451 45457 45457A 45457A 45458 45460A 45461 45466 45473 45473 45475 45475 45475A 45475A 45475B 45475B 45611G 45612A 45700 45700A 45721B 9025203004 9116151250 9161961250 9165661030 9166640825 9411541200 9411541200 9451201200 9538103025 9538103025 9538103040 9538103040 9645100600 9645100600
Part # Description Qty Price
45044 - END SUB-ASSY, STEERING RELAY ROD, RH
45044-69075

BJ7#

 1
45044-69076

BJ7#

 1
45044A - NUT, CASTLE(FOR RELAY ROD)
90171-14042

BJ7#,LJ71

 2
45044A - NUT, CASTLE(FOR RELAY ROD)
90171-14042

BJ7#,LJ71

 2
45045 - END SUB-ASSY, STEERING RELAY ROD, LH
45045-69046

BJ7#

 1
45045-69045

BJ7#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45047-69066

BJ7#,LJ71

 1
45047-69065

BJ7#,LJ71

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

BJ7#,LJ71

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69106

BJ7#

 1
45046-69105

BJ7#

 1
45450 - ROD ASSY, STEERING RELAY
45450-69075

BJ7#

 1
45450D - CLAMP, STEERING RELAY ROD END
45466-55020

BJ7#

 2
45451 - ROD, STEERING RELAY
45451-60100

BJ7#

 1
45457 - SEAL, STEERING LINK DUST, RH
45457-60010

BJ7#

 1
45457A - CLIP(FOR STEERING LINK DUST SEAL)
90467-32002

BJ7#

 4
45457A - CLIP(FOR STEERING LINK DUST SEAL)
90467-32002

BJ7#

 4
45458 - SEAL, STEERING LINK DUST, LH
45458-60010

BJ7#

 1
45460A - ROD ASSY, TIE
45460-69125

BJ7#

 1
45461 - ROD, STEERING TIE
45461-60100

BJ7#

 1
45466 - CLAMP, TIE ROD END
45466-36010

BJ7#,LJ71

 2
45473 - SEAT, BALL STUD
45473-35010

BJ7#

 4
45473 - SEAT, BALL STUD
45473-35010

BJ7#

 4
45475 - SEAT, STEERING LINK JOINT SPRING
45475-35010

BJ7#

 2
45475 - SEAT, STEERING LINK JOINT SPRING
45475-35010

BJ7#

 2
45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT)
90501-45114

BJ7#

 2
45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT)
90501-45114

BJ7#

 2
45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
90340-25001

BJ7#

 2
45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
90340-25001

BJ7#

 2
45611G - ARM, STEERING KNUCKLE, NO.1
45611-60060

BJ7#

 1
45612A - ARM, STEERING KNUCKLE, NO.2
45612-60060

BJ7#

 1
45700 - DAMPER ASSY, STEERING
45700-69025

BJ7#,LJ71

 1
45700A - NUT(FOR STEERING DAMPER)
94184-61200

BJ7#,LJ71

 2
45721B - BRACKET, STEERING DAMPER, NO.3
45721-60061

BJ7#

 1
45721-60060

BJ7#

 1
Common parts
90252-03004
91161-51250
91619-61250
91656-61030
91666-40825
94115-41200
94512-01200
95381-03025
95381-03040
96451-00600
