BJ71V-MNX (1985)
Toyota Land Cruiser S/T,H/T
Production
Oct 1985
-
Jan 1990
Engine
13BT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

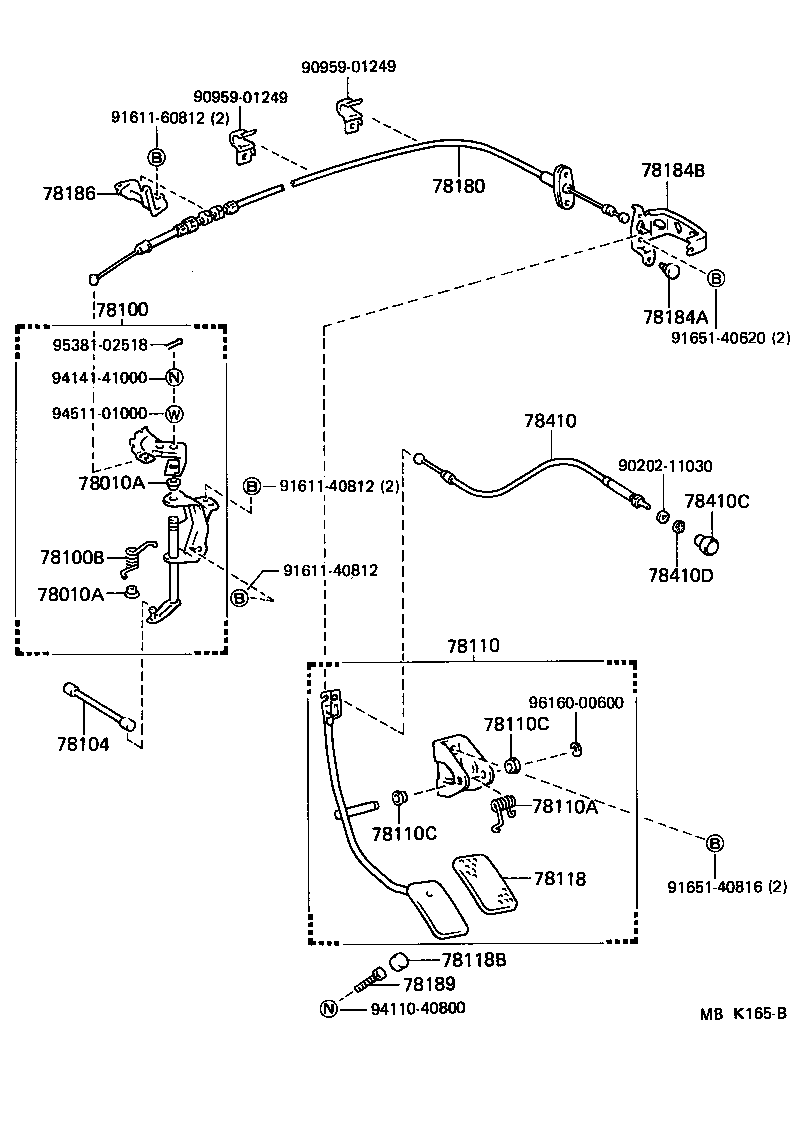

(8510-8708)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-90K01 |
BJ71,74..MTM |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K00 |
BJ7# |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29017 |
BJ7#,LJ71 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,LJ71 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,LJ71 |
2 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
BJ7#,LJ71 |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
BJ7#,LJ71 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K12 |
BJ71,74 |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7# |
1 | ||
| 90541-06008 |
BJ7#,LJ71 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ7# |
1 | ||
| 78184-90K03 |
BJ7# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90K03 |
BJ71,74 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50835 |
BJ7# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
BJ7# |
1 | ||
| 78410-90K00 |
BJ7#,LJ71 |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-90K00 |
BJ7#,LJ71 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ7#,LJ71 |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 90959-01249 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 95381-02518 | ||||
| 96160-00600 | ||||

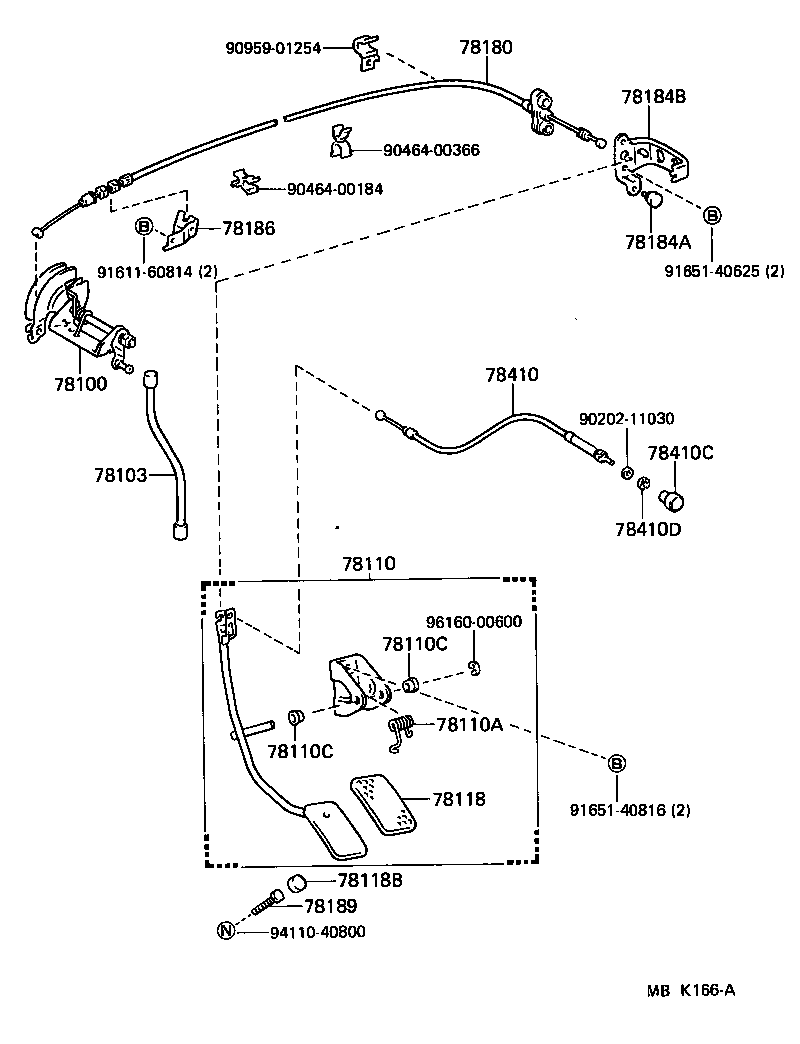

(8510- )BJ71,74
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-90K01 |
BJ71,74..MTM |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-90K00 |
BJ71,74 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90K00 |
BJ7# |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29017 |
BJ7#,LJ71 |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,LJ71 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08155 |
BJ7#,LJ71 |
2 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78111-95110 |
BJ7#,LJ71 |
1 | ||
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
BJ7#,LJ71 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90K12 |
BJ71,74 |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ7# |
1 | ||
| 90541-06008 |
BJ7#,LJ71 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-90K01 |
BJ7# |
1 | ||
| 78184-90K03 |
BJ7# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90K03 |
BJ71,74 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-50835 |
BJ7# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90K00 |
BJ7# |
1 | ||
| 78410-90K00 |
BJ7#,LJ71 |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-90K00 |
BJ7#,LJ71 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90179-11007 |
BJ7#,LJ71 |
1 | ||
| Common parts | ||||
| 90202-11030 | ||||
| 90464-00184 | ||||
| 90464-00366 | ||||
| 90959-01254 | ||||
| 91611-60814 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
