BJ70V-MR (1984)
Toyota Land Cruiser S/T,H/T

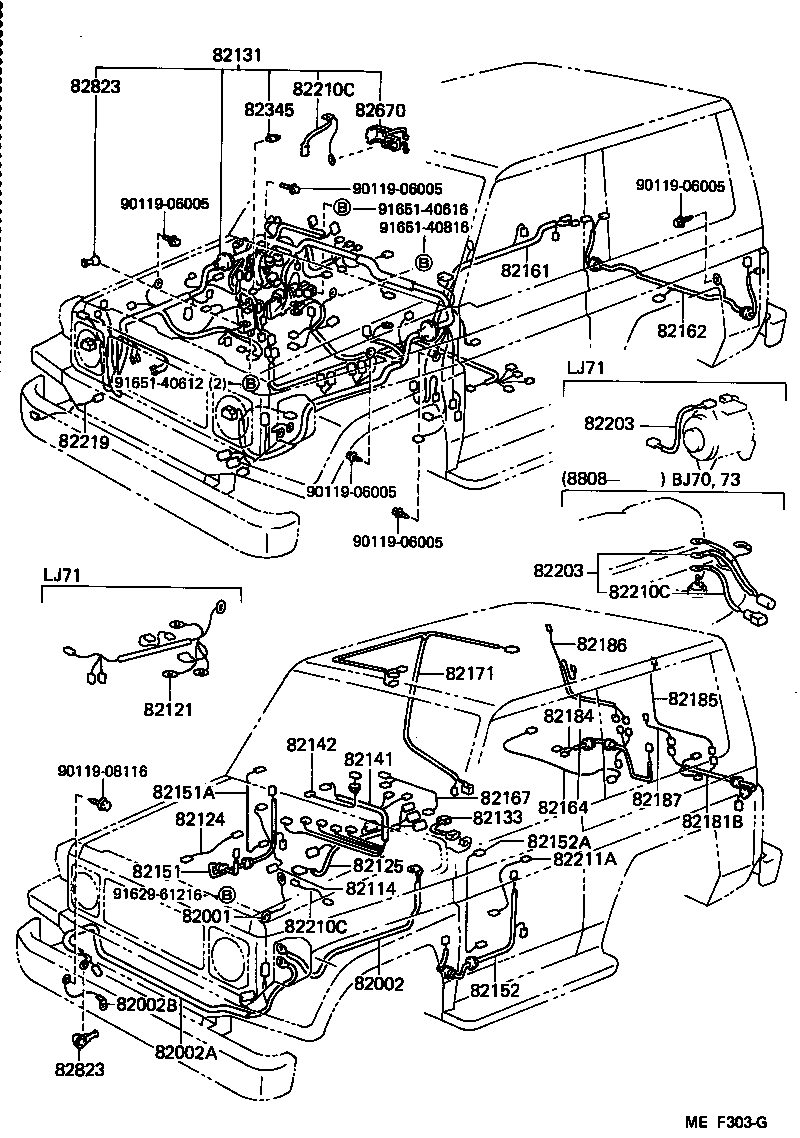

ILLUST NO. 1 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82123-90K07 |
BJ7# |
1 | ||
| 82002 - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-90K02 |
BJ7#,LJ71 |
1 | ||
| 82002A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-90K00 |
BJ7#,LJ71 |
1 | ||
| 82002B - CABLE, WINCH TO GROUND | ||||
| 90980-07175 |
BJ7#,LJ71 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-90K04 |
BJ70,73 |
1 | ||
| 82125-90K04 |
BJ7# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-90K31 |
BJ7#..HT |
1 | ||
| 82131-90K07 |
BJ7# W/*FTY,*RW,*PW OR *SNR |
1 | ||
| 82131-90K88 |
BJ70,73..STD |
1 | ||
| 82131-90K07 |
BJ7#..HT W/CLOCK,*AIC,*EW,*CLM OR *HC |
1 | ||
| 82131-90K89 |
BJ70,73 W/CLINOMETER OR THERMOMETER |
1 | ||
| 82131-90L52 |
BJ70,73..STD |
1 | ||
| 82131-90L53 |
BJ70,73 W/CLINOMETER OR THERMOMETER |
1 | ||
| 82131-90321 |
BJ70,73 W/CLINOMETER OR THERMOMETER |
1 | ||
| 82131-90L59 |
BJ70,73..STD |
1 | ||
| 82131-90070 |
BJ70,73..STD |
1 | ||
| 82131-90320 |
BJ70,73..STD |
1 | ||
| 82131-90L60 |
BJ70,73 W/CLINOMETER OR THERMOMETER |
1 | ||
| 82131-90071 |
BJ70,73 W/CLINOMETER OR THERMOMETER |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-90K00 |
BJ7#,LJ71 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-90K07 |
BJ7#,LJ71 W/*RWD,*RW OR CLOCK |
1 | ||
| 82141-90K08 |
BJ70,73..STD |
1 | ||
| 82141-90K18 |
BJ70,73..STD W/CLOCK |
1 | ||
| 82141-90K19 |
BJ7#,LJ71 W/*RWD,*RW OR CLOCK |
1 | ||
| 82141-90K19 |
BJ70,73..HT..STD W/*RWD OR W/*RWD & W/CLOCK |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-90K02 |
BJ7#,LJ71 W/THERMOMETER |
1 | ||
| 82142-90K01 |
BJ7#,LJ71 W/CLINOMETER |
1 | ||
| 82142-90K00 |
BJ7# |
1 | ||
| 82142-90K05 |
BJ7#,LJ71 W/THERMOMETER |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-90K20 |
BJ70,71,LJ71 |
1 | ||
| 82161-90K46 |
BJ70,71,LJ71..LX,LX5,STD W/ALTI METER & THERMO METER |
1 | ||
| 82161-90K45 |
BJ70,71,LJ71 W/SUN ROOF OR RR HEATER |
1 | ||
| 82161-90K14 |
BJ70 |
1 | ||
| 82161-90K21 |
BJ70,71,LJ71 W/SUN ROOF OR RR HEATER |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90K11 |
BJ7#..HT W/*RWD |
1 | ||
| 82162-90K04 |
BJ7# |
1 | ||
| 82162-90K41 |
BJ70,73..STD |
1 | ||
| 82162-90K20 |
BJ7# W/*RWD |
1 | ||
| 82162-90K18 |
BJ70,73..STD |
1 | ||
| 82162-90K35 |
BJ70,73..STD |
1 | ||
| 82162-90K20 |
BJ7#..HT |
1 | ||
| 82162-90K44 |
BJ7#..HT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82172-90K01 |
BJ70..HT W/SUN ROOF |
1 | ||
| 82171-90K04 |
BJ70,71,LJ71..HT,WG |
1 | ||
| 82181B - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-90K08 |
BJ7# |
1 | ||
| 82183-90K07 |
BJ7#..HT W/*RWD |
1 | ||
| 82183-90K04 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 82183-90K00 |
BJ7#..HT W/*RWD |
1 | ||
| 82183-90K01 |
BJ7# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90K00 |
BJ7#..HT W/*RW |
1 | ||
| 82184-90K03 |
BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) W/*RW |
1 | ||
| 82184-90K01 |
BJ7#..HT W/*RWD |
1 | ||
| 82184-90K07 |
BJ7#..HT W/*RWD |
1 | ||
| 82184-90K04 |
BJ70,73..HT..STD W/*RWD(W/O *RW) |
1 | ||
| 82184-90K03 |
BJ70,73..HT..STD W/*RWD(W/O *RW) |
1 | ||
| 82184-90K06 |
BJ7#..HT W/*RW |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90K00 |
BJ7#,LJ71..HT,WG |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-90K00 |
BJ7#,LJ71..HT,WG |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-90K00 |
BJ7#,LJ71..HT,WG |
1 | ||
| 82187-90K00 |
BJ7#,LJ71 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K07 |
BJ70,73 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K07 |
BJ70,73 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08232 |
BJ7#,LJ71 ﾊﾞｯﾃﾘ,BATTERY |
1 | ||
| 90982-08233 |
BJ7# |
1 | ||
| 90982-08206 |
BJ70,73 GLOW RESISTER,GLOW RESISTER |
1 | ||
| 90982-08236 |
BJ70,73 BATTERY |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08232 |
BJ7#,LJ71 ﾊﾞｯﾃﾘ,BATTERY |
1 | ||
| 90982-08233 |
BJ7# |
1 | ||
| 90982-08206 |
BJ70,73 GLOW RESISTER,GLOW RESISTER |
1 | ||
| 90982-08236 |
BJ70,73 BATTERY |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08232 |
BJ7#,LJ71 ﾊﾞｯﾃﾘ,BATTERY |
1 | ||
| 90982-08233 |
BJ7# |
1 | ||
| 90982-08206 |
BJ70,73 GLOW RESISTER,GLOW RESISTER |
1 | ||
| 90982-08236 |
BJ70,73 BATTERY |
1 | ||
| 82211A - WIRE, REAR HEATER | ||||
| 87484-90K00 |
BJ7#,LJ71 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90K00 |
BJ7# |
1 | ||
| 82219-90K02 |
BJ7# W/WINCH |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ7#,LJ71 |
2 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K00 |
BJ7#,LJ71 |
1 | ||
| 82670-90K01 |
BJ70,73 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
BJ70,73 ALTERNATOR |
1 | ||
| 82823-90300 |
BJ7#,LJ71 MAGNET SW.(WINCH) |
1 | ||
| 82823-12020 |
BJ7#,LJ71 ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
BJ70,73 ALTERNATOR |
1 | ||
| 82823-90300 |
BJ7#,LJ71 MAGNET SW.(WINCH) |
1 | ||
| 82823-12020 |
BJ7#,LJ71 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 91629-61216 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||

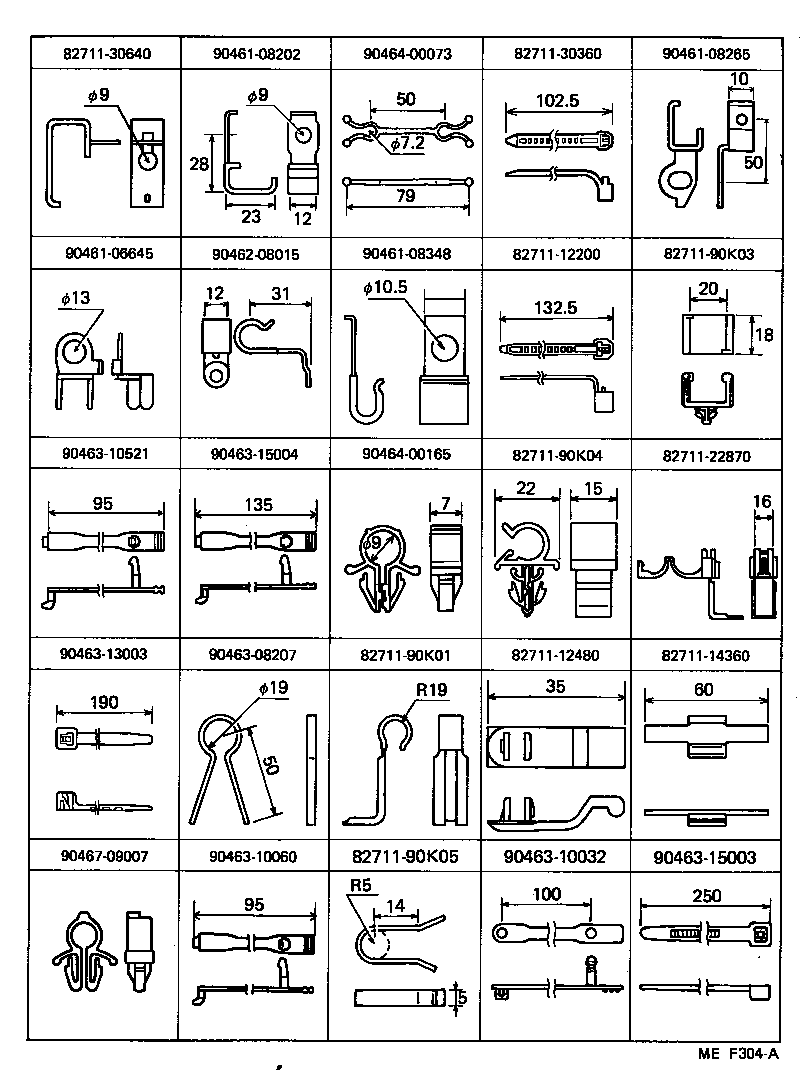

ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14360 | ||||
| 82711-22870 | ||||
| 82711-30360 | ||||
| 82711-30640 | ||||
| 82711-90K01 | ||||
| 82711-90K03 | ||||
| 82711-90K04 | ||||
| 82711-90K05 | ||||
| 90461-06645 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08348 | ||||
| 90462-08015 | ||||
| 90463-08207 | ||||
| 90463-10032 | ||||
| 90463-10060 | ||||
| 90463-10521 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15004 | ||||
| 90464-00073 | ||||
| 90464-00165 | ||||
| 90467-09007 | ||||

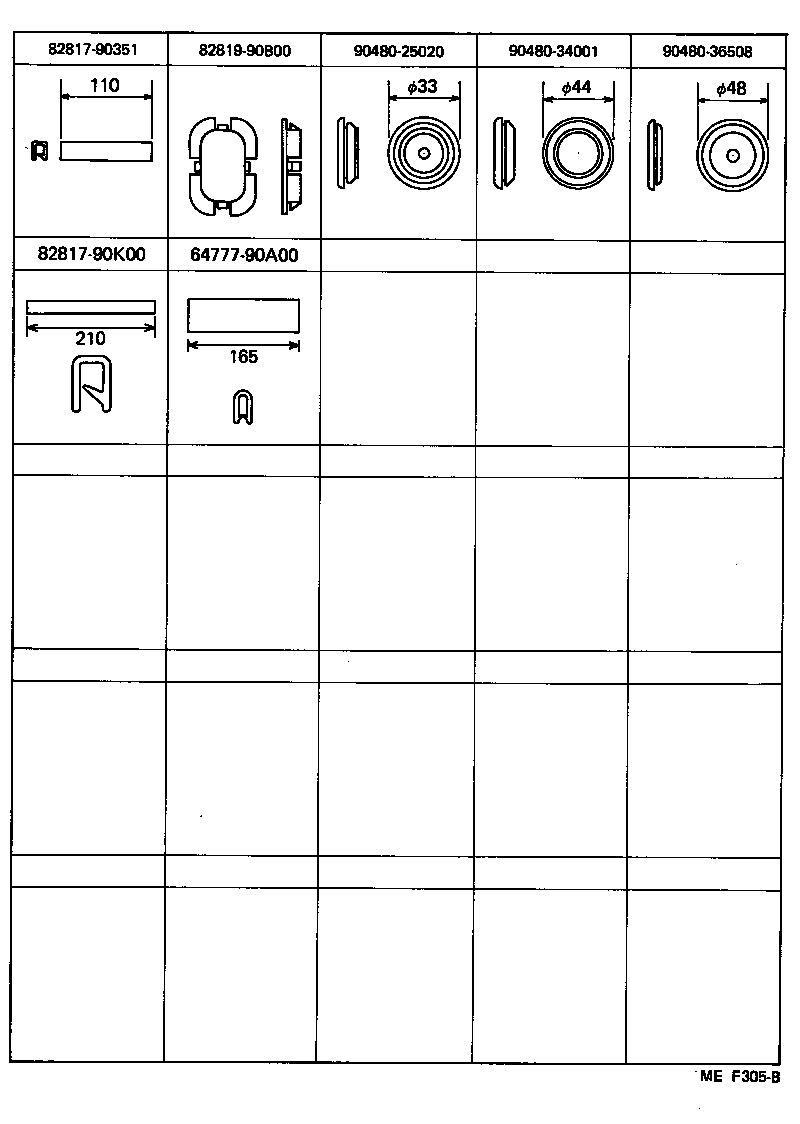

ILLUST NO. 3 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 82817-90351 | ||||
| 82817-90K00 | ||||
| 82819-90B00 | ||||
| 90480-25020 | ||||
| 90480-34001 | ||||
| 90480-36508 | ||||

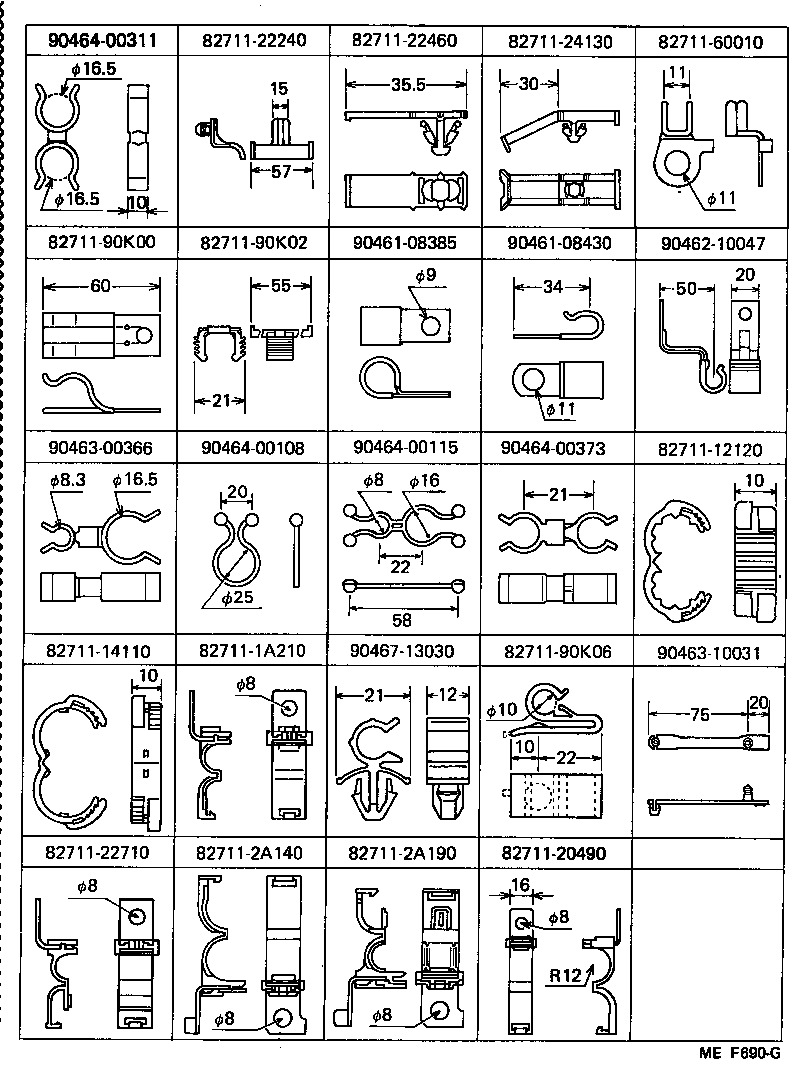

ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-20490 | ||||
| 82711-22240 | ||||
| 82711-22460 | ||||
| 82711-22710 | ||||
| 82711-24130 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-60010 | ||||
| 82711-90K00 | ||||
| 82711-90K02 | ||||
| 82711-90K06 | ||||
| 90461-08385 | ||||
| 90461-08430 | ||||
| 90462-10047 | ||||
| 90463-00366 | ||||
| 90463-10031 | ||||
| 90464-00108 | ||||
| 90464-00115 | ||||
| 90464-00311 | ||||
| 90464-00373 | ||||
| 90467-13030 | ||||
