BJ70V-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

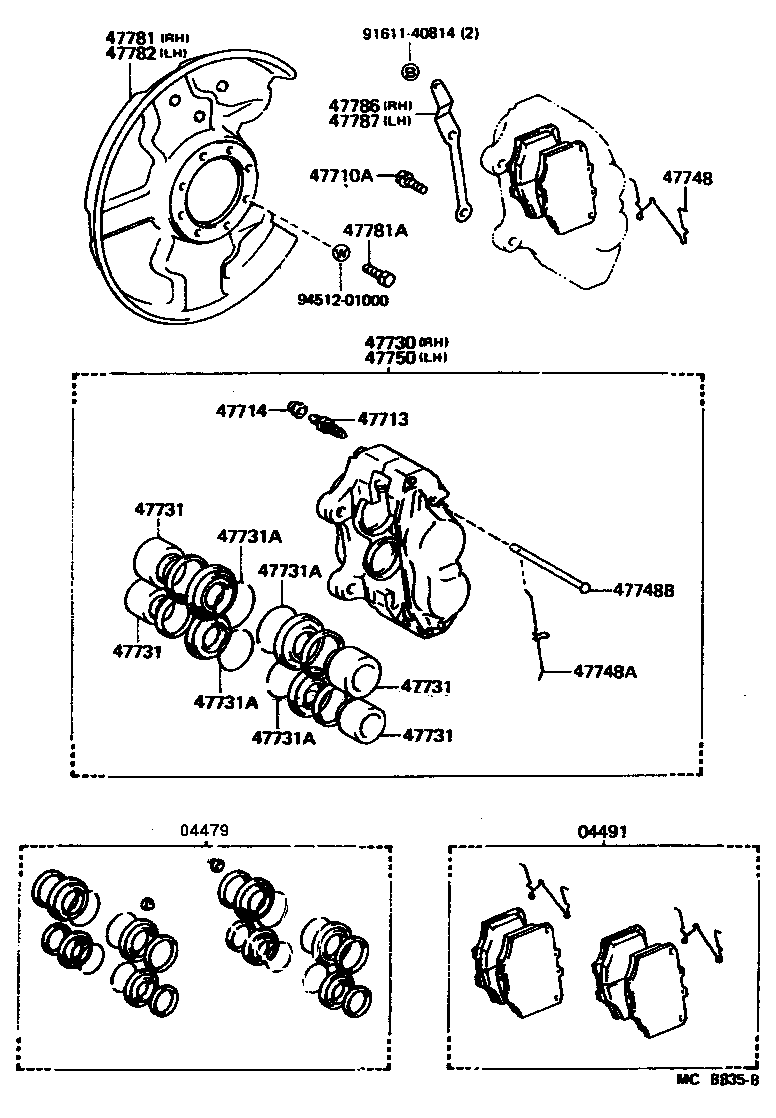

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47781A 47782 47786 47787 9161140814 9451201000
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

BJ7#,LJ71

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-60010

BJ7#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12060

BJ7#,LJ71

*12−1.25PX38−23

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

BJ7#,LJ71

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BJ7#,LJ71

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60021

BJ7#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ7#,LJ71

OD=42.82

 4
47732-30010

BJ7#,LJ71

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ7#,LJ71

OD=42.82

 4
47732-30010

BJ7#,LJ71

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ7#,LJ71

OD=42.82

 4
47732-30010

BJ7#,LJ71

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ7#,LJ71

OD=42.82

 4
47732-30010

BJ7#,LJ71

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ7#,LJ71

PISTON OD=33.93

 4
90522-48044

BJ7#,LJ71

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ7#,LJ71

PISTON OD=33.93

 4
90522-48044

BJ7#,LJ71

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ7#,LJ71

PISTON OD=33.93

 4
90522-48044

BJ7#,LJ71

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ7#,LJ71

PISTON OD=33.93

 4
90522-48044

BJ7#,LJ71

PISTON OD=42.82

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

BJ7#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

BJ7#,LJ71

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

BJ7#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60021

BJ7#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-60020

BJ7#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-10439

BJ7#,LJ71

 16
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-60020

BJ7#

 1
47786 - REINFORCEMENT, DUST COVER, RH
47786-60020

BJ7#,LJ71

 1
47787 - REINFORCEMENT, DUST COVER, LH
47787-60020

BJ7#,LJ71

 1
Common parts
91611-40814
94512-01000

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35170

BJ7#,LJ71

ﾏｰｸ ADVICS PS509

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

BJ7#,LJ71

 1
