Toyota Land cruiser s/t,h/t BJ70 MANIFOLD

BJ70V-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990

Engine 3B

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

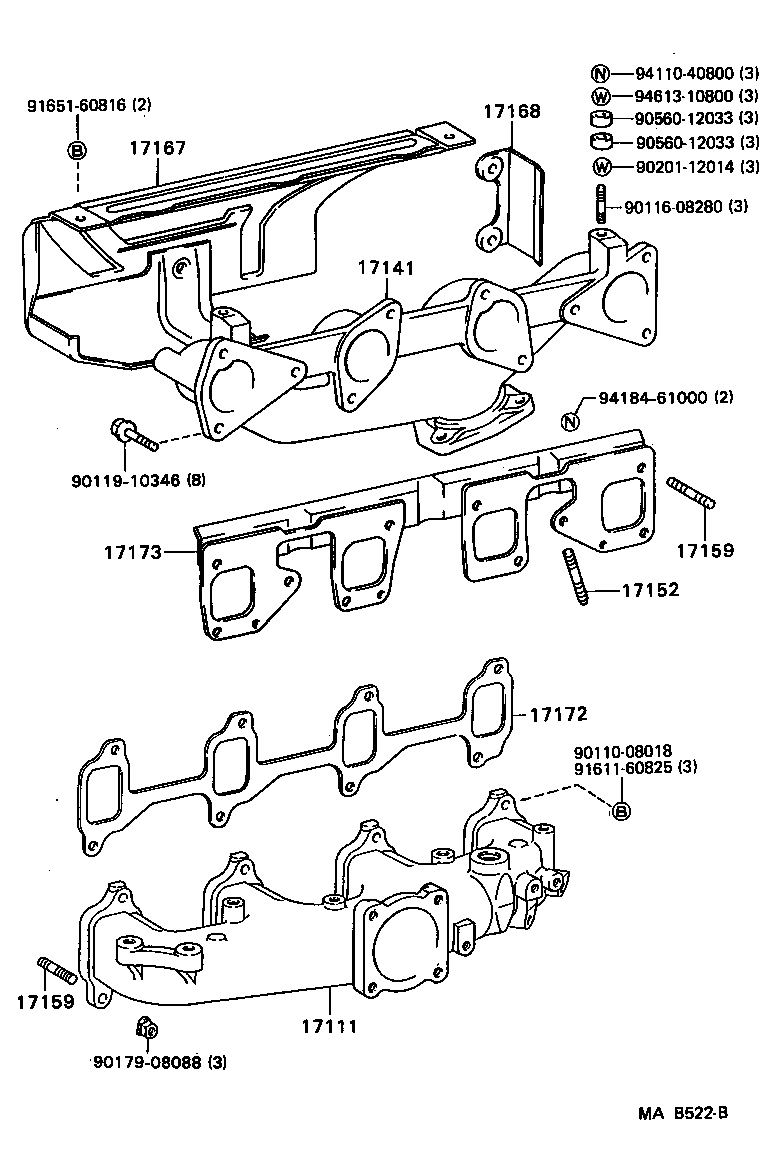

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-56130	3B..BJ70,73	11/1984 - 01/1990	1
17141 - MANIFOLD, EXHAUST
17141-56050	3B..BJ70,73	11/1984 - 08/1988	1
17141-56060	3B..BJ70,73	08/1988 - 01/1990	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	13BT,3B..BJ7#	05/1987 - 01/1990	3
90116-10056	13BT,3B..BJ7#	11/1984 - 05/1987	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	13BT,3B..BJ7# INTAKE MANIFOLD	11/1984 - 01/1990	5
90116-10098	13BT,3B..BJ7# EXHAUST MANIFOLD	11/1984 - 01/1990	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	13BT,3B..BJ7# INTAKE MANIFOLD	11/1984 - 01/1990	5
90116-10098	13BT,3B..BJ7# EXHAUST MANIFOLD	11/1984 - 01/1990	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56022	3B..BJ70,73	11/1984 - 08/1987	1
17167-56040	3B..BJ70,73	08/1988 - 01/1990	1
17167-56023	3B..BJ70,73	08/1987 - 08/1988	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-58022	3B..BJ70,73	08/1987 - 08/1988	1
17168-58021	3B..BJ70,73	11/1984 - 08/1987	1
17168-56010	3B..BJ70,73	08/1988 - 01/1990	1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010	13BT,3B..BJ7#	08/1988 - 01/1990	1
17172-56022	13BT,3B..BJ7#	11/1984 - 08/1988	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010	13BT,3B..BJ7#	11/1984 - 08/1988	1
17173-56040	3B..BJ70,73	08/1988 - 01/1990	1
Common parts
90119-10346
90179-08088
91611-60825
91651-60816
91651-61016
94184-61000

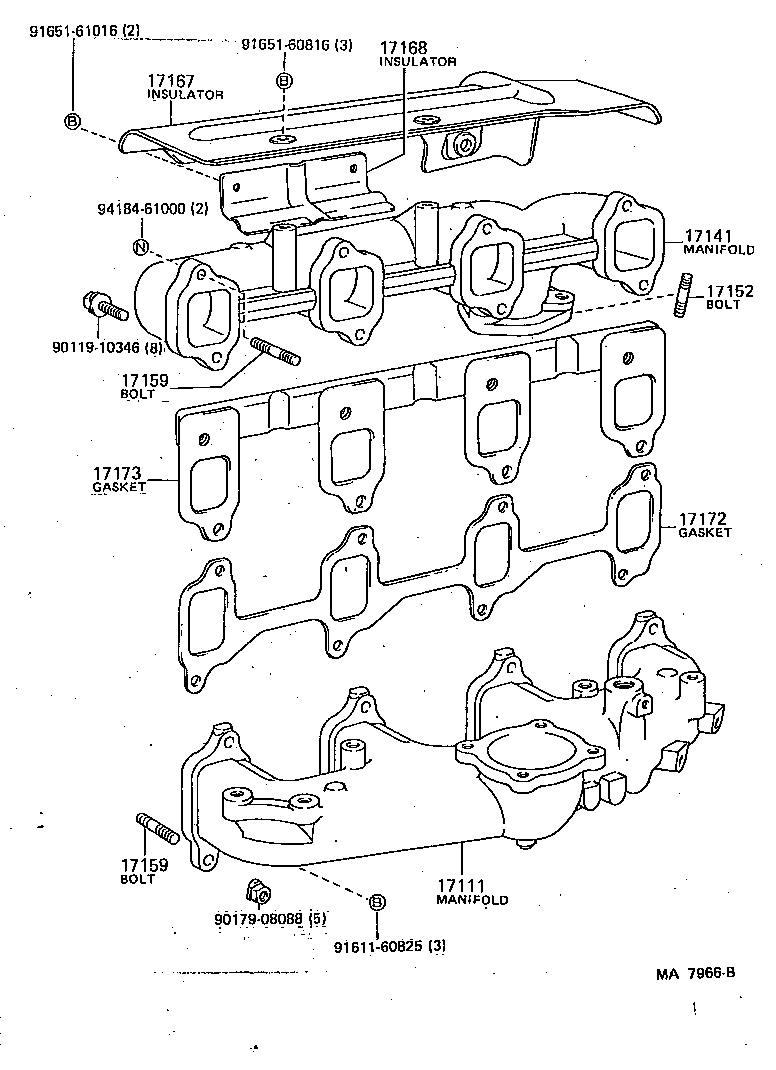

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-56130	3B..BJ70,73	11/1984 - 01/1990	1
17141 - MANIFOLD, EXHAUST
17141-56050	3B..BJ70,73	11/1984 - 08/1988	1
17141-56060	3B..BJ70,73	08/1988 - 01/1990	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	13BT,3B..BJ7#	05/1987 - 01/1990	3
90116-10056	13BT,3B..BJ7#	11/1984 - 05/1987	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	13BT,3B..BJ7# INTAKE MANIFOLD	11/1984 - 01/1990	5
90116-10098	13BT,3B..BJ7# EXHAUST MANIFOLD	11/1984 - 01/1990	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	13BT,3B..BJ7# INTAKE MANIFOLD	11/1984 - 01/1990	5
90116-10098	13BT,3B..BJ7# EXHAUST MANIFOLD	11/1984 - 01/1990	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56022	3B..BJ70,73	11/1984 - 08/1987	1
17167-56040	3B..BJ70,73	08/1988 - 01/1990	1
17167-56023	3B..BJ70,73	08/1987 - 08/1988	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-58022	3B..BJ70,73	08/1987 - 08/1988	1
17168-58021	3B..BJ70,73	11/1984 - 08/1987	1
17168-56010	3B..BJ70,73	08/1988 - 01/1990	1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-56010	13BT,3B..BJ7#	08/1988 - 01/1990	1
17172-56022	13BT,3B..BJ7#	11/1984 - 08/1988	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58010	13BT,3B..BJ7#	11/1984 - 08/1988	1
17173-56040	3B..BJ70,73	08/1988 - 01/1990	1
Common parts
90110-08018
90116-08280
90119-10346
90179-08088
90201-12014
90560-12033
91611-60825
91651-60816
94110-40800
94184-61000
94613-10800
