BJ70V-MN (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

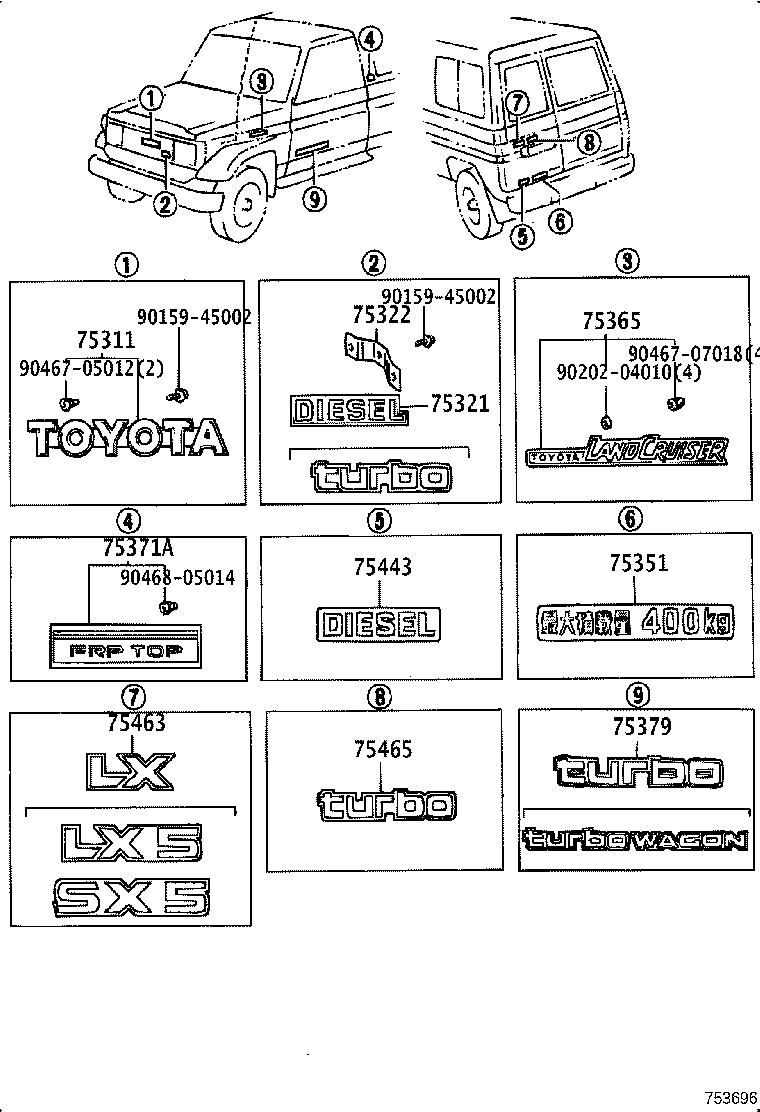

Click highlighted areas on diagram

diagram 75311 75321 75322 75351 75365 75371A 75379 75443 75463 75465 9015945002 9015945002 9020204010 9046705012 9046707018 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-90K00

BJ7#,LJ71

TOYOTA

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75312-90K00

BJ70,73

DIESEL,DIESEL

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75318-90K00

BJ7#,LJ71

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-90K01

BJ7#

400KG,400KG

 1
75365 - EMBLEM, FRONT FENDER
75370-90A02

BJ7#,LJ71

LAND CRUSER

 2
75443 - PLATE, BACK DOOR NAME, NO.3
75450-90K00

BJ7#,LJ71

DIESEL,DIESEL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75441-90K00

BJ7#..LX

LX,LX

 1
Common parts
90159-45002
90202-04010
90467-05012
90467-07018
90468-05014
