BJ70V-MN (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

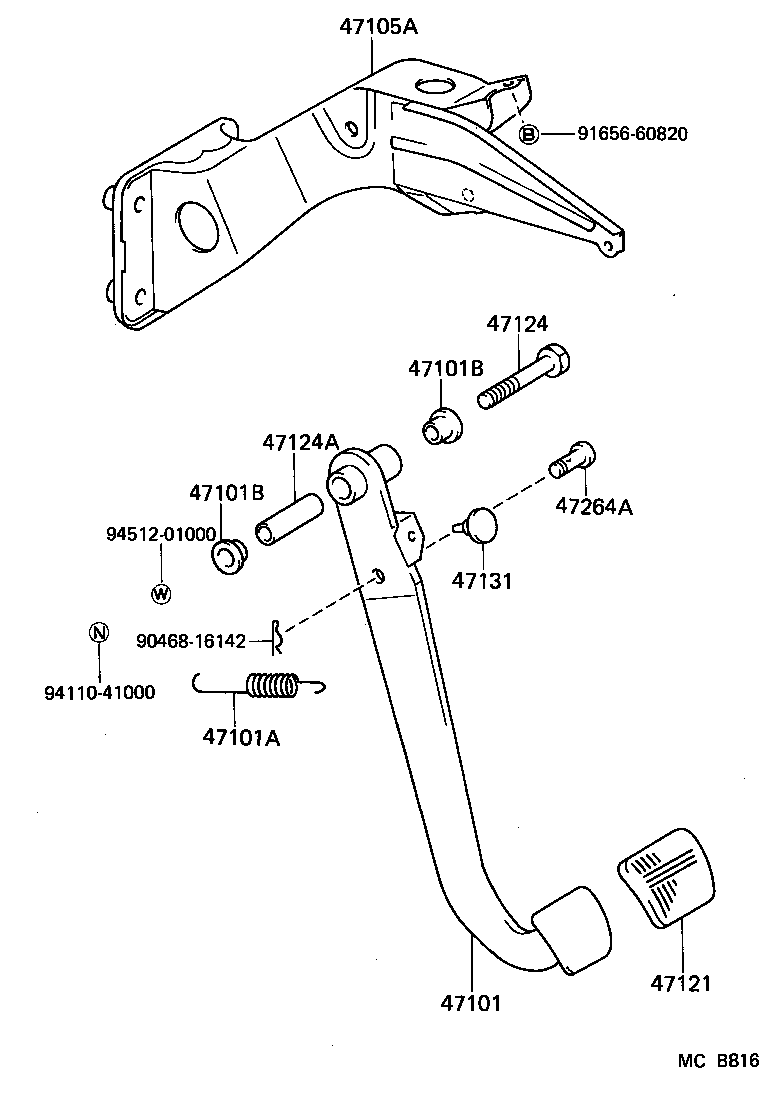

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47105A 47121 47124 47124A 47131 47264A 9046816142 9165660820 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60100

BJ7#,LJ71..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12022

BJ7#,LJ71

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ7#,LJ71

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ7#,LJ71

 2
47105A - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-90K00

BJ7#,LJ71

 1
47121 - PAD, BRAKE PEDAL
31321-14020

BJ7#,LJ71..MTM

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

BJ7#,LJ71

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BJ7#,LJ71

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

BJ7#,LJ71

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

BJ7#,LJ71

 1
Common parts
90468-16142
91656-60820
94110-41000
94512-01000
