BJ70V-MN (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

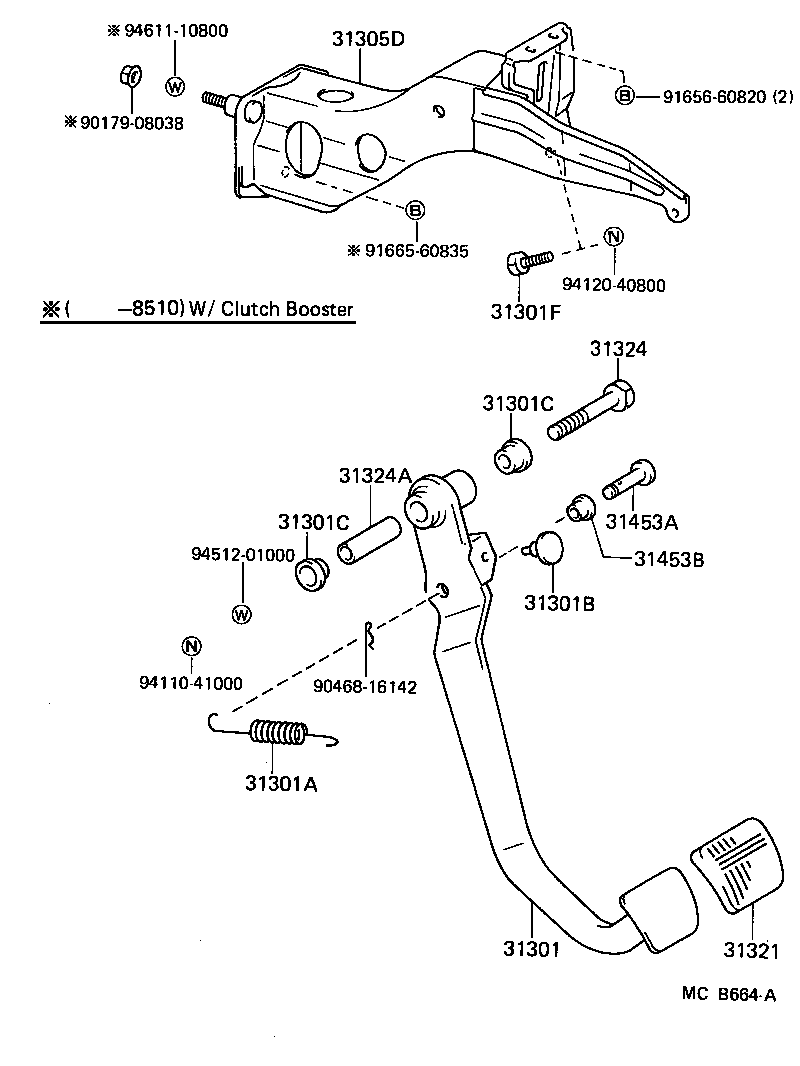

ILLUST NO. 1 OF 2(8411-8510) ; (8510- )STD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9017908038 9046816142 9165660820 9166560835 9411041000 9412040800 9451201000 9461110800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60110

BJ7#..MTM

W/CLUTCH BOOSTER

 1
31301-60090

BJ7#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14015

BJ7#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ7#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,LJ71..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,LJ71..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

BJ7#,LJ71..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K02

BJ7#..MTM

W/CLUTCH BOOSTER

 1
55107-90K00

BJ7#

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

BJ7#,LJ71..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10131

BJ7#..MTM

W/CLUTCH BOOSTER

 1
91121-51070

BJ7#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10089

BJ7#..MTM

W/CLUTCH BOOSTER

 1
90387-10004

BJ7#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

BJ7#,LJ71..MTM

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BJ7#..MTM

 1
Common parts
90179-08038
90468-16142
91656-60820
91665-60835
94110-41000
94120-40800
94512-01000
94611-10800

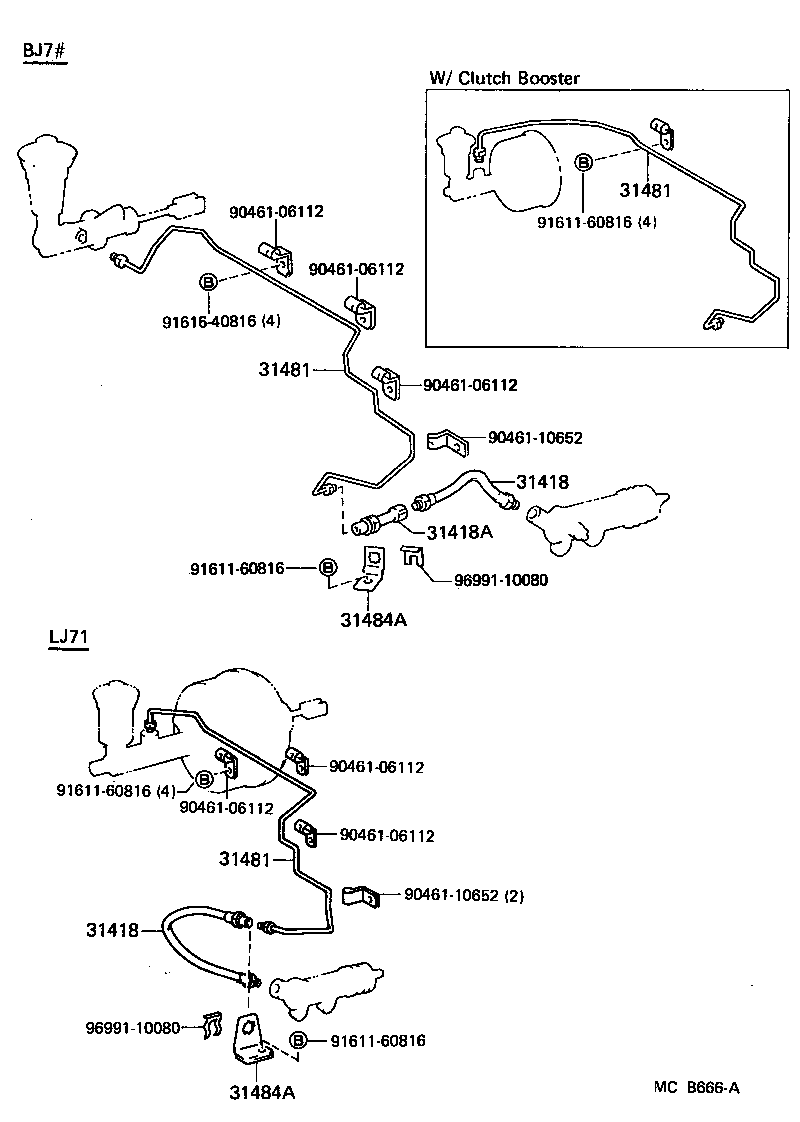

ILLUST NO. 2 OF 2(8411- )MTM

Click highlighted areas on diagram

diagram 31418 31418 31418A 31481 31481 31481 31484A 31484A 9046106112 9046106112 9046106112 9046106112 9046106112 9046106112 9046110652 9046110652 9161160816 9161160816 9161160816 9161160816 9161640816 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01020

BJ7#..MTM

 1
90931-01017

BJ7#

 1
31418 - HOSE, CLUTCH
90931-01020

BJ7#..MTM

 1
90931-01017

BJ7#

 1
31418A - UNION(FOR CLUTCH HOSE)
90404-10028

BJ7#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60410

BJ7#

W/CLUTCH BOOSTER

 1
31481-60411

BJ7#..MTM

W/CLUTCH BOOSTER

 1
31481-60430

BJ7#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60410

BJ7#

W/CLUTCH BOOSTER

 1
31481-60411

BJ7#..MTM

W/CLUTCH BOOSTER

 1
31481-60430

BJ7#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60410

BJ7#

W/CLUTCH BOOSTER

 1
31481-60411

BJ7#..MTM

W/CLUTCH BOOSTER

 1
31481-60430

BJ7#

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60050

BJ7#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60050

BJ7#..MTM

 1
Common parts
90461-06112
90461-10652
91611-60816
91616-40816
96991-10080

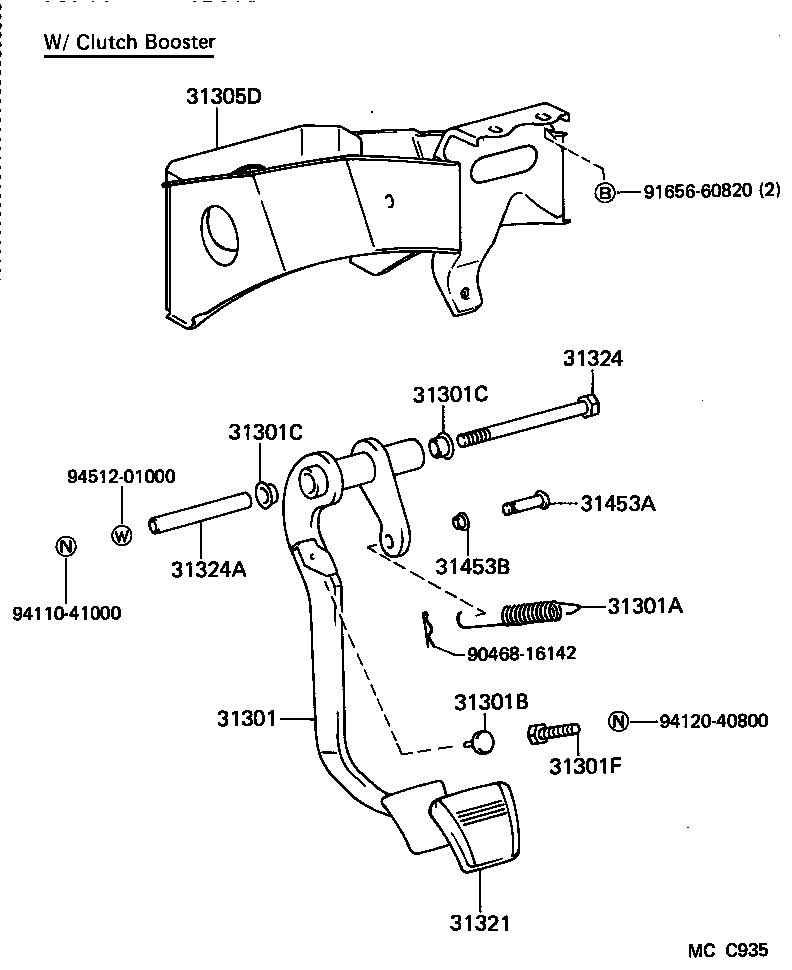

ILLUST NO. 1 OF 2(8510- )BJ7#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9046816142 9165660820 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60110

BJ7#..MTM

W/CLUTCH BOOSTER

 1
31301-60090

BJ7#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14015

BJ7#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ7#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,LJ71..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,LJ71..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

BJ7#,LJ71..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K02

BJ7#..MTM

W/CLUTCH BOOSTER

 1
55107-90K00

BJ7#

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

BJ7#,LJ71..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10131

BJ7#..MTM

W/CLUTCH BOOSTER

 1
91121-51070

BJ7#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10089

BJ7#..MTM

W/CLUTCH BOOSTER

 1
90387-10004

BJ7#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

BJ7#,LJ71..MTM

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BJ7#..MTM

 1
Common parts
90468-16142
91656-60820
94110-41000
94120-40800
94512-01000
