BJ70-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )

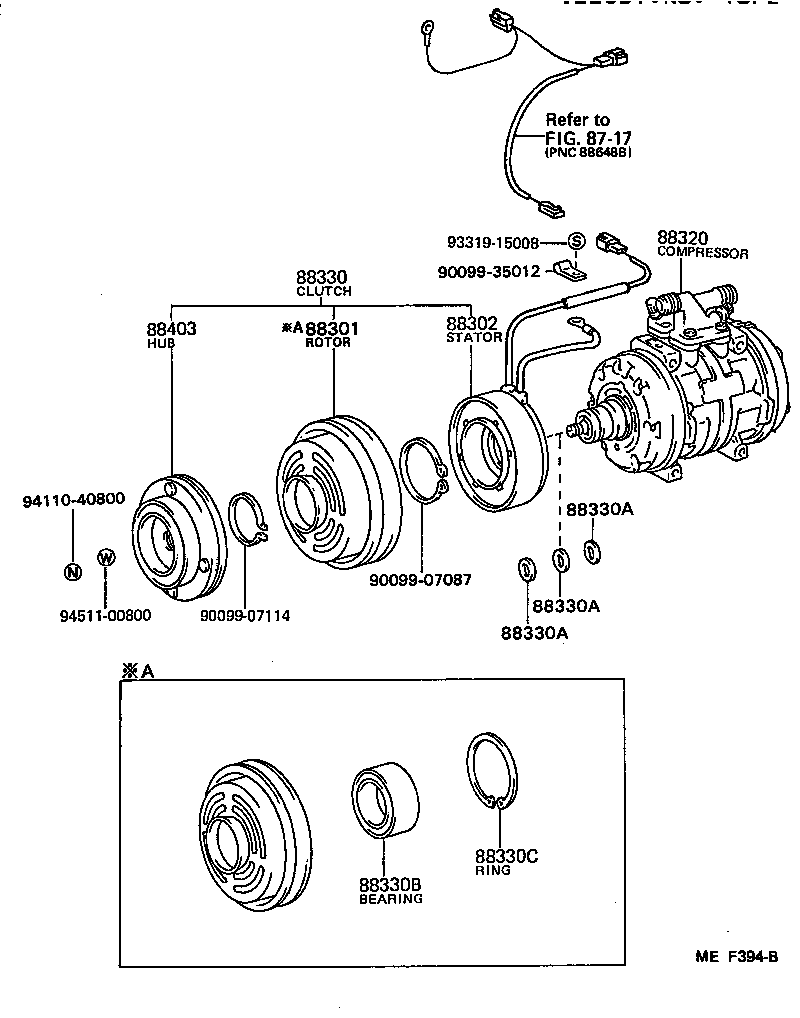

Click highlighted areas on diagram

diagram 8717 88301 88302 88320 88330 88330A 88330A 88330A 88330B 88330C 88403 9009907087 9009907114 9009935012 9331915008 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

BJ7#,LJ71

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-25020

BJ7#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60170

BJ7#

 1
88320-60171

BJ7#

 1
88320-60260

BJ70,73

 1
88330 - CLUTCH ASSY, MAGNET
88410-60070

BJ7#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01350

BJ7#

T=0.1

 1
90099-01351

BJ7#

T=0.2

 1
90099-01108

BJ7#

T=0.5

 1
88335-12050

BJ7#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01350

BJ7#

T=0.1

 1
90099-01351

BJ7#

T=0.2

 1
90099-01108

BJ7#

T=0.5

 1
88335-12050

BJ7#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01350

BJ7#

T=0.1

 1
90099-01351

BJ7#

T=0.2

 1
90099-01108

BJ7#

T=0.5

 1
88335-12050

BJ7#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10162

BJ7#

 1
90099-10133

BJ7#

 1
90099-10133

BJ7#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

BJ7#

 1
90099-07114

BJ7#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

BJ7#,LJ71

 1
88403-14030

BJ7#,LJ71

 1
Common parts
90099-07087
90099-07114
90099-35012
93319-15008
94110-40800
94511-00800
Linked diagrams
8717

ILLUST NO. 2 OF 2(8411- )BJ7#

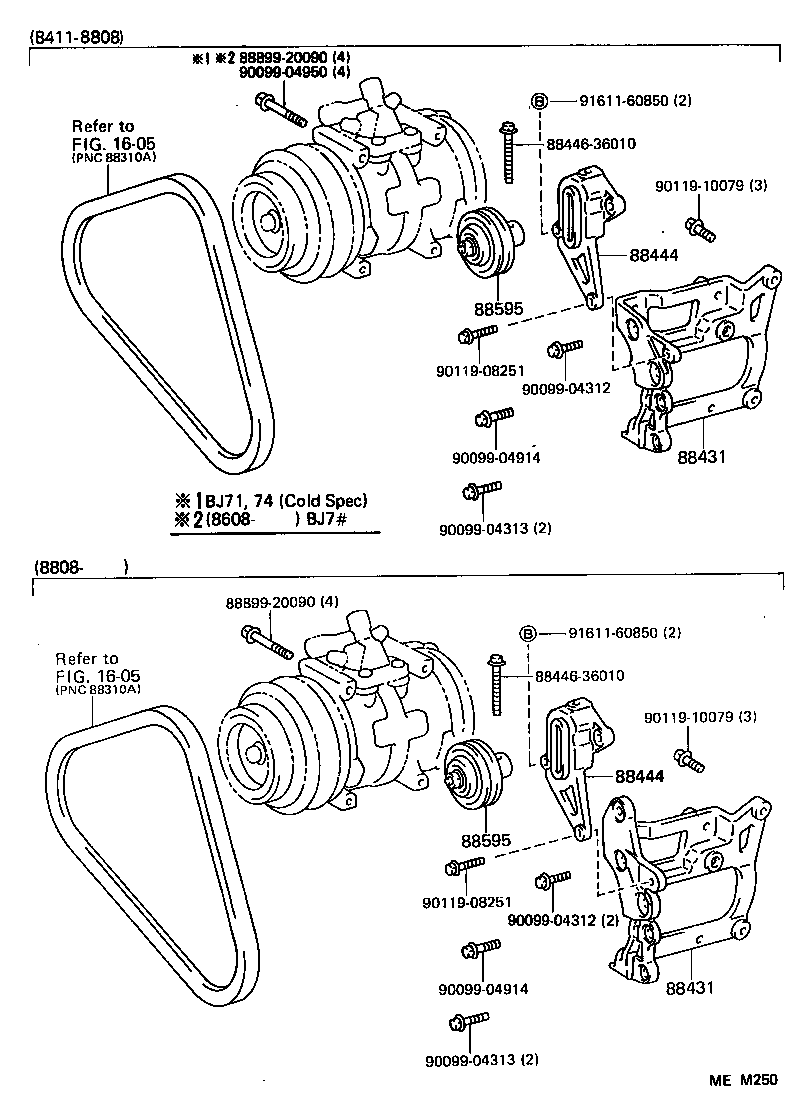

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88444 88444 8844636010 8844636010 88595 88595 8889920090 8889920090 9009904312 9009904312 9009904313 9009904313 9009904914 9009904914 9009904950 9011908251 9011908251 9011910079 9011910079 9161160850 9161160850
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36190

BJ7#

 1
88431-60090

BJ70,73

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36190

BJ7#

 1
88431-60090

BJ70,73

 1
88444 - BRACKET, IDLE PULLEY
88444-36110

BJ7#

 1
88444 - BRACKET, IDLE PULLEY
88444-36110

BJ7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12160

BJ7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12160

BJ7#

 1
Common parts
88446-36010
88899-20090
90099-04312
90099-04313
90099-04914
90099-04950
90119-08251
90119-10079
91611-60850
Linked diagrams
1605
