BJ70-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

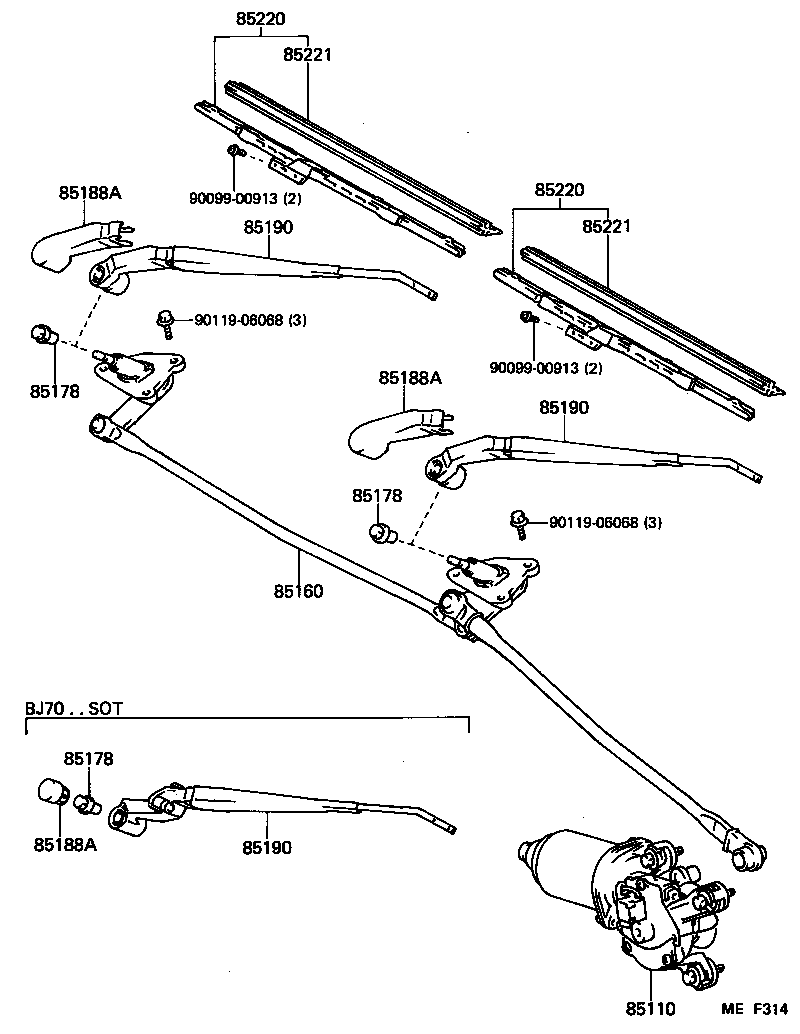

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85178 85188A 85188A 85188A 85190 85190 85190 85220 85220 85221 85221 9009900913 9009900913 9011906068 9011906068
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-90K09

BJ7#

 1
85110-90K01

BJ7#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-90K00

BJ73,74;BJ70..SOT

 1
85160-90K00

BJ70..SOT

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

BJ7#,LJ71

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

BJ7#,LJ71

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

BJ7#,LJ71

 2
85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2
85261-90K01

BJ7#,LJ71

 2
85261-90K00

BJ70..SOT

 2
85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2
85261-90K01

BJ7#,LJ71

 2
85261-90K00

BJ70..SOT

 2
85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2
85261-90K01

BJ7#,LJ71

 2
85261-90K00

BJ70..SOT

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-90K00

BJ70..SOT

LH

 1
85190-90K00

BJ70..SOT

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-90K00

BJ70..SOT

LH

 1
85190-90K00

BJ70..SOT

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-90K00

BJ70..SOT

LH

 1
85190-90K00

BJ70..SOT

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12480

BJ70..SOT

RH

 1
85220-90K00

BJ7#,LJ71

LH,WINTER BLADE

 1
85220-22340

BJ70..SOT

LH

 1
85220-14170

BJ7#,LJ71

RH,WINTER BLADE

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12480

BJ70..SOT

RH

 1
85220-90K00

BJ7#,LJ71

LH,WINTER BLADE

 1
85220-22340

BJ70..SOT

LH

 1
85220-14170

BJ7#,LJ71

RH,WINTER BLADE

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12230

BJ7#,LJ71

RH

 1
85221-89103

BJ7#,LJ71

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12230

BJ7#,LJ71

RH

 1
85221-89103

BJ7#,LJ71

LH

 1
Common parts
90099-00913
90119-06068
