BJ70-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

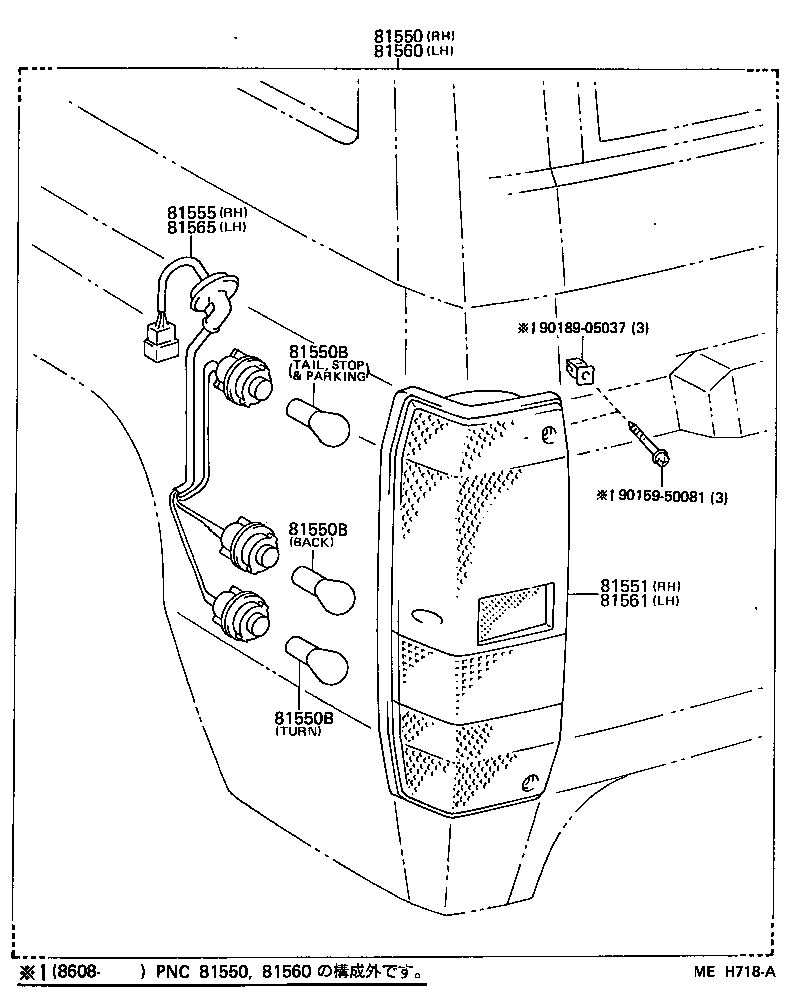

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81555 81560 81561 81565 9015950081 9018905037
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-69135

BJ7#

 1
81550-90K03

BJ7#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ7#

24V 21/5W,24V 21/5W(TAIL,STOP & PARKING)

 2
99134-11250

BJ7#

24V 25W,24V 25W(BACK & TURN)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ7#

24V 21/5W,24V 21/5W(TAIL,STOP & PARKING)

 2
99134-11250

BJ7#

24V 25W,24V 25W(BACK & TURN)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ7#

24V 21/5W,24V 21/5W(TAIL,STOP & PARKING)

 2
99134-11250

BJ7#

24V 25W,24V 25W(BACK & TURN)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-90K03

BJ7#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-90K03

BJ7#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-90K03

BJ7#

 1
81560-69135

BJ7#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-90K03

BJ7#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-90K03

BJ7#

 1
Common parts
90159-50081
90189-05037
