BJ70-MR (1984)
Toyota Land Cruiser S/T,H/T
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

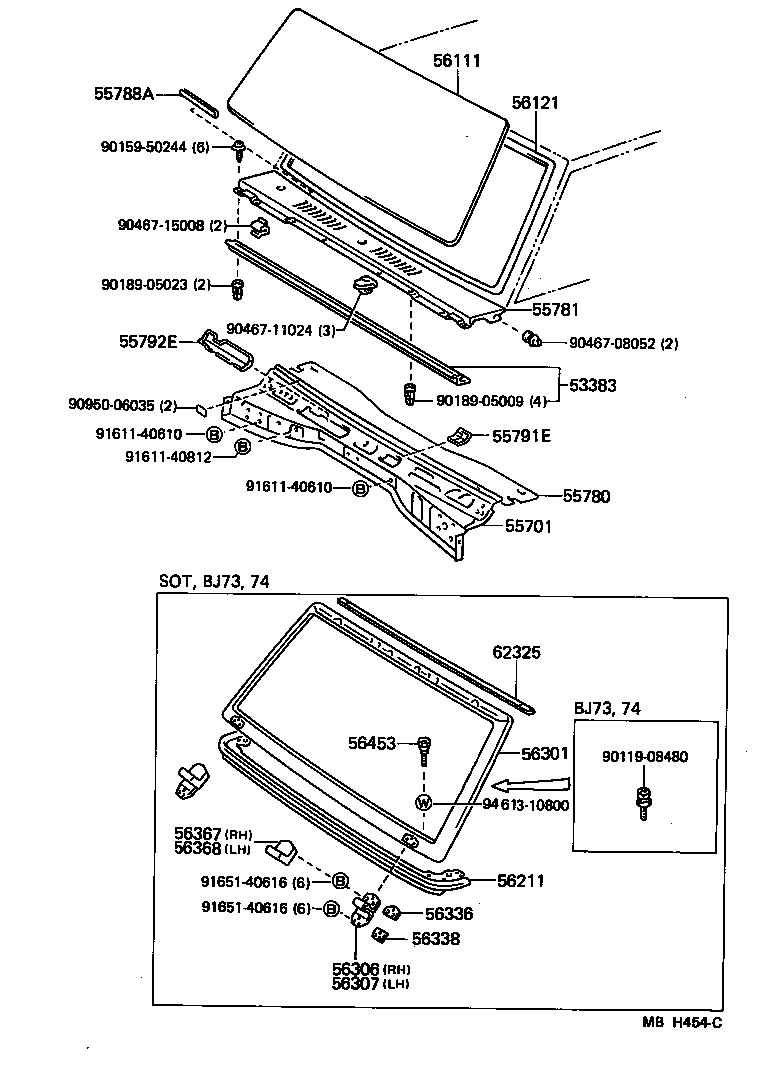

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-90K00 |
BJ7#,LJ71 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-90K48 |
BJ70..SOT |
1 | ||
| 55780 - INSULATOR ASSY, COWL TOP | ||||
| 55780-90K00 |
BJ7#,LJ71 |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55781-90K01 |
BJ70..SOT |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55788-90K00 |
BJ7#,LJ71 |
2 | ||
| 55788-90K01 |
BJ73;BJ70..SOT |
2 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55791-90K00 |
BJ7#,LJ71 |
1 | ||
| 55792E - COVER, HEATER AIR DUCT HOLE, NO.2 | ||||
| 55792-90K00 |
BJ7#,LJ71 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-90K06 |
BJ70..SOT *TZT,T=5.0,*TZT,T=5.0 |
1 | ||
| 56111-90K05 |
BJ70..SOT *ZT,T=5.0,*ZT,T=5.0 |
1 | ||
| 56111-90K07 |
BJ70..SOT *LAM,T=5.3,*LAM,T=5.3 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-90K03 |
BJ70..SOT W/MOULDING |
1 | ||
| 56121-90K01 |
BJ70..SOT |
1 | ||
| 56211 - SPACER, WINDSHIELD | ||||
| 56211-90K00 |
BJ70..SOT |
1 | ||
| 56301 - FRAME SUB-ASSY, WINDSHIELD | ||||
| 56301-90K00 |
BJ70..SOT |
1 | ||
| 56301-90K06 |
BJ70..SOT |
1 | ||
| 56301-90K12 |
BJ70..SOT |
1 | ||
| 56306 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH | ||||
| 56306-90K00 |
BJ70..SOT |
1 | ||
| 56307 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH | ||||
| 56307-90K00 |
BJ70..SOT |
1 | ||
| 56336 - PACKING, WINDSHIELD SUPPORT HINGE, UPPER | ||||
| 56336-90K00 |
BJ70..SOT |
2 | ||
| 56336-90K01 |
BJ70..SOT |
2 | ||
| 56338 - PACKING, WINDSHIELD SUPPORT HINGE, LOWER | ||||
| 56338-90K01 |
BJ70..SOT |
2 | ||
| 56338-90K00 |
BJ70..SOT |
2 | ||
| 56367 - COVER, WINDSHIELD SUPPORT HINGE, RH | ||||
| 56367-90K00 |
BJ70..SOT |
1 | ||
| 56368 - COVER, WINDSHIELD SUPPORT HINGE, LH | ||||
| 56368-90K00 |
BJ70..SOT |
1 | ||
| 56453 - HANDLE, WINDSHIELD CATCH | ||||
| 56453-90K00 |
BJ70..SOT |
2 | ||
| 62325 - TRIM, WINDSHIELD FRAME | ||||
| 63304-90K0008 |
BJ70..SOT IVORY,IVORY |
1 | ||
| Common parts | ||||
| 90119-08480 | ||||
| 90159-50244 | ||||
| 90189-05009 | ||||
| 90189-05023 | ||||
| 90467-08052 | ||||
| 90467-11024 | ||||
| 90467-15008 | ||||
| 90950-06035 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91651-40616 | ||||
| 94613-10800 | ||||
