BJ70-MR (1984)
Toyota Land Cruiser S/T,H/T
Production
Nov 1984
-
Jan 1990
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

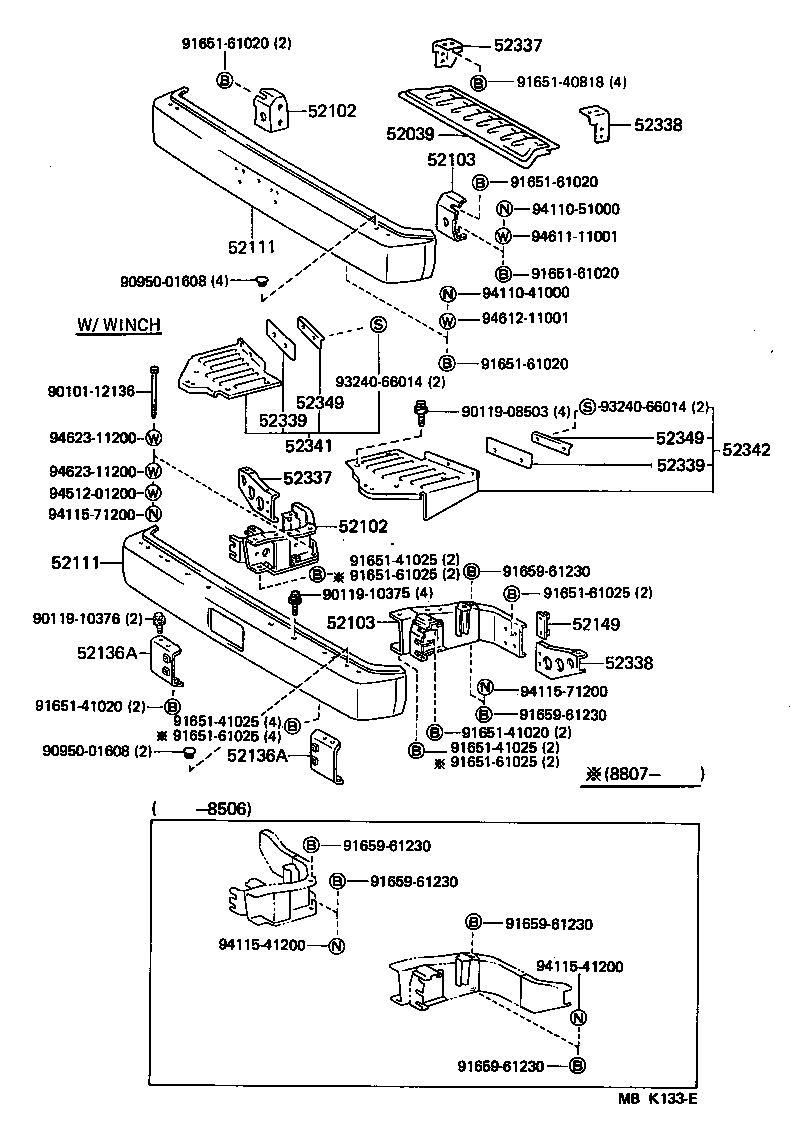

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52130-60020 |
BJ7# W/WINCH |
1 | ||
| 52116-60020 |
BJ7#,LJ71 |
1 | ||
| 52130-90K00 |
BJ7# W/WINCH |
1 | ||
| 52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH | ||||
| 52130-60020 |
BJ7# W/WINCH |
1 | ||
| 52116-60020 |
BJ7#,LJ71 |
1 | ||
| 52130-90K00 |
BJ7# W/WINCH |
1 | ||
| 52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52117-60010 |
BJ7#,LJ71 |
1 | ||
| 52140-60020 |
BJ7# W/WINCH |
1 | ||
| 52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH | ||||
| 52117-60010 |
BJ7#,LJ71 |
1 | ||
| 52140-60020 |
BJ7# W/WINCH |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52101-60020 |
BJ7# CHROME PLATING |
1 | ||
| 52101-60030 |
BJ7# W/WINCH |
1 | ||
| 52101-60010 |
BJ7# |
1 | ||
| 52101-60040 |
BJ7# CHROME PLATING,W/WINCH |
1 | ||
| 52101-60010 |
BJ70,73..STD |
1 | ||
| 52101-60030 |
BJ70,73..STD W/WINCH |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52101-60020 |
BJ7# CHROME PLATING |
1 | ||
| 52101-60030 |
BJ7# W/WINCH |
1 | ||
| 52101-60010 |
BJ7# |
1 | ||
| 52101-60040 |
BJ7# CHROME PLATING,W/WINCH |
1 | ||
| 52101-60010 |
BJ70,73..STD |
1 | ||
| 52101-60030 |
BJ70,73..STD W/WINCH |
1 | ||
| 52136A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-60050 |
BJ7#,LJ71 RH |
1 | ||
| 52132-60030 |
BJ7#,LJ71 LH |
1 | ||
| 52136A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-60050 |
BJ7#,LJ71 RH |
1 | ||
| 52132-60030 |
BJ7#,LJ71 LH |
1 | ||
| 52149 - BRACKET, FRONT BUMPER, INNER | ||||
| 52149-60010 |
BJ7# |
2 | ||
| 52337 - STAY, FRONT BUMPER STEP, RH | ||||
| 52333-90K01 |
BJ7#,LJ71 |
1 | ||
| 52333-90K00 |
BJ7# ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 52337 - STAY, FRONT BUMPER STEP, RH | ||||
| 52333-90K01 |
BJ7#,LJ71 |
1 | ||
| 52333-90K00 |
BJ7# ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 52338 - STAY, FRONT BUMPER STEP, LH | ||||
| 52334-90K01 |
BJ7#,LJ71 |
1 | ||
| 52334-90K00 |
BJ7# ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 52338 - STAY, FRONT BUMPER STEP, LH | ||||
| 52334-90K01 |
BJ7#,LJ71 |
1 | ||
| 52334-90K00 |
BJ7# ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 52339 - SEAL, FRONT BUMPER STEP | ||||
| 52339-90K00 |
BJ7# |
2 | ||
| 52339 - SEAL, FRONT BUMPER STEP | ||||
| 52339-90K00 |
BJ7# |
2 | ||
| 52341 - STEP, FRONT BUMPER, RH | ||||
| 52330-90K00 |
BJ7# |
1 | ||
| 52342 - STEP, FRONT BUMPER, LH | ||||
| 52340-90K00 |
BJ7# |
1 | ||
| 52349 - RETAINER, FRONT BUMPER STEP SEAL | ||||
| 52349-90K00 |
BJ7# |
2 | ||
| 52349 - RETAINER, FRONT BUMPER STEP SEAL | ||||
| 52349-90K00 |
BJ7# |
2 | ||
| Common parts | ||||
| 90101-12136 | ||||
| 90119-08503 | ||||
| 90119-10375 | ||||
| 90119-10376 | ||||
| 90950-01608 | ||||
| 91651-40818 | ||||
| 91651-41020 | ||||
| 91651-41025 | ||||
| 91651-61020 | ||||
| 91651-61025 | ||||
| 91659-61230 | ||||
| 93240-66014 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94115-71200 | ||||
| 94512-01200 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
| 94623-11200 | ||||
