BJ46-KCJ (1982)

Toyota Land Cruiser S/T,H/T

Production Oct 1982 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

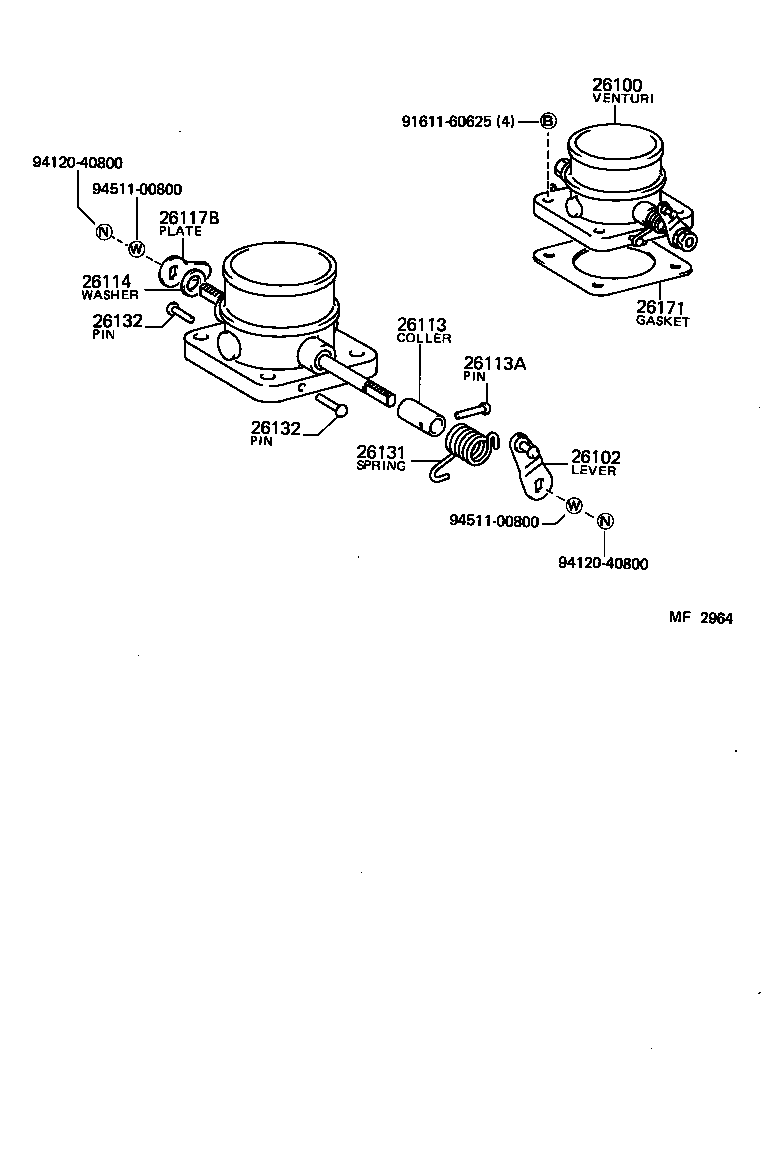

Click highlighted areas on diagram

diagram 26100 26102 26113 26113A 26114 26117B 26131 26132 26132 26171 9161160625 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
26100 - VENTURI ASSY
26100-56110

3B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-56110

3B..BJ4#

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58041

3B..BJ4#

 1
26113-58040

3B..BJ4#

 1
26113A - PIN, THROTTLE VALVE SHAFT
26132-56011

3B..BJ4#

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

2B,3B..BJ4#

厚さ=0.1,T=0.1

 2
26116-76010

2B,3B..BJ4#

厚さ=0.5,T=0.5

 2
26115-76010

2B,3B..BJ4#

厚さ=0.2,T=0.2

 2
26117B - PLATE, THROTTLE VALVE SHAFT STOP(FOR IDLE UP)
26117-47050

3B..BJ4#

 1
26131 - SPRING, RETURN
26131-56110

3B..BJ4#

 1
26132 - PIN
26132-56010

3B..BJ4#

 2
26132 - PIN
26132-56010

3B..BJ4#

 2
26171 - GASKET, VENTURI
26171-56020

2B,3B..BJ4#

 1
Common parts
91611-60625
94120-40800
94511-00800
