BJ44V-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )VKC

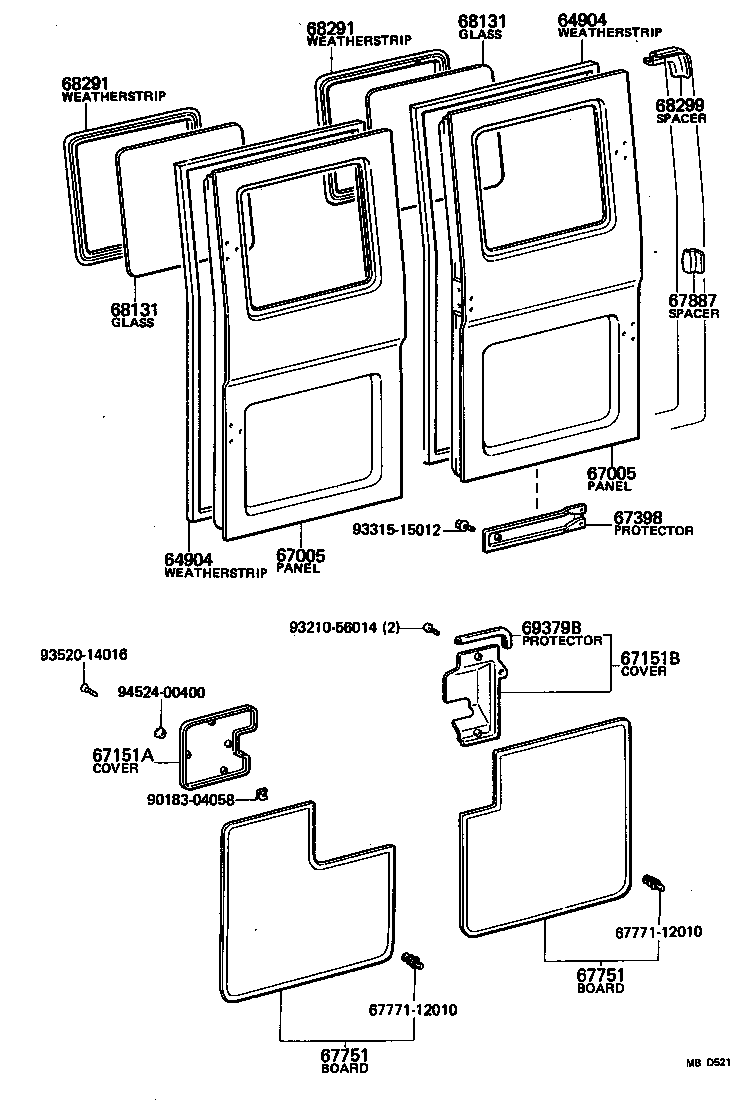

Click highlighted areas on diagram

diagram 64904 64904 67005 67005 67151A 67151B 67398 67751 67751 6777112010 6777112010 67887 68131 68131 68291 68291 68299 69379B 9018304058 9321056014 9331515012 9352014016 9452400400
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
68291-90302

BJ4#..VKC

RH

 1
68292-90302

BJ4#..VKC

LH

 1
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
68291-90302

BJ4#..VKC

RH

 1
68292-90302

BJ4#..VKC

LH

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67006-90810

BJ4#..VKC..(40K,50K)

LH

 1
64902-90306

BJ4#..VKC

LH

 1
67005-90812

BJ4#..VKC..(40K,50K)

RH

 1
67005-90805

BJ4#..VKC

RH

 1
67005-90811

BJ4#..VKC..(40K,50K)

LUXURY SPEC,RH

 1
67006-90813

BJ4#..VKC..(40K,50K)

LUXURY SPEC,LH

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67006-90810

BJ4#..VKC..(40K,50K)

LH

 1
64902-90306

BJ4#..VKC

LH

 1
67005-90812

BJ4#..VKC..(40K,50K)

RH

 1
67005-90805

BJ4#..VKC

RH

 1
67005-90811

BJ4#..VKC..(40K,50K)

LUXURY SPEC,RH

 1
67006-90813

BJ4#..VKC..(40K,50K)

LUXURY SPEC,LH

 1
67151A - COVER, BACK DOOR SERVICE HOLE, NO.1
67129-90301

BJ4#..VKC

 1
67398 - PROTECTOR, BACK DOOR HARNESS
67398-90801

BJ4#..VKC..(40K,50K)

 1
67887 - SPACER, BACK DOOR WEATHERSTRIP
68296-90300

BJ4#..VKC

LH

 1
68295-90300

BJ4#..VKC

RH

 1
68131 - GLASS, BACK DOOR
68131-90303

BJ4#..VKC

*TEM,T=4.0

 2
68131 - GLASS, BACK DOOR
68131-90303

BJ4#..VKC

*TEM,T=4.0

 2
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-60030

BJ4#..VKC

 2
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-60030

BJ4#..VKC

 2
Common parts
67771-12010
90183-04058
93210-56014
93315-15012
93520-14016
94524-00400
