BJ44V-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

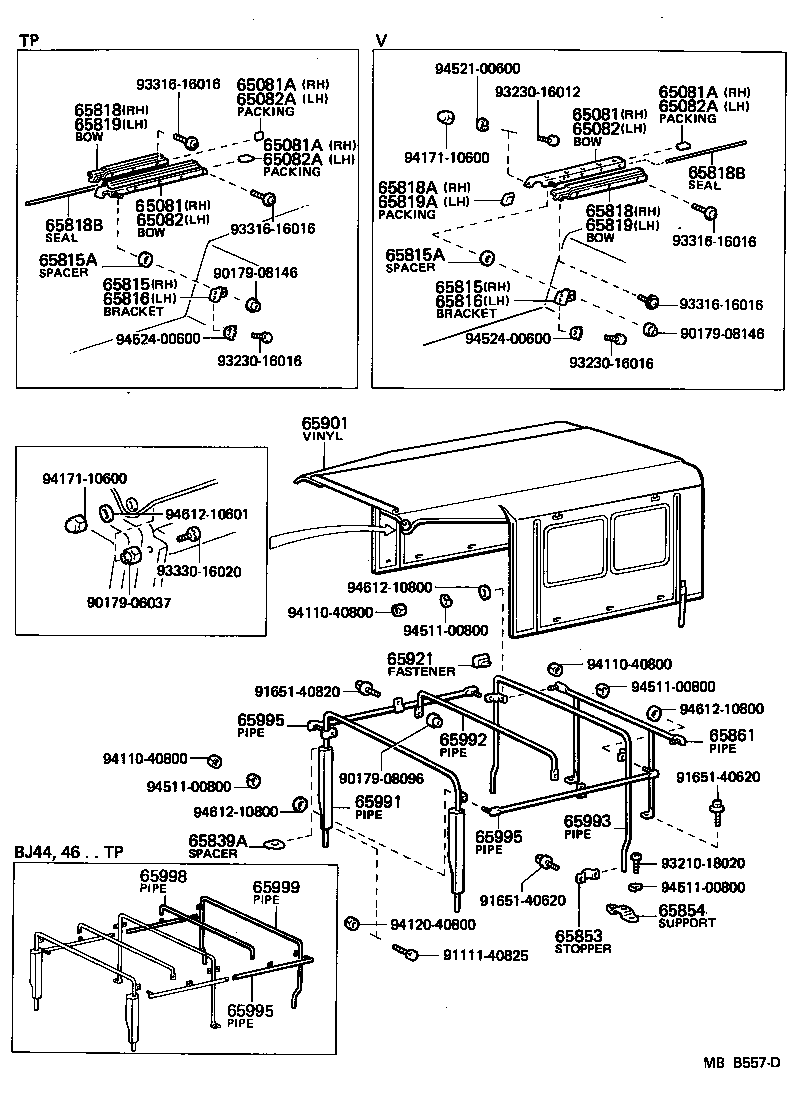

ILLUST NO. 1 OF 2(8008- )

Click highlighted areas on diagram

diagram 65081 65081 65081A 65081A 65081A 65082 65082 65082A 65082A 65082A 65815 65815 65815A 65815A 65816 65816 65818 65818 65818A 65818B 65818B 65819 65819 65819A 65839A 65853 65854 65861 65901 65921 65991 65992 65993 65995 65995 65995 65998 65999 9017906037 9017908096 9017908146 9017908146 9111140825 9165140620 9165140620 9165140820 9321018020 9323016012 9323016016 9323016016 9331616016 9331616016 9331616016 9331616016 9333016020 9411040800 9411040800 9411040800 9412040800 9417110600 9417110600 9451100800 9451100800 9451100800 9451100800 9452100600 9452400600 9452400600 9461210601 9461210800 9461210800 9461210800
Part # Description Qty Price
65081 - BOW SUB-ASSY, FRONT SIDE TOP, RH
65801-90300

BJ4#..V..(40K,50K)

 1
65081 - BOW SUB-ASSY, FRONT SIDE TOP, RH
65801-90300

BJ4#..V..(40K,50K)

 1
65081A - PACKING, FRONT SIDE TOP, RH
65865-90300

BJ4#

 1
65081A - PACKING, FRONT SIDE TOP, RH
65865-90300

BJ4#

 1
65081A - PACKING, FRONT SIDE TOP, RH
65865-90300

BJ4#

 1
65082 - BOW SUB-ASSY, FRONT SIDE TOP, LH
65802-90300

BJ4#..V..(40K,50K)

 1
65082 - BOW SUB-ASSY, FRONT SIDE TOP, LH
65802-90300

BJ4#..V..(40K,50K)

 1
65082A - PACKING, FRONT SIDE TOP, LH
65865-90300

BJ4#

 1
65082A - PACKING, FRONT SIDE TOP, LH
65865-90300

BJ4#

 1
65082A - PACKING, FRONT SIDE TOP, LH
65865-90300

BJ4#

 1
65815 - BRACKET, FRONT SIDE TOP BOW, RH
65815-90300

BJ4#

 1
65815 - BRACKET, FRONT SIDE TOP BOW, RH
65815-90300

BJ4#

 1
65815A - SPACER, FRONT SIDE TOP BOW BRACKET
90560-09025

BJ4#

 2
65815A - SPACER, FRONT SIDE TOP BOW BRACKET
90560-09025

BJ4#

 2
65816 - BRACKET, FRONT SIDE TOP BOW, LH
65816-90300

BJ4#

 1
65816 - BRACKET, FRONT SIDE TOP BOW, LH
65816-90300

BJ4#

 1
65818 - BOW, FRONT SIDE TOP, OUTER RH
65818-90301

BJ4#

 1
65818 - BOW, FRONT SIDE TOP, OUTER RH
65818-90301

BJ4#

 1
65818A - PACKING, FRONT SIDE TOP BOW, RH
65898-90301

BJ4#

RR

 1
65888-90302

BJ4#

FR

 1
65819 - BOW, FRONT SIDE TOP, OUTER LH
65819-90301

BJ4#

 1
65819 - BOW, FRONT SIDE TOP, OUTER LH
65819-90301

BJ4#

 1
65819A - PACKING, FRONT SIDE TOP BOW, LH
65899-90301

BJ4#

RR

 1
65889-90302

BJ4#

FR

 1
Common parts
90179-06037
90179-08096
90179-08146
91111-40825
91651-40620
91651-40820
93210-18020
93230-16012
93230-16016
93316-16016
93330-16020
94110-40800
94120-40800
94171-10600
94511-00800
94521-00600
94524-00600
94612-10601
94612-10800

ILLUST NO. 2 OF 2(8008- )

Click highlighted areas on diagram

diagram 65818A 65818A 65819A 65819A
Part # Description Qty Price
65818A - PACKING, FRONT SIDE TOP BOW, RH
65898-90301

BJ4#

RR

 1
65888-90302

BJ4#

FR

 1
65818A - PACKING, FRONT SIDE TOP BOW, RH
65898-90301

BJ4#

RR

 1
65888-90302

BJ4#

FR

 1
65819A - PACKING, FRONT SIDE TOP BOW, LH
65899-90301

BJ4#

RR

 1
65889-90302

BJ4#

FR

 1
65819A - PACKING, FRONT SIDE TOP BOW, LH
65899-90301

BJ4#

RR

 1
65889-90302

BJ4#

FR

 1
