BJ44V-KCY (1980)
Toyota Land Cruiser S/T,H/T
Production
Aug 1980
-
Oct 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

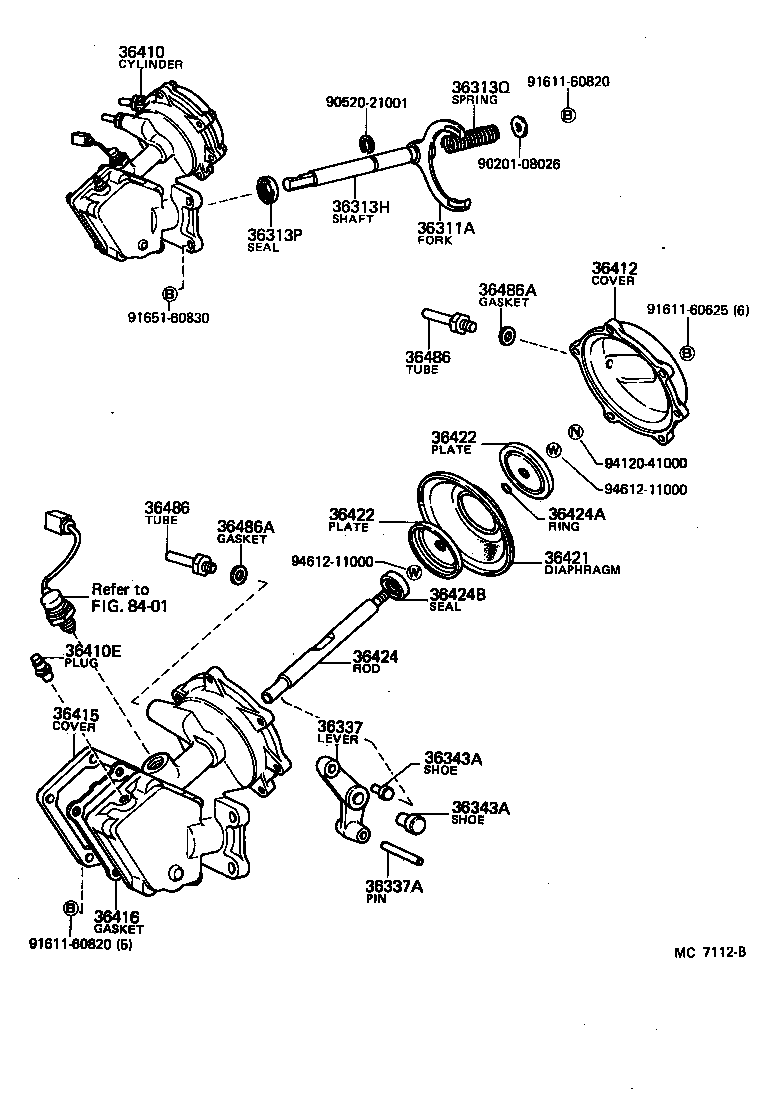

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36311A - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60040 |
BJ4# |
1 | ||
| 36313H - SHAFT, TRANSFER FRONT DRIVE SHIFT(FOR MAGNET TYPE) | ||||
| 36313-60060 |
BJ4# |
1 | ||
| 36313P - SEAL, OIL (FOR TRANSFER FRONT DRIVE SHIFT SHAFT) | ||||
| 90311-23001 |
BJ4# |
1 | ||
| 36313Q - SPRING(FOR TRANSFER FRONT DRIVE SHIFT SHAFT) | ||||
| 90501-29003 |
BJ4# |
1 | ||
| 36337 - LEVER, FRONT DRIVE SHIFT LINK | ||||
| 36337-60050 |
BJ4# |
1 | ||
| 36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER) | ||||
| 90250-08108 |
BJ4# |
1 | ||
| 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE | ||||
| 36343-60030 |
BJ4# OD=12 |
1 | ||
| 36343-60010 |
BJ4# OD=18 |
1 | ||
| 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE | ||||
| 36343-60030 |
BJ4# OD=12 |
1 | ||
| 36343-60010 |
BJ4# OD=18 |
1 | ||
| 36410 - CYLINDER ASSY, DIAPHRAGM | ||||
| 36410-60020 |
BJ4# |
1 | ||
| 36410E - PLUG, BREATHER(FOR DIAPHRAGM CYLINDER) | ||||
| 90930-03075 |
BJ4# |
1 | ||
| 36412 - COVER, DIAPHRAGM CYLINDER BODY | ||||
| 36412-60020 |
BJ4# |
1 | ||
| 36415 - COVER, DIAPHRAGM CYLINDER | ||||
| 36415-60020 |
BJ4# |
1 | ||
| 36416 - GASKET, DIAPHRAGM CYLINDER | ||||
| 36416-60020 |
BJ4# |
1 | ||
| 36421 - DIAPHRAGM, TRANSFER | ||||
| 36421-60010 |
BJ4# |
1 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-60010 |
BJ4# |
2 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-60010 |
BJ4# |
2 | ||
| 36424 - ROD, DIAPHRAGM PUSH | ||||
| 36424-60020 |
BJ4# |
1 | ||
| 36424A - RING, O (FOR DIAPHRAGM PUSH ROD) | ||||
| 96710-02010 |
BJ4# |
1 | ||
| 36424B - SEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD) | ||||
| 90311-13066 |
BJ4# |
1 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
BJ4# |
2 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
BJ4# |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
BJ4# |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
BJ4# |
2 | ||
| Common parts | ||||
| 90201-08026 | ||||
| 90520-21001 | ||||
| 91611-60625 | ||||
| 91611-60820 | ||||
| 91651-60830 | ||||
| 94120-41000 | ||||
| 94612-11000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
