BJ44-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

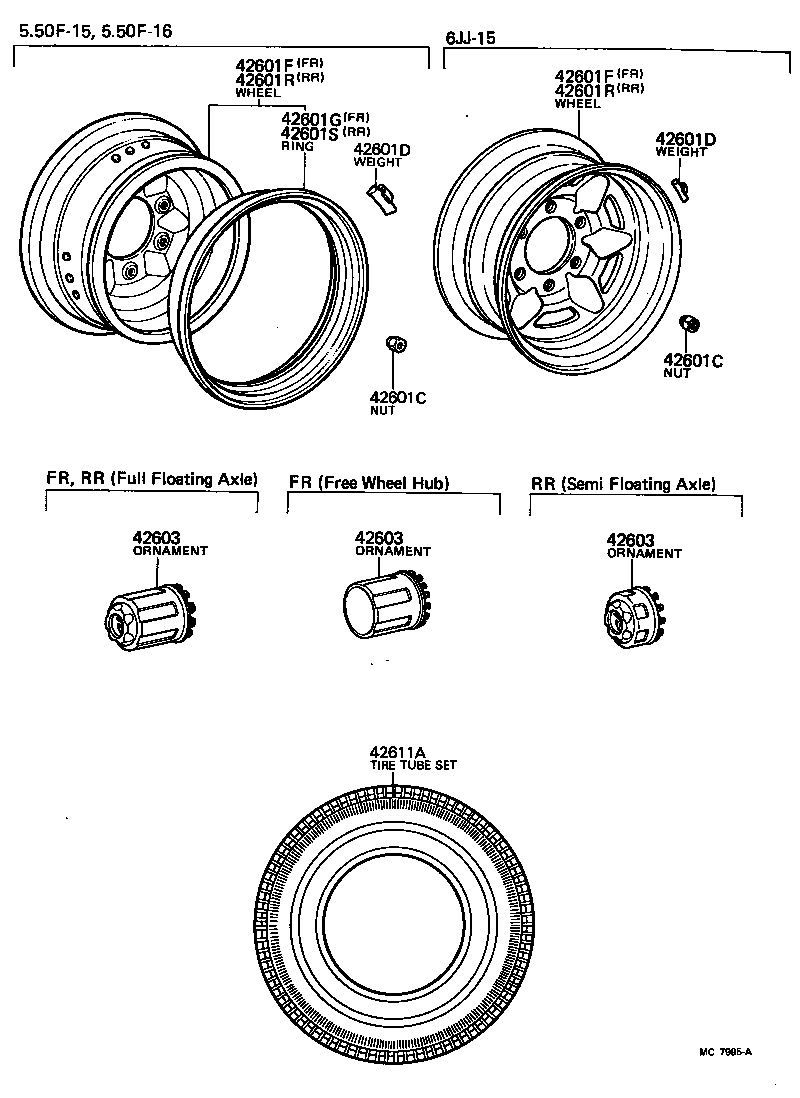

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601D 42601F 42601F 42601G 42601R 42601R 42601S 42603 42603 42603 42611A
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

BJ4#..40K,50K

5.50F-15 WHEEL

 24
42601C - NUT, HUB (FOR AXLE)
90942-01007

BJ4#..40K,50K

5.50F-15 WHEEL

 24
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03064

BJ4#..40K,50K

70G,70G,5.50F-15 WHEEL

 1
90942-03045

BJ4#..40K,50K

20G,20G,5.50F-15 WHEEL

 1
90942-03049

BJ4#..40K,50K

60G,60G,5.50F-15 WHEEL

 1
90942-03106

BJ4#..40K,50K

10G,10G,5.50F-15 WHEEL

 1
90942-03047

BJ4#..40K,50K

40G,40G,5.50F-15 WHEEL

 1
90942-03051

BJ4#..40K,50K

80G,80G,5.50F-15 WHEEL

 1
90942-03052

BJ4#..40K,50K

50G,50G,5.50F-15 WHEEL

 1
90942-03050

BJ4#..40K,50K

30G,30G,5.50F-15 WHEEL

 1
90942-03053

BJ4#..40K,50K

100G,100G,5.50F-15 WHEEL

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03064

BJ4#..40K,50K

70G,70G,5.50F-15 WHEEL

 1
90942-03045

BJ4#..40K,50K

20G,20G,5.50F-15 WHEEL

 1
90942-03049

BJ4#..40K,50K

60G,60G,5.50F-15 WHEEL

 1
90942-03106

BJ4#..40K,50K

10G,10G,5.50F-15 WHEEL

 1
90942-03047

BJ4#..40K,50K

40G,40G,5.50F-15 WHEEL

 1
90942-03051

BJ4#..40K,50K

80G,80G,5.50F-15 WHEEL

 1
90942-03052

BJ4#..40K,50K

50G,50G,5.50F-15 WHEEL

 1
90942-03050

BJ4#..40K,50K

30G,30G,5.50F-15 WHEEL

 1
90942-03053

BJ4#..40K,50K

100G,100G,5.50F-15 WHEEL

 1
42601F - WHEEL, DISC (FOR FRONT)
42610-60030

BJ4#..40K,50K

5.50F−15,#,5.50F-15

 2
42601F - WHEEL, DISC (FOR FRONT)
42610-60030

BJ4#..40K,50K

5.50F−15,#,5.50F-15

 2
42601G - RING, DISC WHEEL SIDE (FOR FRONT)
42613-35010

BJ4#..40K,50K

GRAY

 2
42601R - WHEEL, DISC (FOR REAR)
42610-60030

BJ4#..40K,50K

5.50F−15,#,5.50F-15

 2
42601R - WHEEL, DISC (FOR REAR)
42610-60030

BJ4#..40K,50K

5.50F−15,#,5.50F-15

 2
42601S - RING, DISC WHEEL SIDE (FOR REAR)
42613-35010

BJ4#..40K,50K

GRAY

 2
42611A - TIRE TUBE SET OR TUBELESS TIRE
98667-70153

BJ4#

7.00-15-6,GRIP

 4
42605-60480

BJ4#

7.00-15-6,SNOW

 4
42605-60470

BJ4#

7.00-15-6,SEMI LUG

 4
98061-70153

BJ4#

7.00-15-6,RIB

 4
