BJ44-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

diagram 42311 42311C 42311E 42325 42403 42403A 42403B 42441 42443 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42312-60070

BJ4#

LH,SEMI FLOATING AXLE

 1
42311-60060

BJ4#

RH,SEMI FLOATING AXLE

 1
42311C - BEARING (FOR REAR AXLE SHAFT)
90365-47013

BJ4#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90311-47001

BJ4#

SEMI FLOATING AXLE

 2
42325 - LOCK, REAR AXLE SHAFT
42325-55010

BJ4#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-60020

BJ4#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

BJ4#

20G,20G

 1
90937-01117

BJ4#

10G,10G

 1
90937-01121

BJ4#

50G,50G

 1
90937-01122

BJ4#

60G,60G

 1
90937-01119

BJ4#

30G,30G

 1
90937-01120

BJ4#

40G,40G

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10003

BJ4#

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-30010

BJ4#

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-55020

BJ4#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02034

BJ4#

 12

(8201- )

Click highlighted areas on diagram

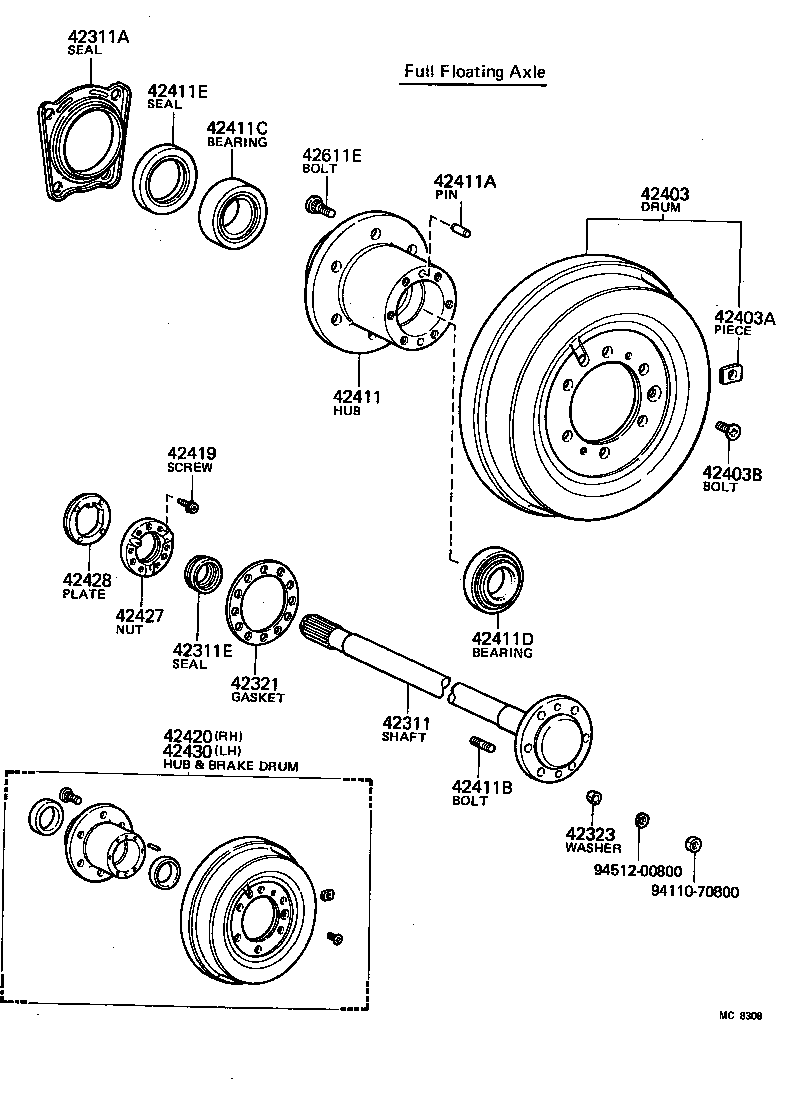

diagram 42311 42311A 42311E 42321 42323 42403 42403A 42403B 42411 42411A 42411B 42411C 42411D 42411E 42419 42420 42427 42428 42430 42611E 9411070800 9451200800
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42312-60070

BJ4#

LH,SEMI FLOATING AXLE

 1
42311-60060

BJ4#

RH,SEMI FLOATING AXLE

 1
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90311-47001

BJ4#

SEMI FLOATING AXLE

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-60020

BJ4#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

BJ4#

20G,20G

 1
90937-01117

BJ4#

10G,10G

 1
90937-01121

BJ4#

50G,50G

 1
90937-01122

BJ4#

60G,60G

 1
90937-01119

BJ4#

30G,30G

 1
90937-01120

BJ4#

40G,40G

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10003

BJ4#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02034

BJ4#

 12
Common parts
94110-70800
94512-00800
