BJ44-KCJY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8008- )

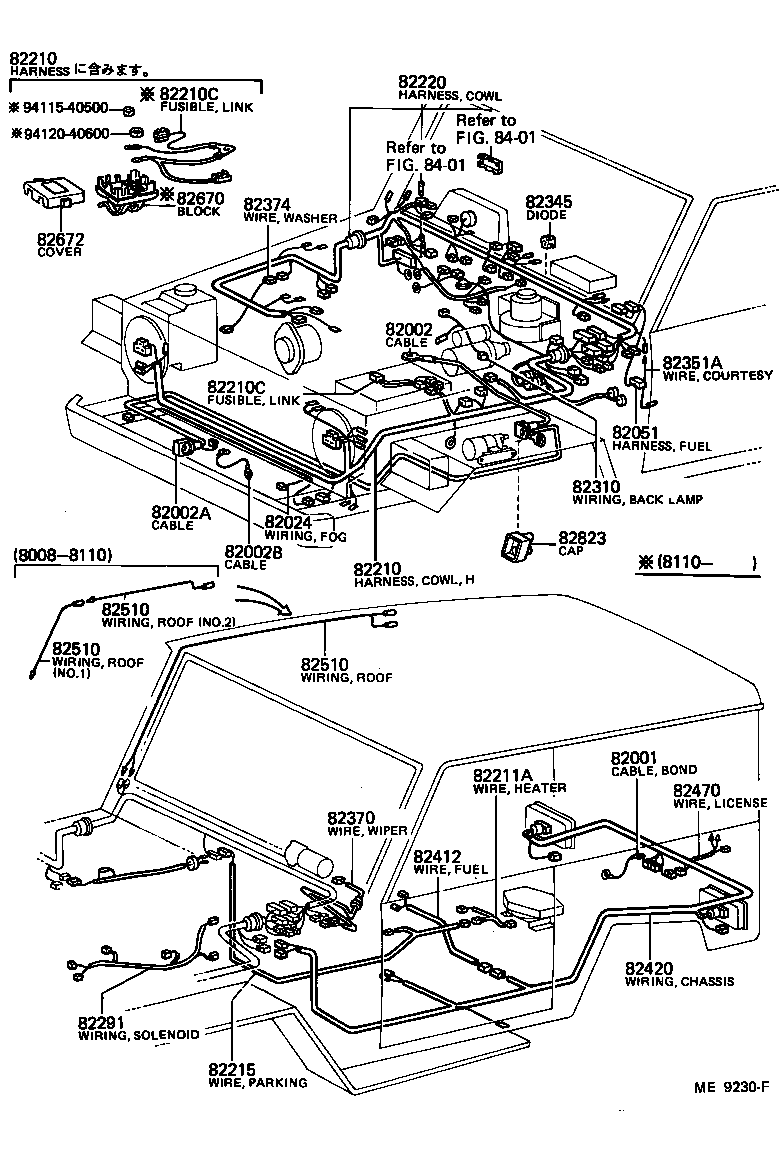

Click highlighted areas on diagram

diagram 82001 82002 82002A 82002B 82024 82051 82210 82210 82210C 82210C 82211A 82215 82220 82291 82310 82345 82351A 82370 82374 82412 82420 82470 82510 82510 82510 82670 82672 82823 8401 8401 9411540500 9412040600
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07056

BJ4#

 1
82002 - CABLE, BATTERY TO MAGNET SWITCH
38915-90300

BJ4#

W/ELECTRICAL WINCH

 1
82002A - CABLE, MAGNET SWITCH TO WINCH
38916-90301

BJ4#

W/ELECTRICAL WINCH

 1
82002B - CABLE, WINCH TO GROUND
90980-07175

BJ4#

W/ELECTRICAL WINCH

 1
82051 - HARNESS ASSY, FUEL CONTROL
82051-90800

BJ4#

W/EDIC

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90808

BJ4#

 1
82210-90835

BJ4#

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90808

BJ4#

 1
82210-90835

BJ4#

 1
82210C - FUSIBLE LINK
90982-08151

BJ4#

 1
90982-08191

BJ4#

 1
82210C - FUSIBLE LINK
90982-08151

BJ4#

 1
90982-08191

BJ4#

 1
82211A - WIRE, REAR HEATER
82213-90800

BJ4#

 1
82215 - WIRE, PARKING BRAKE LAMP SWITCH
82215-90800

BJ44;BJ41..TPC;BJ41..02S

 1
82215-90800

BJ4#

 1
82215-90804

BJ4#

W/RR HEATER

 1
82220 - HARNESS ASSY, WIRING COWL
82220-90848

BJ4#

 1
82220-90811

BJ4#

 1
82291 - WIRING, TO SOLENOID
82291-90800

BJ4#

 1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-90803

BJ4#

 1
82310-90805

BJ4#

 1
82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR)
82351-90800

BJ4#

 1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-90800

BJ4#

 1
82370-90312

BJ4#

 1
82374 - WIRE, WASHER
82374-60010

BJ4#

 1
82412 - WIRE, FUEL GAGE
82412-90801

BJ4#

 1
82420 - WIRING ASSY, CHASSIS
82420-90804

BJ44,46

 1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90800

BJ4#

 1
82510 - WIRING ASSY, ROOF
82521-90300

BJ4#

NO.1

 1
82521-90303

BJ4#

NO.2

 1
82510 - WIRING ASSY, ROOF
82521-90300

BJ4#

NO.1

 1
82521-90303

BJ4#

NO.2

 1
82510 - WIRING ASSY, ROOF
82521-90300

BJ4#

NO.1

 1
82521-90303

BJ4#

NO.2

 1
82823 - CAP, TERMINAL, NO.1
82823-90300

BJ4#

 1
Common parts
94115-40500
94120-40600
Linked diagrams
8401
