BJ44-KCJY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

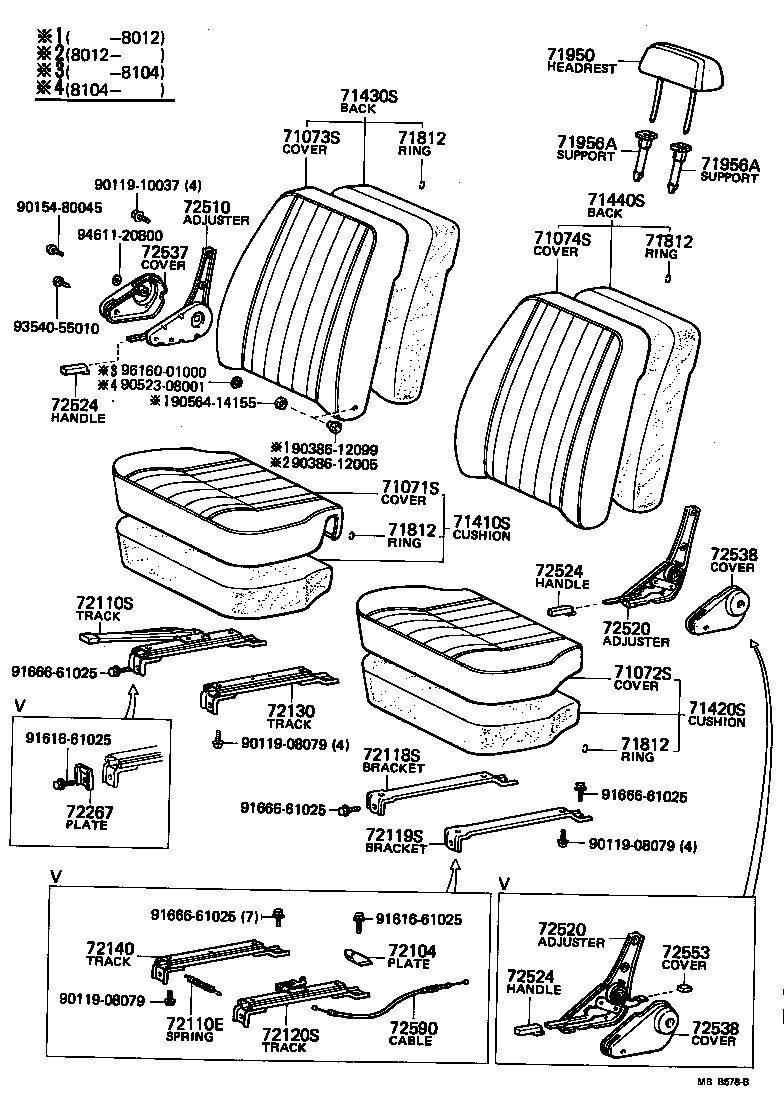

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71812 71812 71812 71812 71950 71956A 71956A 72104 72110E 72110S 72118S 72119S 72120S 72130 72140 72267 72510 72520 72520 72524 72524 72524 72537 72538 72538 72553 72590 9011908079 9011908079 9011908079 9011910037 9015480045 9038612005 9038612099 9052308001 9056414155 9161661025 9161661025 9166661025 9166661025 9166661025 9166661025 9354055010 9461120800 9616001000
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90344

BJ4#..40K,50K

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-90344

BJ4#..40K,50K

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90078

BJ4#..TPC

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-90082

BJ4#..TPC

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90081

BJ4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-90081

BJ4#..TPC

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90084

BJ4#..TPC

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-90084

BJ4#..TPC

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#

 1
71950 - HEADREST ASSY, FRONT SEAT
71950-90301

BJ4#..40K,50K

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#..40K,50K

ﾛｯｸ無,W/O LOCK,BLACK

 2
71990-3002001

BJ4#..40K,50K

ﾛｯｸ付,W/LOCK,BLACK

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#..40K,50K

ﾛｯｸ無,W/O LOCK,BLACK

 2
71990-3002001

BJ4#..40K,50K

ﾛｯｸ付,W/LOCK,BLACK

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90333

BJ4#

 1
72118S - BRACKET, LH SEAT SET INSIDE (FOR SEPARATE SEAT)
71084-90300

BJ4#..TPC

 1
72119S - BRACKET, LH SEAT SET OUTSIDE (FOR SEPARATE SEAT)
71081-90300

BJ4#..TPC

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333

BJ4#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72530-90300

BJ4#..TPC

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72540-90300

BJ4#..TPC

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72540-90300

BJ4#..TPC

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ4#..40K,50K

LH,BLACK,BLACK

 1
72525-1401001

BJ4#..40K,50K

RH,BLACK,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ4#..40K,50K

LH,BLACK,BLACK

 1
72525-1401001

BJ4#..40K,50K

RH,BLACK,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ4#..40K,50K

LH,BLACK,BLACK

 1
72525-1401001

BJ4#..40K,50K

RH,BLACK,BLACK

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-90300

BJ4#..40K,50K

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-90300

BJ4#..40K,50K

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-90300

BJ4#..40K,50K

 1
Common parts
90119-08079
90119-10037
90154-80045
90386-12005
90386-12099
90523-08001
90564-14155
91616-61025
91666-61025
93540-55010
94611-20800
96160-01000

(8008- )BJ41,42 ; (8008- )BJ44,46..TPC

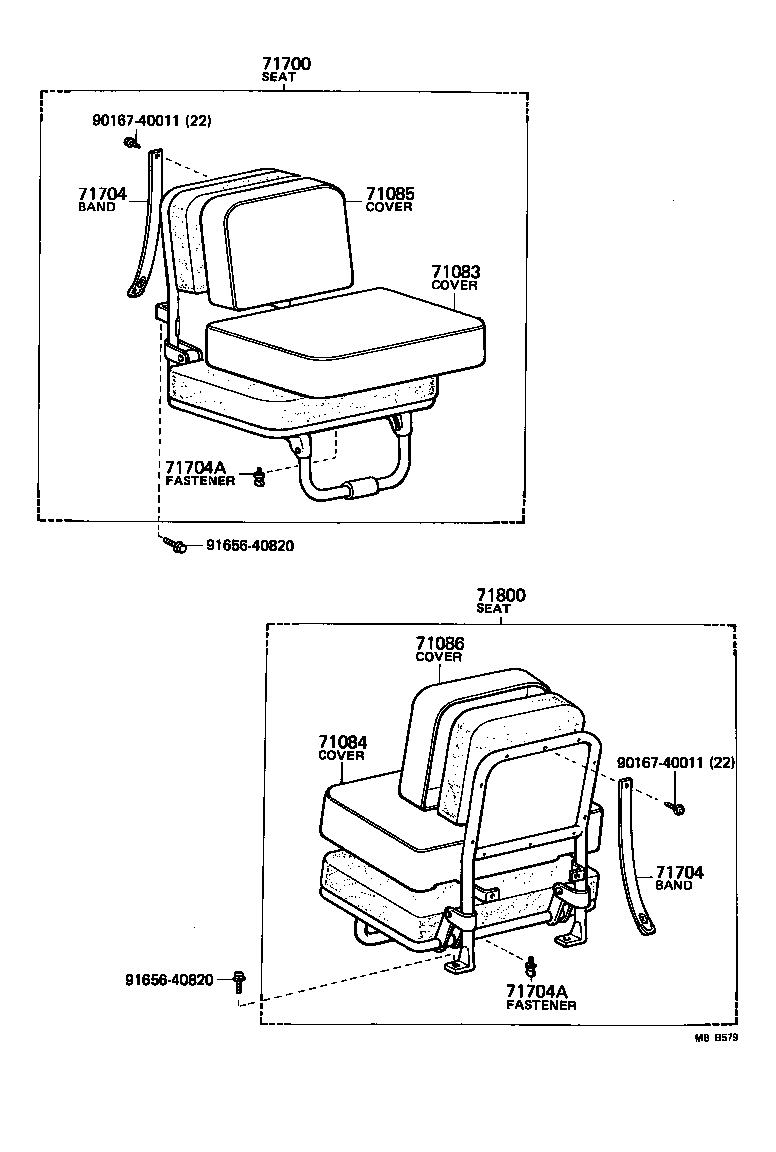

Click highlighted areas on diagram

diagram 71083 71084 71085 71086 71700 71704 71704 71704A 71704A 71800 9016740011 9016740011 9165640820 9165640820
Part # Description Qty Price
71083 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71075-90081

BJ44,46..RB

 1
71084 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH
71076-90077

BJ44,46..RB

 1
71085 - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71077-90072

BJ44,46..RB

 1
71086 - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH
71077-90072

BJ44,46..RB

 1
71700 - SEAT ASSY, REAR SIDE, RH
71700-90281

BJ44,46..RB

 1
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90303

BJ4#..TPC..(06S,08S)

 2
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90303

BJ4#..TPC..(06S,08S)

 2
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#

 2
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#

 2
71800 - SEAT ASSY, REAR SIDE, LH
71800-90276

BJ44,46..RB

 1
Common parts
90167-40011
91656-40820
