BJ44-KCJY (1980)
Toyota Land Cruiser S/T,H/T
Production
Aug 1980
-
Oct 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )TPC

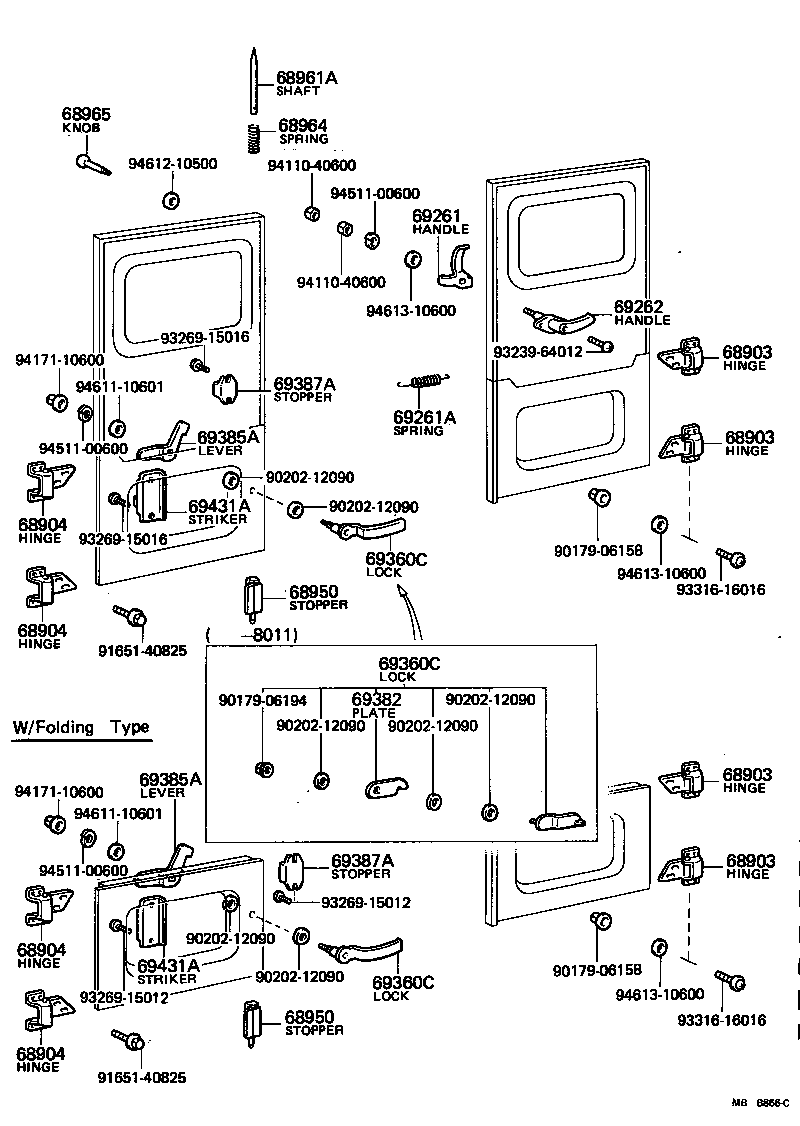

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68903 - HINGE, REAR SWING GATE, RH | ||||
| 68905-90304 |
BJ4#..TPC UPR |
1 | ||
| 68906-90303 |
BJ4#..TPC LWR |
1 | ||
| 68903 - HINGE, REAR SWING GATE, RH | ||||
| 68905-90304 |
BJ4#..TPC UPR |
1 | ||
| 68906-90303 |
BJ4#..TPC LWR |
1 | ||
| 68903 - HINGE, REAR SWING GATE, RH | ||||
| 68905-90304 |
BJ4#..TPC UPR |
1 | ||
| 68906-90303 |
BJ4#..TPC LWR |
1 | ||
| 68903 - HINGE, REAR SWING GATE, RH | ||||
| 68905-90304 |
BJ4#..TPC UPR |
1 | ||
| 68906-90303 |
BJ4#..TPC LWR |
1 | ||
| 68904 - HINGE, REAR SWING GATE, LH | ||||
| 68905-90304 |
BJ4#..TPC LWR |
1 | ||
| 68906-90303 |
BJ4#..TPC UPR |
1 | ||
| 68904 - HINGE, REAR SWING GATE, LH | ||||
| 68905-90304 |
BJ4#..TPC LWR |
1 | ||
| 68906-90303 |
BJ4#..TPC UPR |
1 | ||
| 68904 - HINGE, REAR SWING GATE, LH | ||||
| 68905-90304 |
BJ4#..TPC LWR |
1 | ||
| 68906-90303 |
BJ4#..TPC UPR |
1 | ||
| 68904 - HINGE, REAR SWING GATE, LH | ||||
| 68905-90304 |
BJ4#..TPC LWR |
1 | ||
| 68906-90303 |
BJ4#..TPC UPR |
1 | ||
| 68950 - STOPPER ASSY, REAR SWING GATE LOCK | ||||
| 68950-90305 |
BJ4#..TPC,VLS |
1 | ||
| 68950 - STOPPER ASSY, REAR SWING GATE LOCK | ||||
| 68950-90305 |
BJ4#..TPC,VLS |
1 | ||
| 68961A - SHAFT, REAR SWING DOOR OPEN STOPPER | ||||
| 68961-90315 |
BJ4#..TPC |
1 | ||
| 68964 - SPRING, REAR SWING DOOR OPEN STOPPER | ||||
| 90501-12037 |
BJ4#..TPC |
1 | ||
| 68965 - KNOB, REAR SWING DOOR OPEN STOPPER | ||||
| 68962-90300 |
BJ4#..TPC |
1 | ||
| 69261 - HANDLE, REAR SWING DOOR INSIDE | ||||
| 69261-90323 |
BJ4#..TPC |
1 | ||
| 69261A - SPRING, TENSION(FOR REAR SWING DOOR HANDLE) | ||||
| 90506-18324 |
BJ4#..TPC |
1 | ||
| 69262 - HANDLE, REAR SWING DOOR OUTSIDE | ||||
| 69201-90327 |
BJ4#..TPC |
1 | ||
| 69360C - LOCK ASSY, REAR SWING GATE | ||||
| 69209-90800 |
BJ4#..TPC FOLDING TYPE |
1 | ||
| 69380-90316 |
BJ4#..TPC |
1 | ||
| 69360C - LOCK ASSY, REAR SWING GATE | ||||
| 69209-90800 |
BJ4#..TPC FOLDING TYPE |
1 | ||
| 69380-90316 |
BJ4#..TPC |
1 | ||
| 69360C - LOCK ASSY, REAR SWING GATE | ||||
| 69209-90800 |
BJ4#..TPC FOLDING TYPE |
1 | ||
| 69380-90316 |
BJ4#..TPC |
1 | ||
| 69382 - PLATE, REAR SWING GATE LOCK | ||||
| 69382-90315 |
BJ4#..TPC |
1 | ||
| 69385A - LEVER, REAR SWING GATE LOCK | ||||
| 69385-90800 |
BJ4#..TPC |
1 | ||
| 69385A - LEVER, REAR SWING GATE LOCK | ||||
| 69385-90800 |
BJ4#..TPC |
1 | ||
| 69387A - STOPPER, REAR SWING GATE LOCK LEVER | ||||
| 69387-90800 |
BJ4#..TPC |
1 | ||
| 69387A - STOPPER, REAR SWING GATE LOCK LEVER | ||||
| 69387-90800 |
BJ4#..TPC |
1 | ||
| 69431A - STRIKER, REAR SWING GATE LOCK | ||||
| 69431-90800 |
BJ4#..TPC |
1 | ||
| 69431A - STRIKER, REAR SWING GATE LOCK | ||||
| 69431-90800 |
BJ4#..TPC |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-06194 | ||||
| 90202-12090 | ||||
| 91651-40825 | ||||
| 93239-64012 | ||||
| 93269-15012 | ||||
| 93269-15016 | ||||
| 93316-16016 | ||||
| 94110-40600 | ||||
| 94171-10600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 94612-10500 | ||||
| 94613-10600 | ||||
