BJ44-KCJY (1980)
Toyota Land Cruiser S/T,H/T
Production
Aug 1980
-
Oct 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8110)

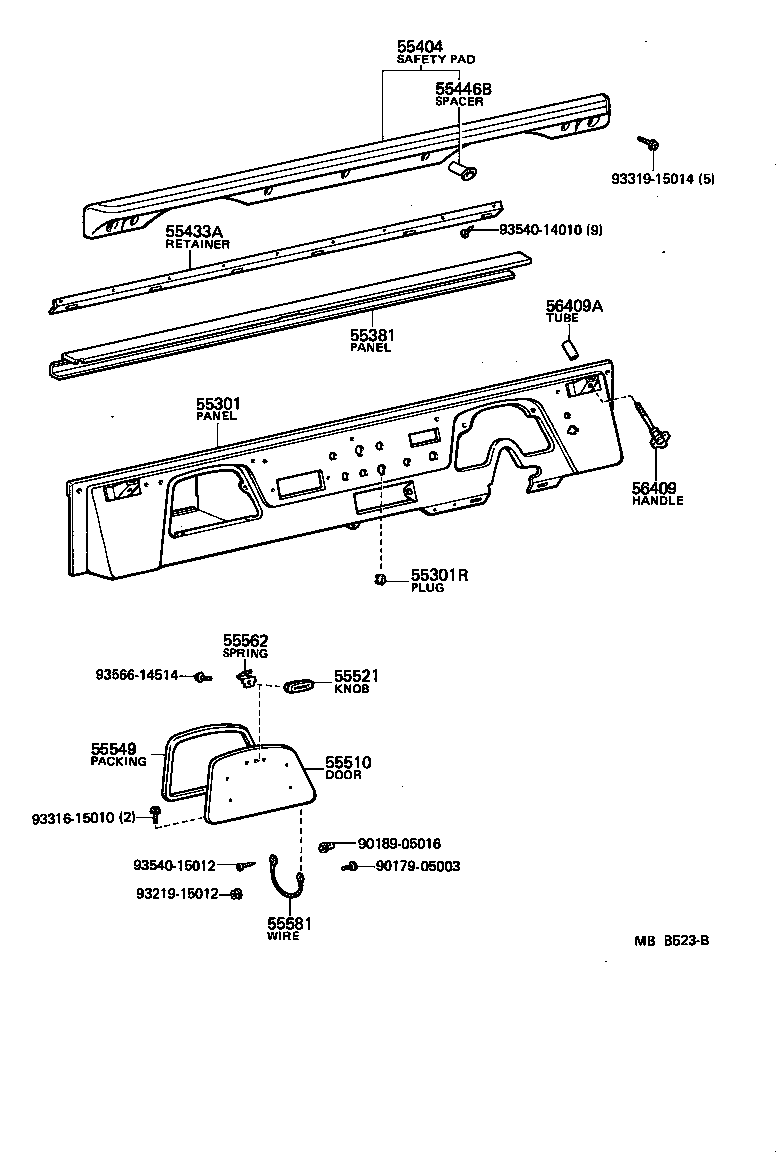

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-90079 |
BJ4# |
1 | ||
| 55301-90832 |
BJ4#..40K,50K |
1 | ||
| 55301-90828 |
BJ4# W/SIDE DEFROSTER |
1 | ||
| 55301-90855 |
BJ4#..40K,50K W/SIDE DEFROSTER |
1 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01156 |
BJ4# ID=17.5 |
1 | ||
| 55381 - PANEL, INSTRUMENT IMPACT | ||||
| 55381-60010 |
BJ4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-90301 |
BJ4# |
1 | ||
| 55433A - RETAINER, SAFETY PAD SET PLATE | ||||
| 55449-60010 |
BJ4# |
1 | ||
| 55446B - SPACER, INSTRUMENT PANEL SAFETY PAD, SET | ||||
| 55446-60010 |
BJ4# |
5 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-90314 |
BJ4# |
1 | ||
| 55521 - KNOB, GLOVE COMPARTMENT DOOR | ||||
| 55521-90300 |
BJ4# |
1 | ||
| 55549 - PACKING, GLOVE COMPARTMENT DOOR | ||||
| 55549-90300 |
BJ4# |
1 | ||
| 55562 - SPRING, GLOVE COMPARTMENT DOOR STOP | ||||
| 55544-90301 |
BJ4# |
1 | ||
| 55581 - WIRE, GLOVE COMPARTMENT DOOR OPEN | ||||
| 55508-30020 |
BJ4# |
1 | ||
| 56409 - HANDLE SUB-ASSY, WINDSHIELD CATCH | ||||
| 56409-60010 |
BJ4# |
2 | ||
| 56409A - TUBE, WINDSHIELD CATCH HANDLE | ||||
| 90440-17057 |
BJ4# |
2 | ||
| Common parts | ||||
| 90179-05003 | ||||
| 90189-05016 | ||||
| 93219-15012 | ||||
| 93316-15010 | ||||
| 93319-15014 | ||||
| 93540-14010 | ||||
| 93540-15012 | ||||
| 93566-14514 | ||||
(8110- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-90079 |
BJ4# |
1 | ||
| 55301-90832 |
BJ4#..40K,50K |
1 | ||
| 55301-90828 |
BJ4# W/SIDE DEFROSTER |
1 | ||
| 55301-90855 |
BJ4#..40K,50K W/SIDE DEFROSTER |
1 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01156 |
BJ4# ID=17.5 |
1 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01156 |
BJ4# ID=17.5 |
1 | ||
| 55381 - PANEL, INSTRUMENT IMPACT | ||||
| 55381-60010 |
BJ4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-90301 |
BJ4# |
1 | ||
| 55433A - RETAINER, SAFETY PAD SET PLATE | ||||
| 55449-60010 |
BJ4# |
1 | ||
| 55446B - SPACER, INSTRUMENT PANEL SAFETY PAD, SET | ||||
| 55446-60010 |
BJ4# |
5 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-90800 |
BJ4# |
4 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-90314 |
BJ4# |
1 | ||
| 55521 - KNOB, GLOVE COMPARTMENT DOOR | ||||
| 55521-90300 |
BJ4# |
1 | ||
| 55549 - PACKING, GLOVE COMPARTMENT DOOR | ||||
| 55549-90300 |
BJ4# |
1 | ||
| 55562 - SPRING, GLOVE COMPARTMENT DOOR STOP | ||||
| 55544-90301 |
BJ4# |
1 | ||
| 55581 - WIRE, GLOVE COMPARTMENT DOOR OPEN | ||||
| 55508-30020 |
BJ4# |
1 | ||
| 56409 - HANDLE SUB-ASSY, WINDSHIELD CATCH | ||||
| 56409-60010 |
BJ4# |
2 | ||
| 56409A - TUBE, WINDSHIELD CATCH HANDLE | ||||
| 90440-17057 |
BJ4# |
2 | ||
| Common parts | ||||
| 90119-08293 | ||||
| 90179-05003 | ||||
| 90189-05016 | ||||
| 90189-06035 | ||||
| 93219-15012 | ||||
| 93230-66020 | ||||
| 93315-16014 | ||||
| 93316-15010 | ||||
| 93319-15014 | ||||
| 93520-26020 | ||||
| 93540-44010 | ||||
| 93540-45012 | ||||
| 93566-14514 | ||||
