BJ44-KCJY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

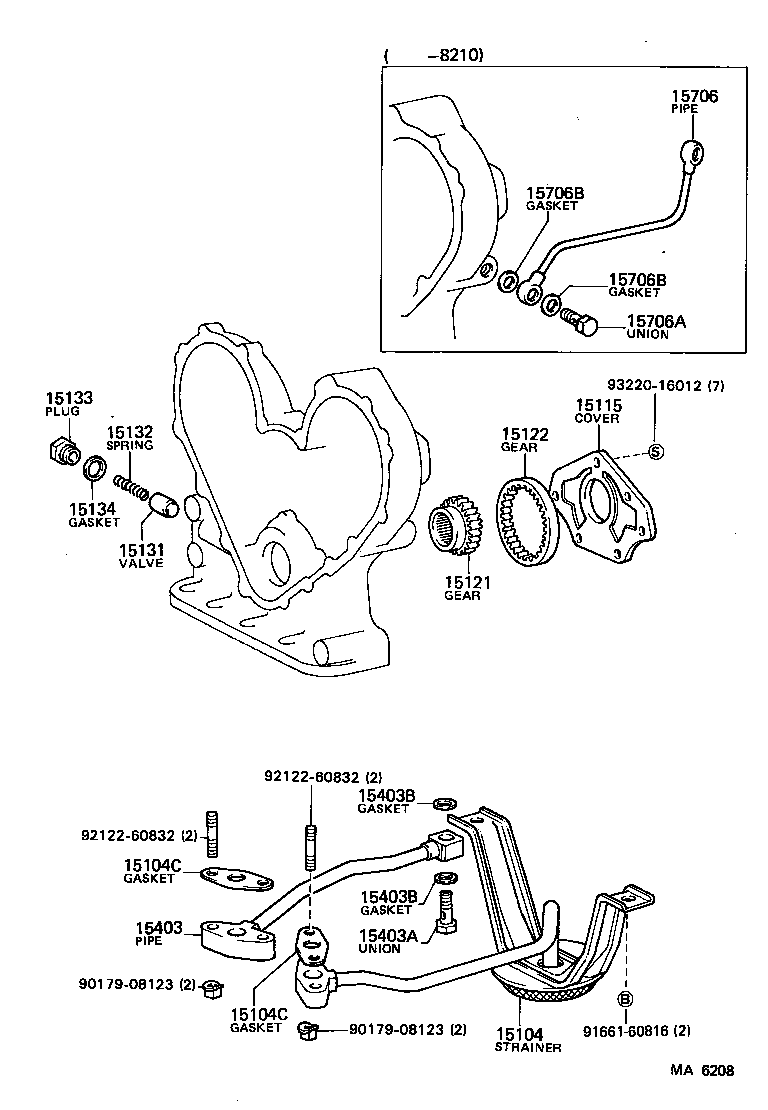

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-56040

2B,3B..BJ4#

 1
15104C - GASKET(FOR OIL STRAINER)
15422-56020

2B..BJ4#

 2
15104C - GASKET(FOR OIL STRAINER)
15422-56020

2B..BJ4#

 2
15115 - COVER, OIL PUMP
15115-56030

2B,3B..BJ4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56030

2B,3B..BJ4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-56030

2B,3B..BJ4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2B,3B..BJ4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

2B,3B..BJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

2B,3B..BJ4#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

2B,3B..BJ4#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-56040

2B,3B..BJ4#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90401-18002

2B,3B..BJ4#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

2B,3B..BJ4#

 2
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

2B,3B..BJ4#

 2
15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET
15077-56010

2B..BJ4#

 1
15706A - UNION(FOR INJECTION PUMP OUTLET PIPE)
90044-01010

2B..BJ4#

 1
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

2B..BJ4#

 2
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

2B..BJ4#

 2
Common parts
90179-08123
91661-60816
92122-60832
93220-16012
