BJ41V-KY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1981
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

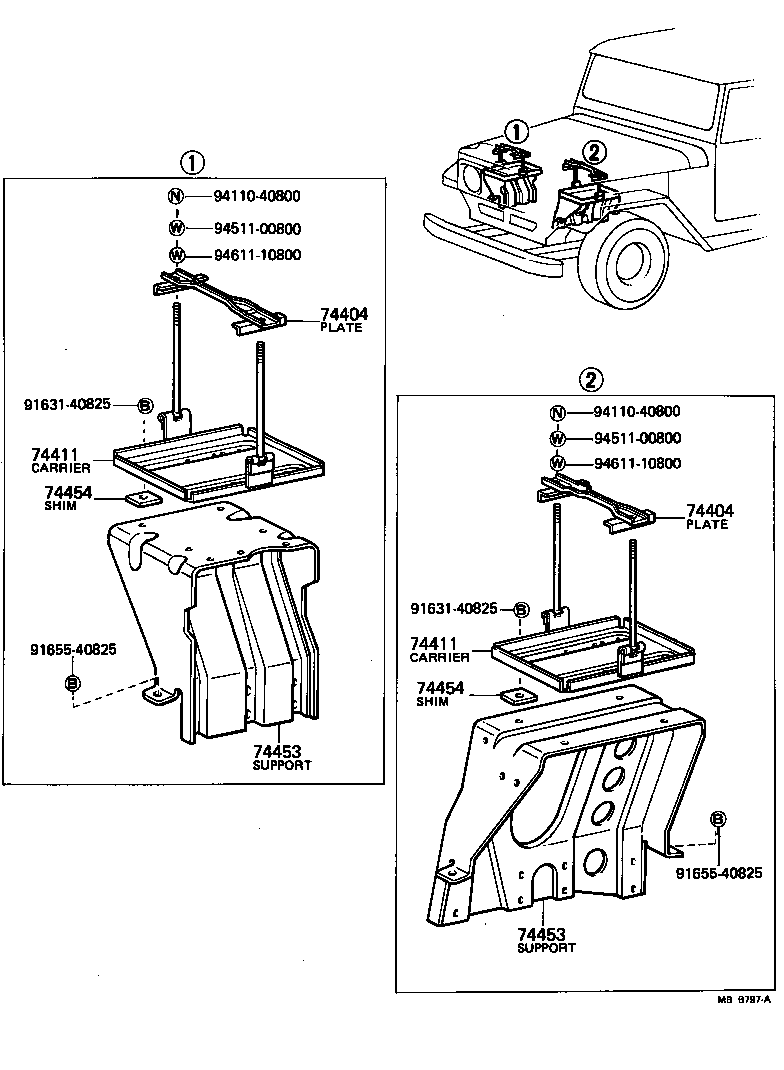

Click highlighted areas on diagram

diagram 74404 74404 74411 74411 74453 74453 74454 74454 9163140825 9163140825 9165540825 9165540825 9411040800 9411040800 9451100800 9451100800 9461110800 9461110800
Part # Description Qty Price
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60060

BJ4#

 2
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60060

BJ4#

 2
74411 - CARRIER, BATTERY
74403-60011

BJ4#

W/N50Z

 2
74403-60050

BJ4#

W/N70Z

 2
74411 - CARRIER, BATTERY
74403-60011

BJ4#

W/N50Z

 2
74403-60050

BJ4#

W/N70Z

 2
74453 - SUPPORT, BATTERY CARRIER
74402-60010

BJ4#

LH

 1
74401-60031

BJ4#

RH

 1
74453 - SUPPORT, BATTERY CARRIER
74402-60010

BJ4#

LH

 1
74401-60031

BJ4#

RH

 1
74454 - SHIM (FOR BATTERY CARRIER SUPPORT)
52321-55010

BJ4#

 8
74454 - SHIM (FOR BATTERY CARRIER SUPPORT)
52321-55010

BJ4#

 8
Common parts
91631-40825
91655-40825
94110-40800
94511-00800
94611-10800
