BJ41V-KY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1981
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)

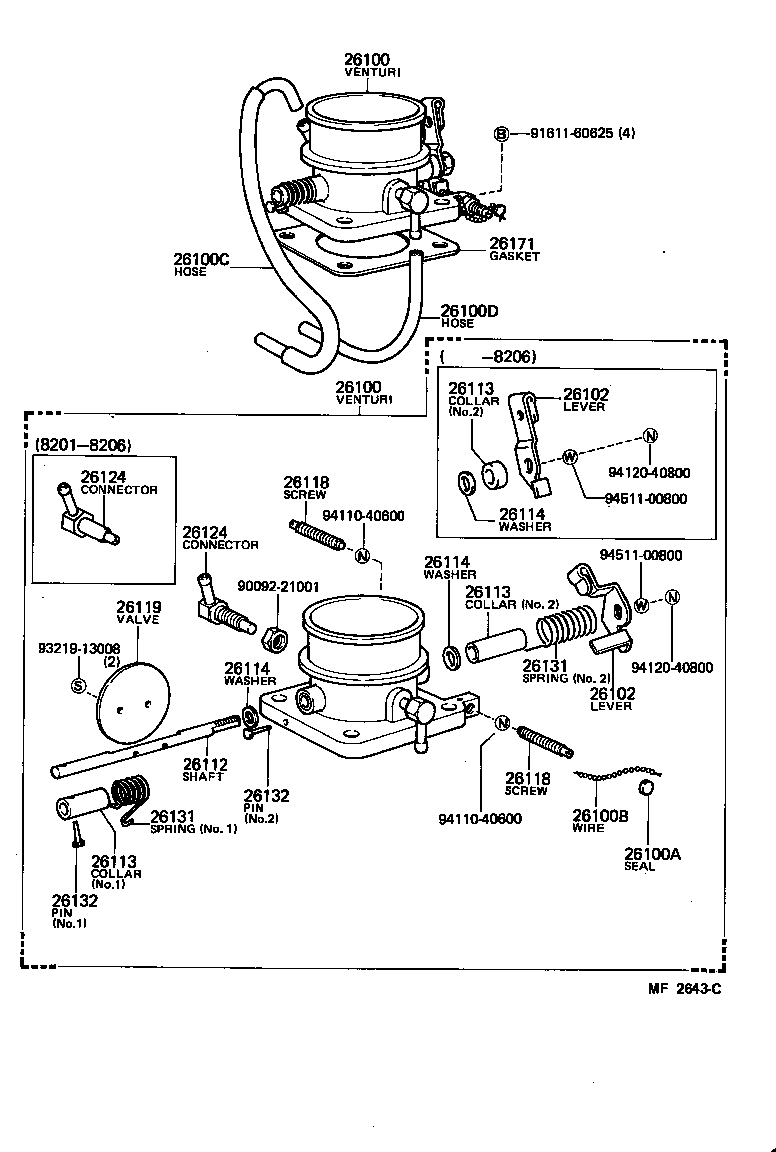

Click highlighted areas on diagram

diagram 26100 26100 26100A 26100B 26100C 26100D 26102 26102 26112 26113 26113 26113 26114 26114 26114 26118 26118 26119 26124 26124 26131 26131 26132 26132 26171 9009221001 9161160625 9321913008 9411040600 9411040600 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
26100 - VENTURI ASSY
26100-56060

2B..BJ4#

 1
26100 - VENTURI ASSY
26100-56060

2B..BJ4#

 1
26100A - SEAL, LEAD
22354-77050

2B..BJ4#

 1
26100B - WIRE, SEAL
22355-36010

2B..BJ4#

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12016

2B..BJ4#

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12001

2B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

2B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

2B..BJ4#

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56030

2B..BJ4#

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-56010

2B..BJ4#

N0.1

 1
26113-58020

2B..BJ4#

N0.2

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-56010

2B..BJ4#

N0.1

 1
26113-58020

2B..BJ4#

N0.2

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-56010

2B..BJ4#

N0.1

 1
26113-58020

2B..BJ4#

N0.2

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

2B,3B..BJ4#

厚さ=0.1,T=0.1

 2
26116-76010

2B,3B..BJ4#

厚さ=0.5,T=0.5

 2
26115-76010

2B,3B..BJ4#

厚さ=0.2,T=0.2

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

2B,3B..BJ4#

厚さ=0.1,T=0.1

 2
26116-76010

2B,3B..BJ4#

厚さ=0.5,T=0.5

 2
26115-76010

2B,3B..BJ4#

厚さ=0.2,T=0.2

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

2B,3B..BJ4#

厚さ=0.1,T=0.1

 2
26116-76010

2B,3B..BJ4#

厚さ=0.5,T=0.5

 2
26115-76010

2B,3B..BJ4#

厚さ=0.2,T=0.2

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-76010

2B..BJ4#

LH

 1
26118-48014

2B..BJ4#

RH

 1
26118 - SCREW, STOP PLATE ADJUSTING
26118-76010

2B..BJ4#

LH

 1
26118-48014

2B..BJ4#

RH

 1
26119 - VALVE, VENTURI THROTTLE
26119-48010

2B..BJ4#

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58020

2B..BJ4#

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58020

2B..BJ4#

 1
26131 - SPRING, RETURN
26131-56010

2B..BJ4#

NO.1

 1
26131 - SPRING, RETURN
26131-56010

2B..BJ4#

NO.1

 1
26132 - PIN
26132-56010

2B..BJ4#

N0.1

 1
26132-56011

2B..BJ4#

N0.2

 1
26132 - PIN
26132-56010

2B..BJ4#

N0.1

 1
26132-56011

2B..BJ4#

N0.2

 1
26171 - GASKET, VENTURI
26171-56020

2B,3B..BJ4#

 1
Common parts
90092-21001
91611-60625
93219-13008
94110-40600
94120-40800
94511-00800
