BJ41V-KY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1981
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

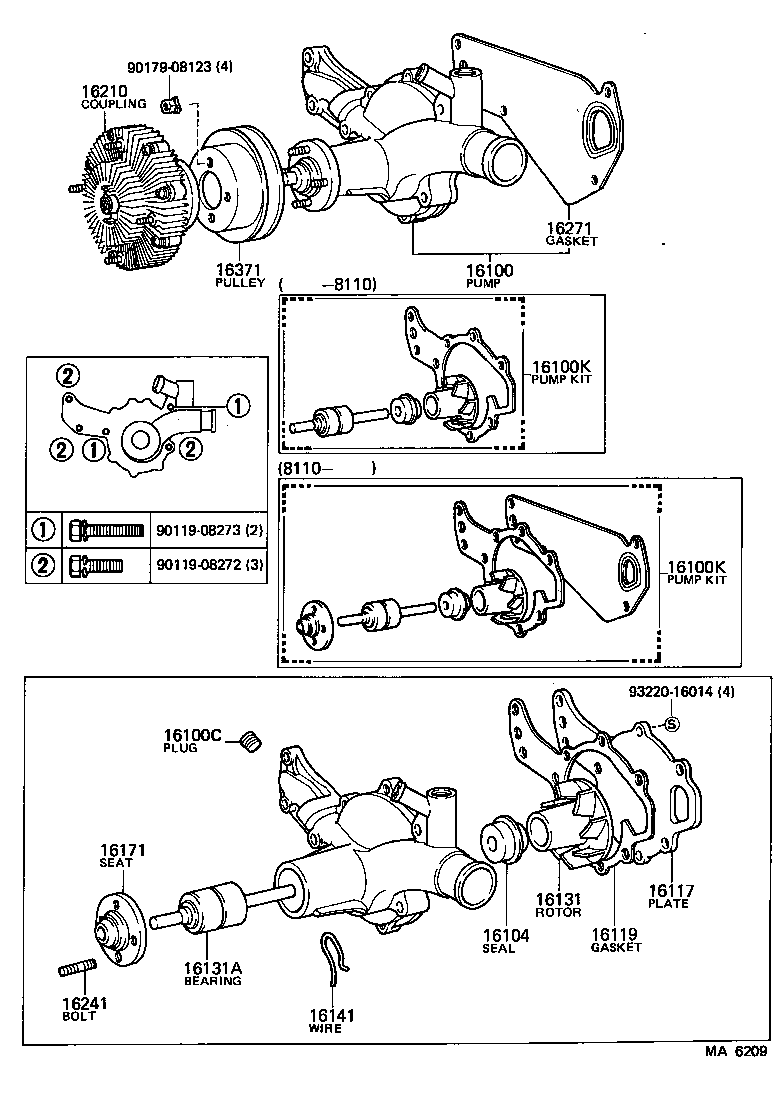

Click highlighted areas on diagram

diagram 16100 16100C 16100K 16100K 16104 16117 16119 16131 16131A 16141 16171 16210 16241 16271 16371 9011908272 9011908273 9017908123 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59095

2B..BJ4#

 1
16100C - PLUG, W/HEAD TAPER SCREW
15184-15010

2B,3B..BJ4#

 1
16100K - PUMP KIT, WATER
04161-56050

2B..BJ4#

 1
16100K - PUMP KIT, WATER
04161-56050

2B..BJ4#

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2B..BJ4#

 1
16117 - PLATE, WATER PUMP
16117-56040

2B,3B..BJ4#

 1
16119 - GASKET, WATER PUMP BODY
16119-56040

2B,3B..BJ4#

 1
16131 - ROTOR, WATER PUMP
16131-56020

2B..BJ4#

 1
16131A - BEARING, WATER PUMP
90369-30028

2B..BJ4#

 1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-60010

2B..BJ4#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-38022

2B..BJ4#

 1
16210 - COUPLING ASSY, FLUID
16210-56020

2B..BJ4#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-33030

2B..BJ4#

 4
16271 - GASKET, WATER PUMP
16271-56020

2B,3B..BJ4#

 1
16371 - PULLEY, FAN
16371-56030

2B..BJ4#

 1
Common parts
90119-08272
90119-08273
90179-08123
93220-16014
