BJ41V-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

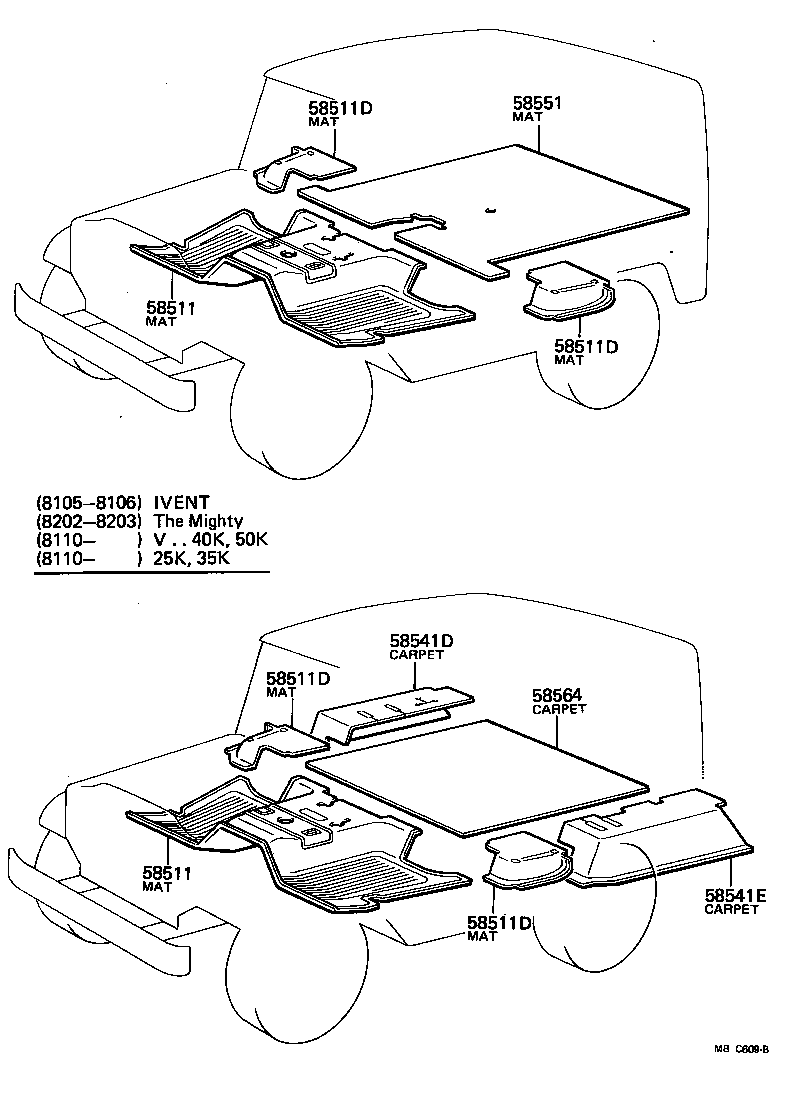

Click highlighted areas on diagram

diagram 58511 58511 58511D 58511D 58511D 58511D 58541D 58541E 58551 58564
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58511-90808

BJ41..VKC

IVENT

 1
58511-90284

BJ4#..V

LUXURY SPEC

 1
58511-90285

BJ4#..V

W/*MW,LUXURY SPEC

 1
58511-90282

BJ4#..40K,50K

W/MECHANICAL WINCH

 1
58511-90278

BJ4#..40K,50K

 1
58511-90800

BJ4#..VKC..(40K,50K)

LUXURY SPEC

 1
58511-90801

BJ4#..VKC..(40K,50K)

W/*MW,LUXURY SPEC

 1
58511 - MAT, FLOOR, FRONT
58511-90808

BJ41..VKC

IVENT

 1
58511-90284

BJ4#..V

LUXURY SPEC

 1
58511-90285

BJ4#..V

W/*MW,LUXURY SPEC

 1
58511-90282

BJ4#..40K,50K

W/MECHANICAL WINCH

 1
58511-90278

BJ4#..40K,50K

 1
58511-90800

BJ4#..VKC..(40K,50K)

LUXURY SPEC

 1
58511-90801

BJ4#..VKC..(40K,50K)

W/*MW,LUXURY SPEC

 1
58511D - MAT SUB-ASSY, FRONT FLOOR, REAR
58514-90801

BJ41..VKC

RH,IVENT

 1
58515-90803

BJ41..VKC

LH,IVENT

 1
58514-90301

BJ4#..V

LH,LUXURY SPEC

 1
58512-90300

BJ4#..40K,50K

RH

 1
58515-90802

BJ4#..VKC..(40K,50K)

LH,LUXURY SPEC

 1
58514-90300

BJ4#

LH

 1
58512-90301

BJ4#..V

RH,LUXURY SPEC

 1
58511D - MAT SUB-ASSY, FRONT FLOOR, REAR
58514-90801

BJ41..VKC

RH,IVENT

 1
58515-90803

BJ41..VKC

LH,IVENT

 1
58514-90301

BJ4#..V

LH,LUXURY SPEC

 1
58512-90300

BJ4#..40K,50K

RH

 1
58515-90802

BJ4#..VKC..(40K,50K)

LH,LUXURY SPEC

 1
58514-90300

BJ4#

LH

 1
58512-90301

BJ4#..V

RH,LUXURY SPEC

 1
58511D - MAT SUB-ASSY, FRONT FLOOR, REAR
58514-90801

BJ41..VKC

RH,IVENT

 1
58515-90803

BJ41..VKC

LH,IVENT

 1
58514-90301

BJ4#..V

LH,LUXURY SPEC

 1
58512-90300

BJ4#..40K,50K

RH

 1
58515-90802

BJ4#..VKC..(40K,50K)

LH,LUXURY SPEC

 1
58514-90300

BJ4#

LH

 1
58512-90301

BJ4#..V

RH,LUXURY SPEC

 1
58511D - MAT SUB-ASSY, FRONT FLOOR, REAR
58514-90801

BJ41..VKC

RH,IVENT

 1
58515-90803

BJ41..VKC

LH,IVENT

 1
58514-90301

BJ4#..V

LH,LUXURY SPEC

 1
58512-90300

BJ4#..40K,50K

RH

 1
58515-90802

BJ4#..VKC..(40K,50K)

LH,LUXURY SPEC

 1
58514-90300

BJ4#

LH

 1
58512-90301

BJ4#..V

RH,LUXURY SPEC

 1
58541D - CARPET, REAR WHEEL HOUSE, RH
62613-90805

BJ41..VKC

IVENT

 1
58541E - CARPET, REAR WHEEL HOUSE, LH
62614-90805

BJ41..VKC

IVENT

 1
58551 - MAT, FLOOR, REAR
58581-90801

BJ41..V

LUXURY SPEC

 1
58501-90302

BJ41,42..40K

 1
58564 - CARPET, REAR FLOOR
58571-90804

BJ41..VKC

IVENT

 1
