BJ41V-KCY (1980)
Toyota Land Cruiser S/T,H/T
Production
Aug 1980
-
Oct 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

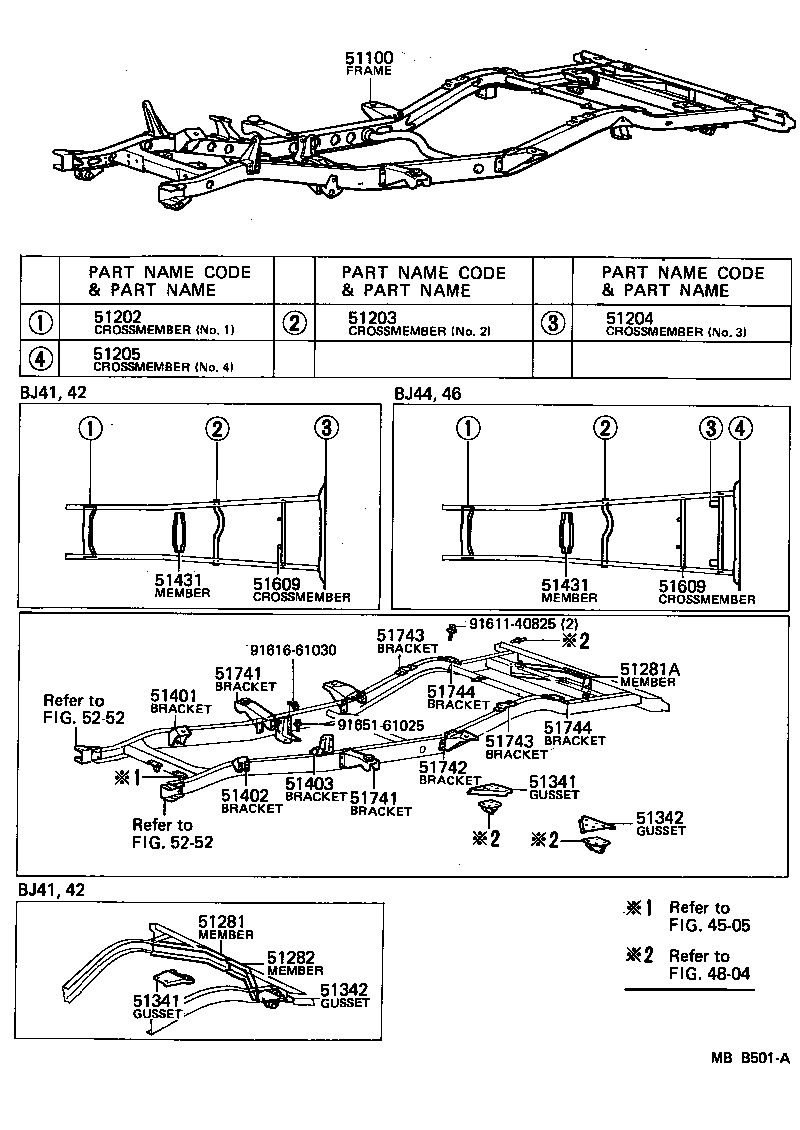

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-60264 |
BJ41 |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-60061 |
BJ4# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60042 |
BJ4# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51209-60031 |
BJ41,42 |
1 | ||
| 51281 - MEMBER, REAR DIAGONAL, RH | ||||
| 51281-60023 |
BJ41,42 |
1 | ||
| 51282 - MEMBER, REAR DIAGONAL, LH | ||||
| 51282-60013 |
BJ41,42 |
1 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51308-60012 |
BJ41,42 |
1 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51308-60012 |
BJ41,42 |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51309-60012 |
BJ41,42 |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51309-60012 |
BJ41,42 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60030 |
BJ4# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60030 |
BJ4# |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51434-60030 |
BJ4# LH |
1 | ||
| 51433-60020 |
BJ4# RH |
1 | ||
| 51431 - MEMBER, ENGINE REAR MOUNTING | ||||
| 51403-60010 |
BJ4# |
1 | ||
| 51431 - MEMBER, ENGINE REAR MOUNTING | ||||
| 51403-60010 |
BJ4# |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51203-60015 |
BJ41,42 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51203-60015 |
BJ41,42 |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51701-60020 |
BJ4# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51701-60020 |
BJ4# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51751-60020 |
BJ4# RH |
1 | ||
| 51752-60020 |
BJ4# LH |
1 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-60011 |
BJ4# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-60011 |
BJ4# |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-60011 |
BJ4# |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-60011 |
BJ4# |
2 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91616-61030 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 4505 | ||||
| 4804 | ||||
| 5252 | ||||
