BJ41-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

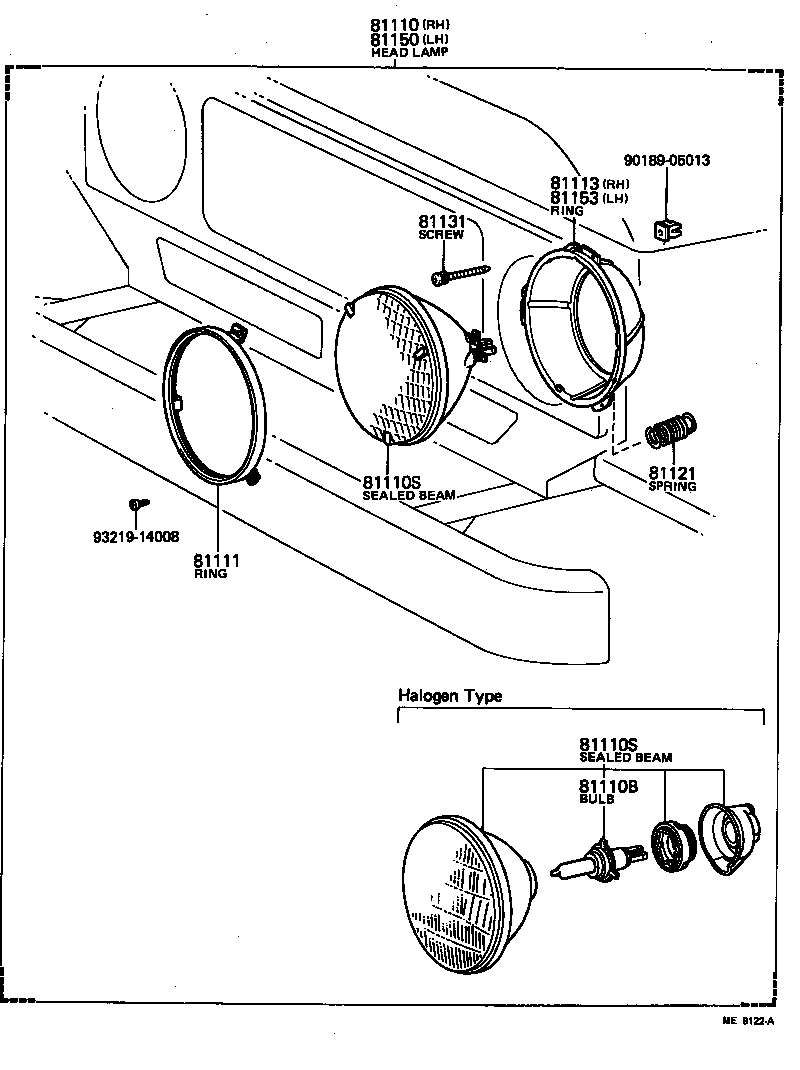

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111 81113 81121 81131 81150 81153 9018905013 9321914008
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-60210

BJ4#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-06008

BJ4#

24V 75/55W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-06008

BJ4#

24V 75/55W

 2
81111 - RING, SEALED BEAM RETAINING
81111-89117

BJ4#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95188

BJ4#

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

BJ4#

 1
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

BJ4#

 2
81150 - HEADLAMP ASSY, LH
81150-60030

BJ4#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89117

BJ4#

 1
Common parts
90189-05013
93219-14008
