BJ41-KCY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

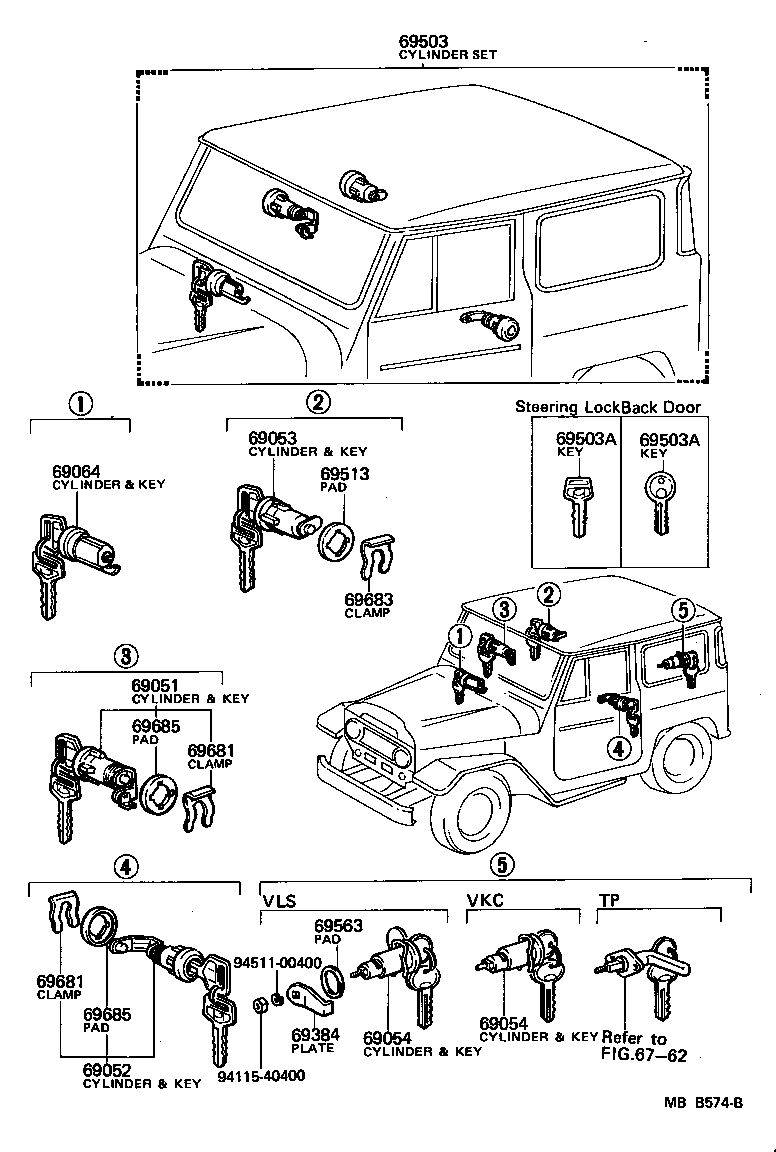

ILLUST NO. 1 OF 2(8008- )

Click highlighted areas on diagram

diagram 6762 69051 69052 69053 69054 69054 69064 69384 69503 69503A 69503A 69513 69563 69681 69681 69683 69685 69685 9411540400 9451100400
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-69015

BJ4#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-69015

BJ4#

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69058-90300

BJ4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60011

BJ4#

 1
69503 - CYLINDER SET, LOCK
69005-90320

BJ4#

 1
69503A - KEY, BLANK
90999-0000604

BJ4#

BACK DOOR,NO.4,BLUE

 1
90999-0000605

BJ4#

BACK DOOR,NO.5,BEIGE

 1
90999-00066

BJ4#

ﾏｽﾀｰｷｰ

 1
90999-0000602

BJ4#

BACK DOOR,NO.2,RED/MAROON

 1
90999-0000606

BJ4#

BACK DOOR,NO.6,BROWN

 1
90999-0000601

BJ4#

BACK DOOR,NO.1,BLACK

 1
90999-0000603

BJ4#

BACK DOOR,NO.3,GRAY

 1
69503A - KEY, BLANK
90999-0000604

BJ4#

BACK DOOR,NO.4,BLUE

 1
90999-0000605

BJ4#

BACK DOOR,NO.5,BEIGE

 1
90999-00066

BJ4#

ﾏｽﾀｰｷｰ

 1
90999-0000602

BJ4#

BACK DOOR,NO.2,RED/MAROON

 1
90999-0000606

BJ4#

BACK DOOR,NO.6,BROWN

 1
90999-0000601

BJ4#

BACK DOOR,NO.1,BLACK

 1
90999-0000603

BJ4#

BACK DOOR,NO.3,GRAY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69685-95400

BJ4#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#

 2
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

BJ4#

 1
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#

 2
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#

 2
Common parts
94115-40400
94511-00400
Linked diagrams
6762

ILLUST NO. 2 OF 2(8008- )

Click highlighted areas on diagram

diagram 00000
Part # Description Qty Price
