BJ41-KCJY (1980)

Toyota Land Cruiser S/T,H/T

Production Aug 1980 - Oct 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

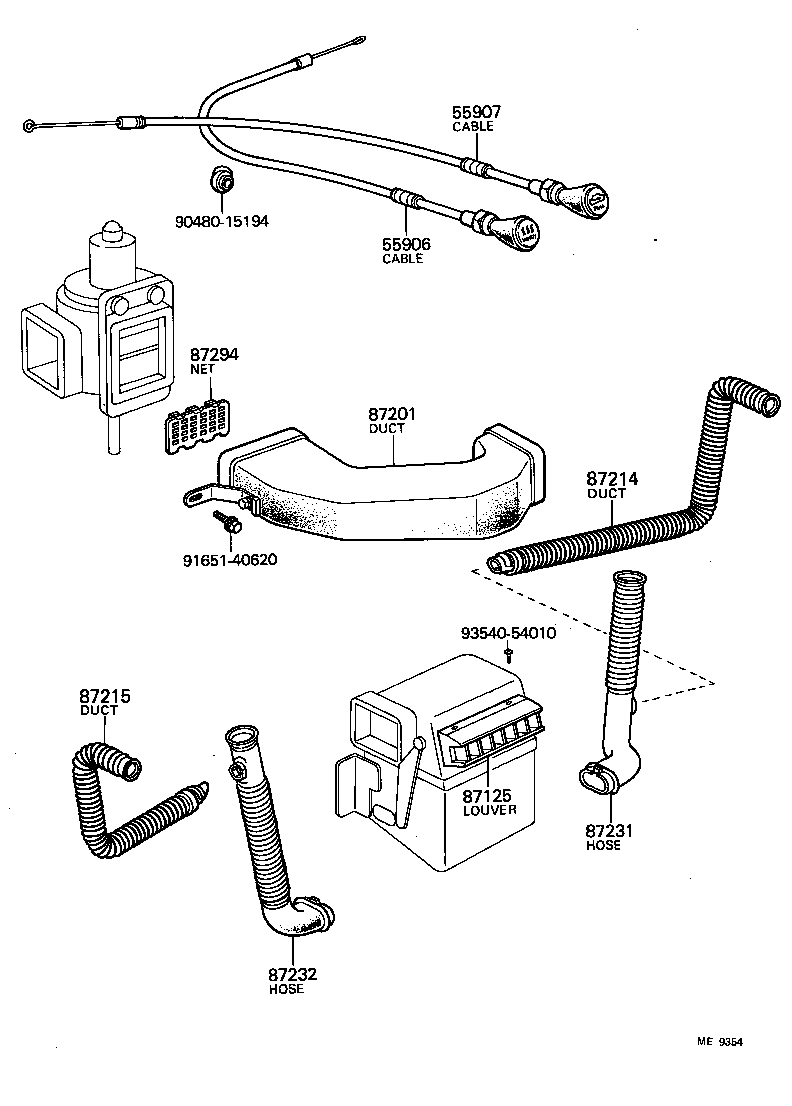

diagram 55906 55907 87125 87201 87214 87215 87231 87232 87294 9048015194 9165140620 9354054010
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
87286-60141

BJ4#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
87296-60033

BJ4#

 1
87125 - LOUVER, VENTILATION
88960-60051

BJ4#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-60062

BJ4#

W/O COOLER & COLD SPEC

 1
87214 - DUCT, AIR, SIDE NO.1 RH
87211-60140

BJ4#..40K,50K

 1
87215 - DUCT, AIR, SIDE NO.1 LH
87211-60131

BJ4#..40K,50K

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-60160

BJ4#

COLD SPEC

 1
87231-60150

BJ4#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-60170

BJ4#

COLD SPEC

 1
87231-60131

BJ4#

W/O COOLER

 1
87231-60140

BJ4#

 1
87231-60171

BJ4#

COLD SPEC

 1
87294 - NET, AIR DUCT
87294-60031

BJ4#

 1
Common parts
90480-15194
91651-40620
93540-54010
