BJ41-KCJY (1980)
Toyota Land Cruiser S/T,H/T
Production
Aug 1980
-
Oct 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

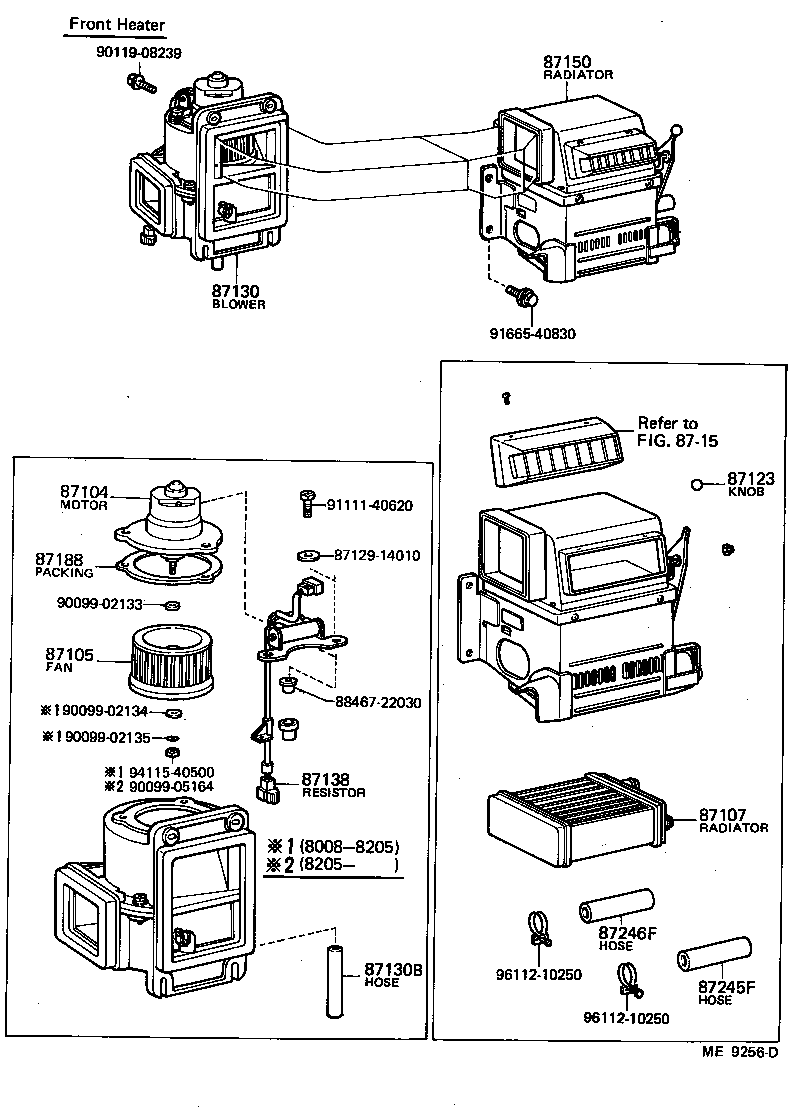

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-60141 |
BJ4# FR HEATER |
1 | ||
| 87104-60190 |
BJ4# FR HEATER,COLD SPEC |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-22010 |
BJ4# FR HEATER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60093 |
BJ4# |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 87123-10050 |
BJ4# FR HEATER |
1 | ||
| 55905-12070 |
BJ4# RR HEATER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60111 |
BJ4# |
1 | ||
| 87130-60180 |
BJ4# COLD SPEC |
1 | ||
| 87130B - HOSE, HEATER BLOWER DRAIN | ||||
| 87294-60040 |
BJ4# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-60150 |
BJ4# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60068 |
BJ4# |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87145-60031 |
BJ4# |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30100 |
BJ4# *H,L=75 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30100 |
BJ4# *H,L=75 |
1 | ||
| Common parts | ||||
| 87129-14010 | ||||
| 88467-22030 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-05164 | ||||
| 90119-08239 | ||||
| 91111-40620 | ||||
| 91665-40830 | ||||
| 94115-40500 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(8008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-90A04 |
BJ4# |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
BJ4# |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60100 |
BJ4# |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-60080 |
BJ4# |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 87123-10050 |
BJ4# FR HEATER |
1 | ||
| 55905-12070 |
BJ4# RR HEATER |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-60040 |
BJ4# RR HEATER |
1 | ||
| 87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT) | ||||
| 99552-20100 |
BJ4# *H,L=60 |
1 | ||
| 87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT) | ||||
| 99552-20100 |
BJ4# *H,L=60 |
1 | ||
| Common parts | ||||
| 90460-22073 | ||||
| 91661-40616 | ||||
