URJ202W-GNTVK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(0709-1508)AX,ZX

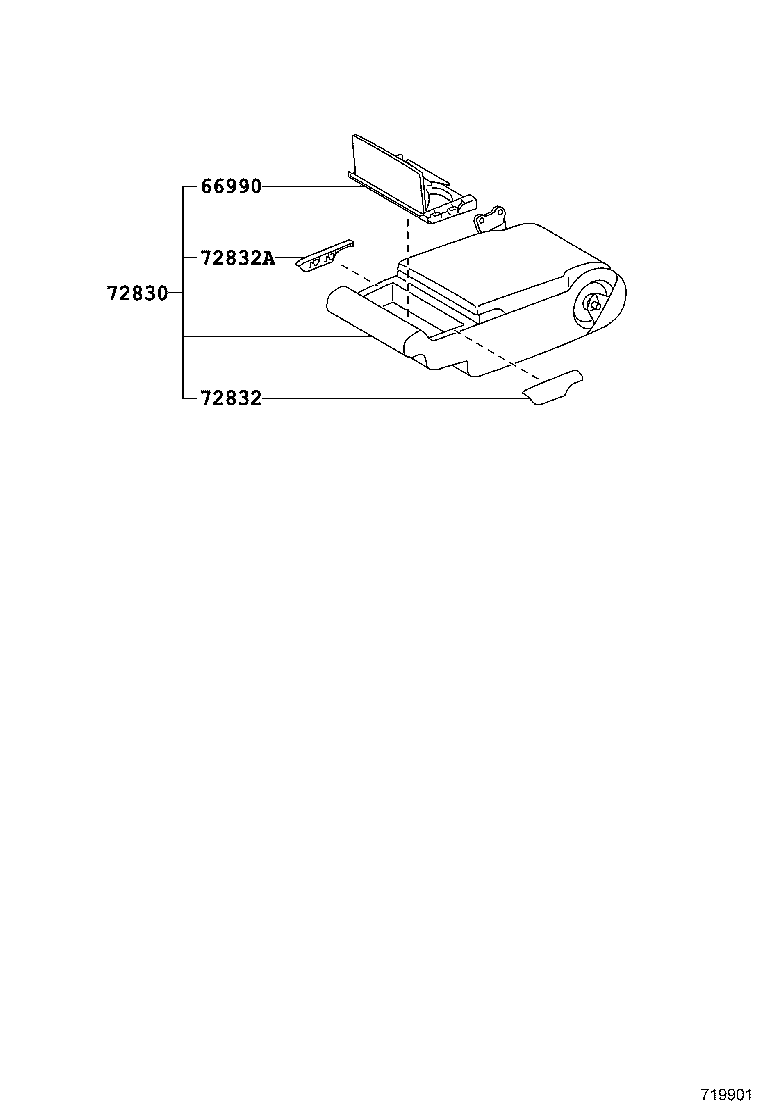

Click highlighted areas on diagram

ﾘﾔ NO.1ｼｰﾄ ｾﾝﾀ ｱｰﾑﾚｽﾄ

diagram 66990 72830 72832 72832A
Part # Description Qty Price
66990 - HOLDER ASSY, CUP
66990-60020C0

URJ202..ZX

BLACK,TRIM2#,4#

 1
66990-60020A1

URJ202..AX,ZX

SHELL,TRIM0#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-60710E0

URJ202..ZX

特設ﾊﾟｯｹｰｼﾞ−ZX“BRUNO CROSS”*(H),BROWN,TRIM44

 1
72830-60710E0

URJ202..ZX

特設ﾊﾟｯｹｰｼﾞ−ZX“BRUNO CROSS”*(N),BROWN,TRIM44

 1
72830-60270A3

URJ202..ZX

SHELL,TRIM0#

 1
72830-60710E0

URJ202..ZX

特設ﾊﾟｯｹｰｼﾞ−ZX“BRUNO CROSS”*(P),BROWN,TRIM44

 1
72830-60270C5

URJ202..ZX

BLACK,TRIM2#,4#

 1
72832 - PLATE, REAR SEAT ARMREST
72831-60060A1

URJ202..AX,ZX

SHELL,TRIM0#

 1
72831-60060C0

URJ202..ZX

BLACK,TRIM2#,4#

 1
72832A - PLATE, NO.1 SEAT ARMREST
72832-60030A1

URJ202..AX,ZX

SHELL,TRIM0#

 1
72832-60030C0

URJ202..ZX

BLACK,TRIM2#,4#

 1
