Toyota Land cruiser URJ202 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
LAND CRUISER
URJ202W-GNTAK (2012)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015

Engine 1URFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

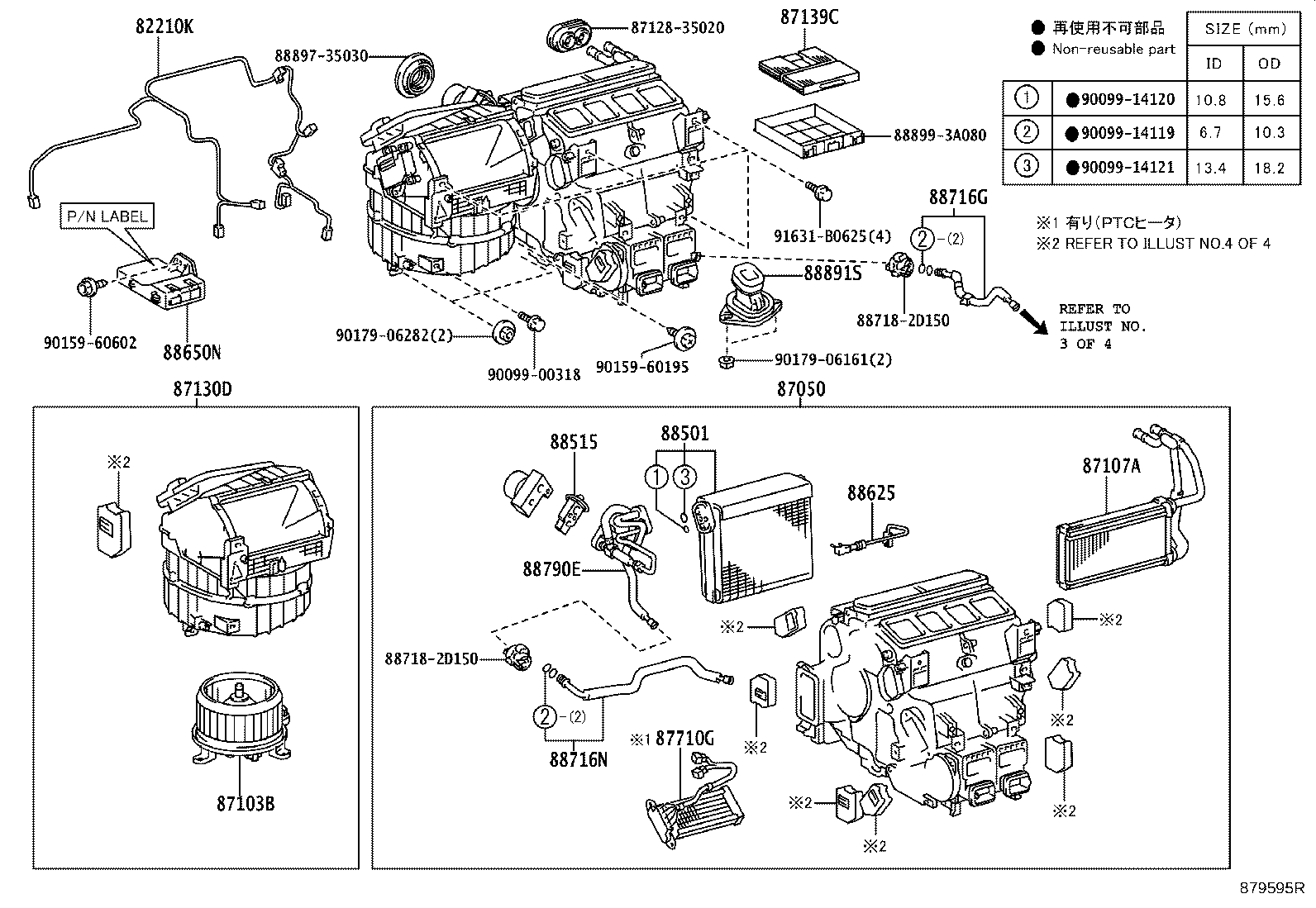

ILLUST NO. 1 OF 4(1201-1312)

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ｸｰﾙﾎﾞｯｸｽ)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60082	URJ202..AX,ZX	01/2013 - 08/2015	1
82212-60080	URJ202..AX,ZX	01/2012 - 09/2012	1
82212-60081	URJ202..AX,ZX	09/2012 - 01/2013	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60430	URJ202..AX,ZX 寒冷地仕様	01/2012 - 01/2013	1
87050-60420	URJ202..AX,ZX	01/2012 - 01/2013	1
87050-60410	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60540	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60421	URJ202..AX,ZX	01/2013 - 12/2013	1
87050-60431	URJ202..AX,ZX 寒冷地仕様	01/2013 - 12/2013	1
87050-60411	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87050-60820	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60830	URJ202..AX,ZX	12/2013 - 08/2015	1
87050-60820	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60541	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60470	URJ202	01/2012 - 11/2014	1
87103-60471	URJ202	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60410	URJ202	01/2012 - 01/2013	1
87107-60411	URJ202	01/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	URJ202	01/2013 - 11/2014	1
87130-60524	URJ202	12/2014 - 08/2015	1
87130-60522	URJ202	01/2012 - 01/2013	1
87139C - FILTER, CLEAN AIR
87139-52040	URJ202 花粉ﾌｨﾙﾀ,花粉ﾌｨﾙﾀ	01/2012 - 08/2015	1
87139-50100	URJ202 花粉･脱臭ﾌｨﾙﾀ,脱臭 & 花粉ﾌｨﾙﾀ	05/2012 - 08/2015	1
87139-50060	URJ202 脱臭ﾌｨﾙﾀ,脱臭ﾌｨﾙﾀ	01/2012 - 04/2012	1
87139-76010	URJ202 微細塵ﾌｨﾙﾀ,補給専用微細塵ﾌｨﾙﾀ	01/2012 - 08/2015	1
87710G - QUICK HEATER ASSY
87710-60060	URJ202 寒冷地仕様	01/2015 - 08/2015	1
87710-50020	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 12/2014	1
87710-50020	URJ202 寒冷地仕様	01/2012 - 12/2014	1
87710-60060	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2015 - 08/2015	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60362	URJ202	01/2012 - 08/2015	1
88515 - VALVE, COOLER EXPANSION
88515-50190	URJ202	01/2012 - 08/2015	1
88625 - THERMISTOR, COOLER, NO.1
88620-60020	URJ202	01/2012 - 08/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60G91	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G91	01/2013 - 08/2015	1
88650-60G90	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G90	01/2012 - 01/2013	1
88650-60J11	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J11	01/2013 - 08/2015	1
88650-60J10	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J10	01/2012 - 01/2013	1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-6C270	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716-6C270	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716N - PIPE, COOLER REFRIGERANT LIQUID, N
88716-6C170	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716-6C170	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER
88710-60A00	URJ202	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88891S - COVER, COOLER, NO.1
88891-60090	URJ202	01/2012 - 08/2015	1
Common parts
87128-35020
88718-2D150
88897-35030
88899-3A080
90099-00318
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90179-06161
90179-06282
91631-B0625

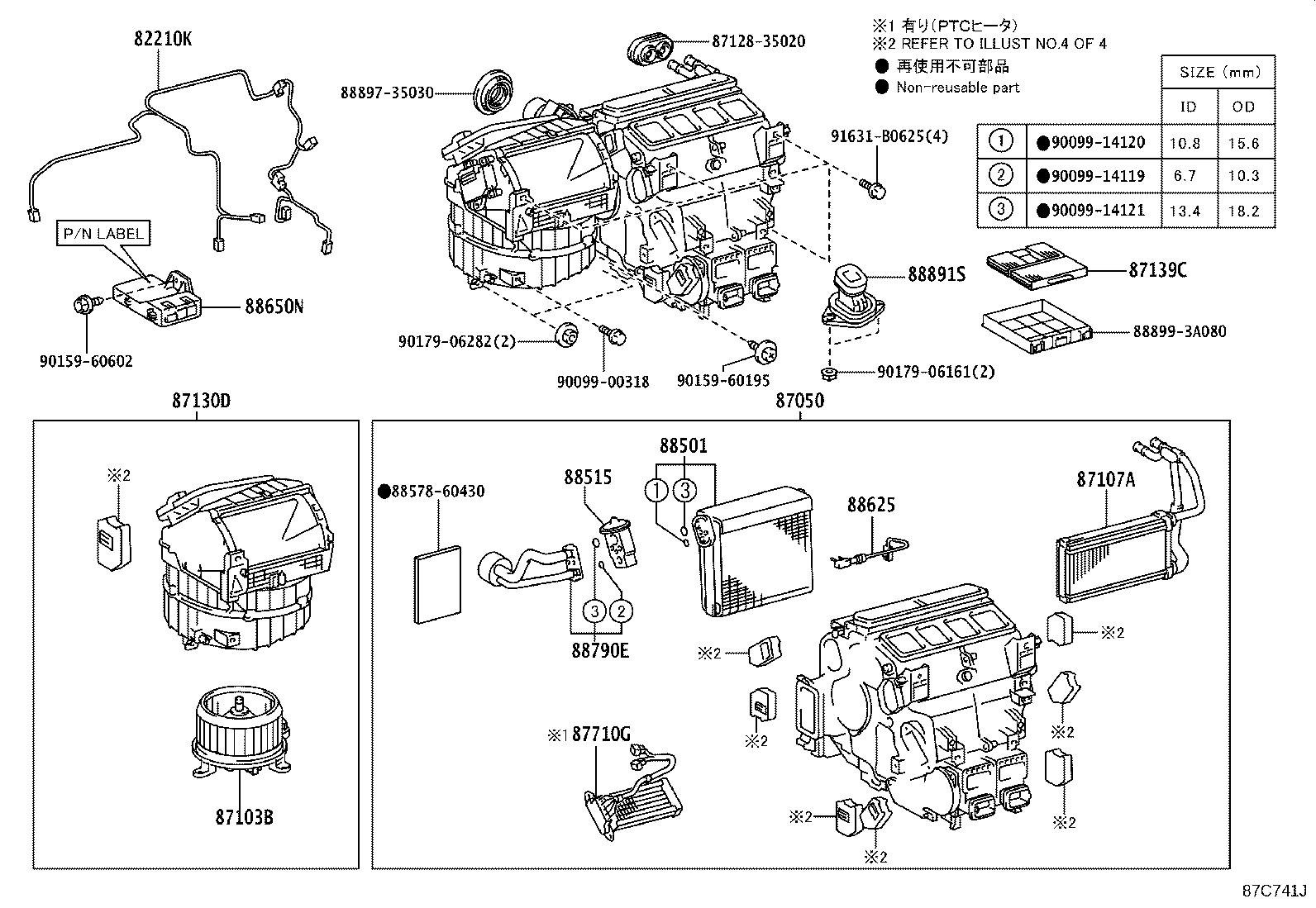

ILLUST NO. 1 OF 4(1201-1312)

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ﾅｼ(ｸｰﾙﾎﾞｯｸｽ)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60082	URJ202..AX,ZX	01/2013 - 08/2015	1
82212-60080	URJ202..AX,ZX	01/2012 - 09/2012	1
82212-60081	URJ202..AX,ZX	09/2012 - 01/2013	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60430	URJ202..AX,ZX 寒冷地仕様	01/2012 - 01/2013	1
87050-60420	URJ202..AX,ZX	01/2012 - 01/2013	1
87050-60410	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60540	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60421	URJ202..AX,ZX	01/2013 - 12/2013	1
87050-60431	URJ202..AX,ZX 寒冷地仕様	01/2013 - 12/2013	1
87050-60411	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87050-60820	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60830	URJ202..AX,ZX	12/2013 - 08/2015	1
87050-60820	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60541	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60470	URJ202	01/2012 - 11/2014	1
87103-60471	URJ202	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60410	URJ202	01/2012 - 01/2013	1
87107-60411	URJ202	01/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	URJ202	01/2013 - 11/2014	1
87130-60524	URJ202	12/2014 - 08/2015	1
87130-60522	URJ202	01/2012 - 01/2013	1
87139C - FILTER, CLEAN AIR
87139-52040	URJ202 花粉ﾌｨﾙﾀ,花粉ﾌｨﾙﾀ	01/2012 - 08/2015	1
87139-50100	URJ202 花粉･脱臭ﾌｨﾙﾀ,脱臭 & 花粉ﾌｨﾙﾀ	05/2012 - 08/2015	1
87139-50060	URJ202 脱臭ﾌｨﾙﾀ,脱臭ﾌｨﾙﾀ	01/2012 - 04/2012	1
87139-76010	URJ202 微細塵ﾌｨﾙﾀ,補給専用微細塵ﾌｨﾙﾀ	01/2012 - 08/2015	1
87710G - QUICK HEATER ASSY
87710-60060	URJ202 寒冷地仕様	01/2015 - 08/2015	1
87710-50020	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 12/2014	1
87710-50020	URJ202 寒冷地仕様	01/2012 - 12/2014	1
87710-60060	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2015 - 08/2015	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60362	URJ202	01/2012 - 08/2015	1
88515 - VALVE, COOLER EXPANSION
88515-50190	URJ202	01/2012 - 08/2015	1
88625 - THERMISTOR, COOLER, NO.1
88620-60020	URJ202	01/2012 - 08/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60G91	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G91	01/2013 - 08/2015	1
88650-60G90	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G90	01/2012 - 01/2013	1
88650-60J11	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J11	01/2013 - 08/2015	1
88650-60J10	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J10	01/2012 - 01/2013	1
88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER
88710-60A00	URJ202	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88891S - COVER, COOLER, NO.1
88891-60090	URJ202	01/2012 - 08/2015	1
Common parts
87128-35020
88578-60430
88897-35030
88899-3A080
90099-00318
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90179-06161
90179-06282
91631-B0625

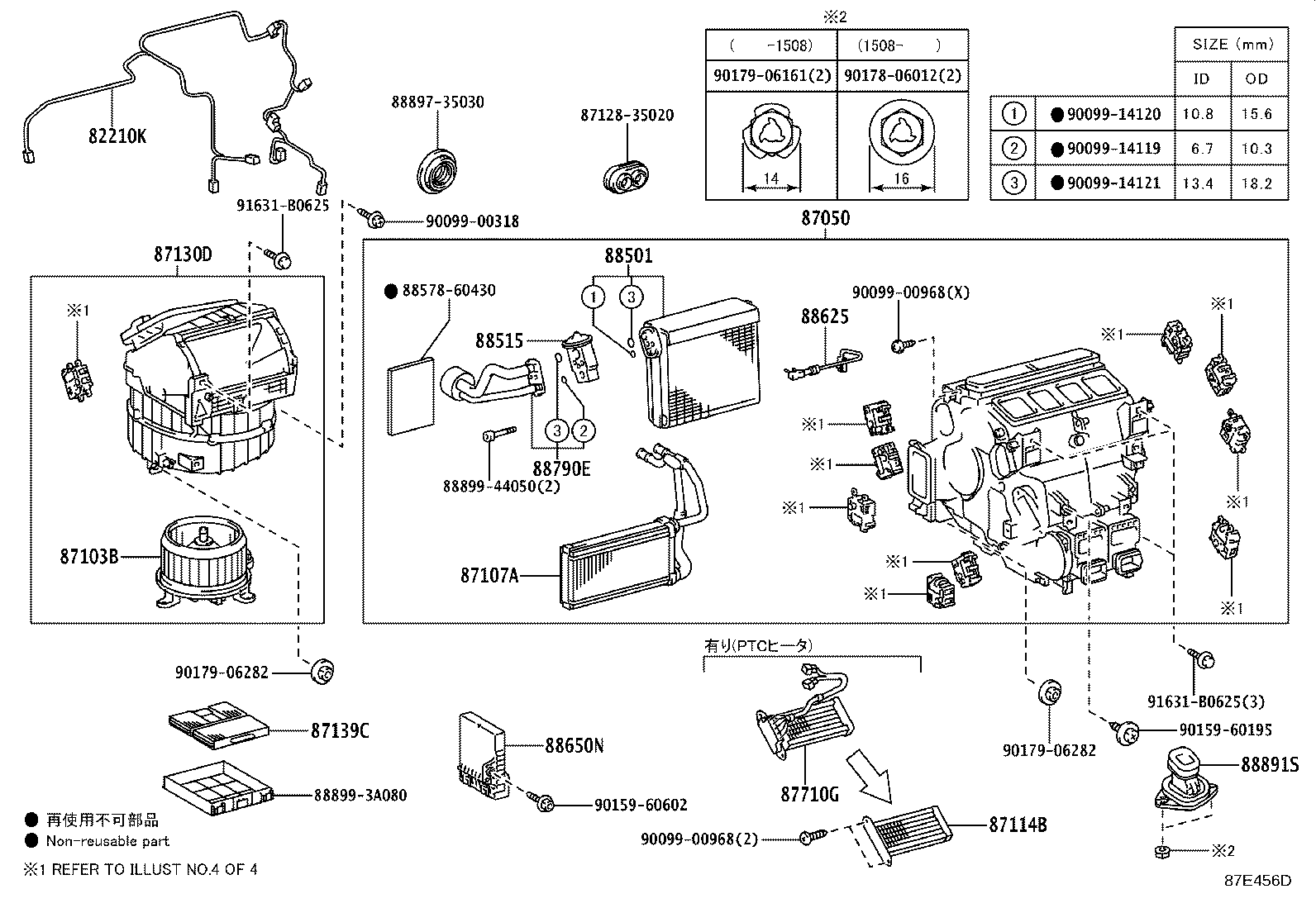

ILLUST NO. 1 OF 4(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ﾅｼ(ｸｰﾙﾎﾞｯｸｽ)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60082	URJ202..AX,ZX	01/2013 - 08/2015	1
82212-60080	URJ202..AX,ZX	01/2012 - 09/2012	1
82212-60081	URJ202..AX,ZX	09/2012 - 01/2013	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60430	URJ202..AX,ZX 寒冷地仕様	01/2012 - 01/2013	1
87050-60420	URJ202..AX,ZX	01/2012 - 01/2013	1
87050-60410	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60540	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60421	URJ202..AX,ZX	01/2013 - 12/2013	1
87050-60431	URJ202..AX,ZX 寒冷地仕様	01/2013 - 12/2013	1
87050-60411	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87050-60820	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60830	URJ202..AX,ZX	12/2013 - 08/2015	1
87050-60820	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60541	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60470	URJ202	01/2012 - 11/2014	1
87103-60471	URJ202	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60410	URJ202	01/2012 - 01/2013	1
87107-60411	URJ202	01/2013 - 08/2015	1
87114B - COVER, HEATER
87114-60070	URJ202	12/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	URJ202	01/2013 - 11/2014	1
87130-60524	URJ202	12/2014 - 08/2015	1
87130-60522	URJ202	01/2012 - 01/2013	1
87139C - FILTER, CLEAN AIR
87139-52040	URJ202 花粉ﾌｨﾙﾀ,花粉ﾌｨﾙﾀ	01/2012 - 08/2015	1
87139-50100	URJ202 花粉･脱臭ﾌｨﾙﾀ,脱臭 & 花粉ﾌｨﾙﾀ	05/2012 - 08/2015	1
87139-50060	URJ202 脱臭ﾌｨﾙﾀ,脱臭ﾌｨﾙﾀ	01/2012 - 04/2012	1
87139-76010	URJ202 微細塵ﾌｨﾙﾀ,補給専用微細塵ﾌｨﾙﾀ	01/2012 - 08/2015	1
87710G - QUICK HEATER ASSY
87710-60060	URJ202 寒冷地仕様	01/2015 - 08/2015	1
87710-50020	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 12/2014	1
87710-50020	URJ202 寒冷地仕様	01/2012 - 12/2014	1
87710-60060	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2015 - 08/2015	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60362	URJ202	01/2012 - 08/2015	1
88515 - VALVE, COOLER EXPANSION
88515-50190	URJ202	01/2012 - 08/2015	1
88625 - THERMISTOR, COOLER, NO.1
88620-60020	URJ202	01/2012 - 08/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60G91	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G91	01/2013 - 08/2015	1
88650-60G90	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G90	01/2012 - 01/2013	1
88650-60J11	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J11	01/2013 - 08/2015	1
88650-60J10	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J10	01/2012 - 01/2013	1
88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER
88710-60A00	URJ202	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88891S - COVER, COOLER, NO.1
88891-60090	URJ202	01/2012 - 08/2015	1
Common parts
87128-35020
88578-60430
88897-35030
88899-3A080
88899-44050
90099-00318
90099-00968
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90178-06012
90179-06161
90179-06282
91631-B0625

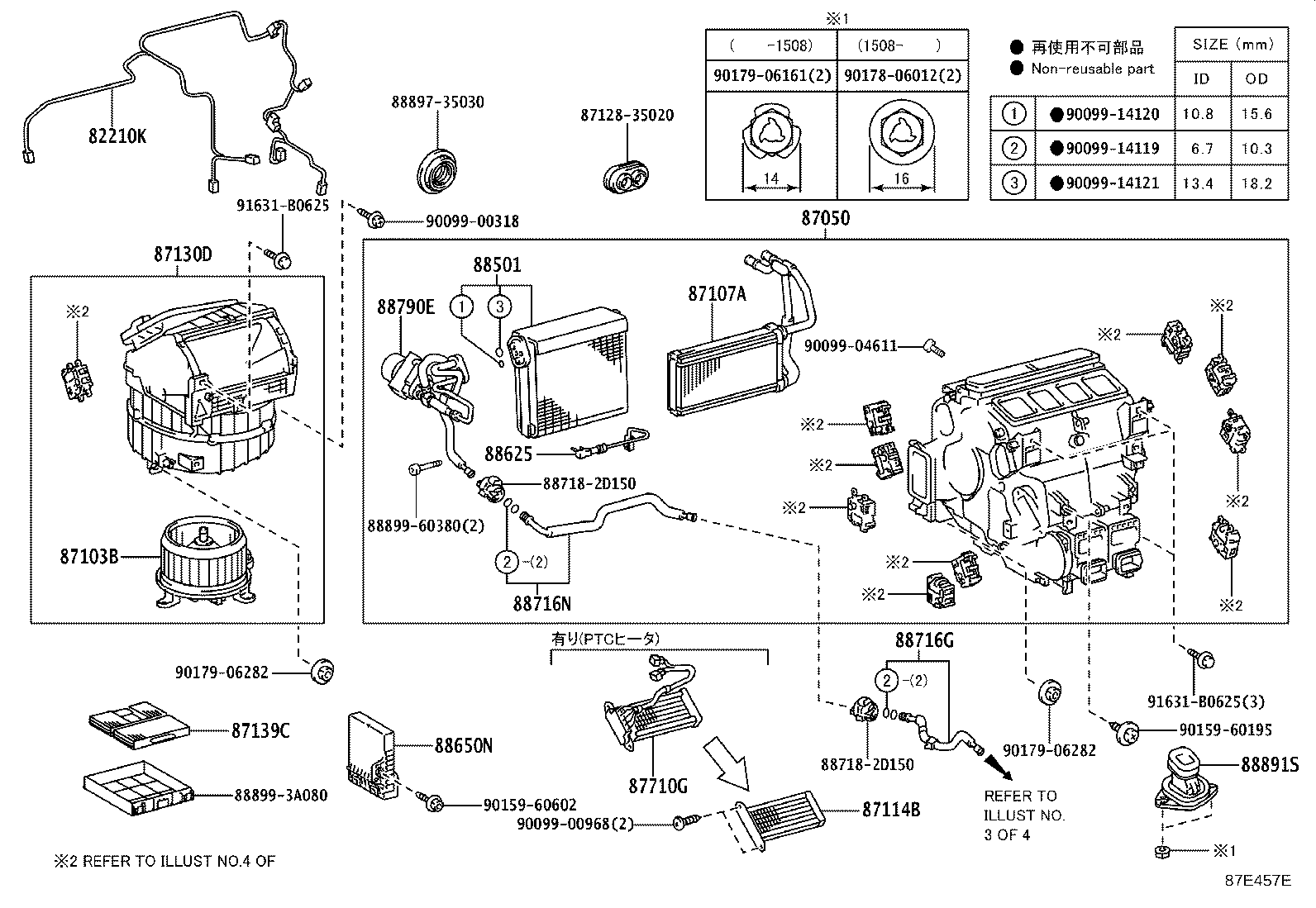

ILLUST NO. 1 OF 4(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ｸｰﾙﾎﾞｯｸｽ)

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-60082	URJ202..AX,ZX	01/2013 - 08/2015	1
82212-60080	URJ202..AX,ZX	01/2012 - 09/2012	1
82212-60081	URJ202..AX,ZX	09/2012 - 01/2013	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-60430	URJ202..AX,ZX 寒冷地仕様	01/2012 - 01/2013	1
87050-60420	URJ202..AX,ZX	01/2012 - 01/2013	1
87050-60410	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60540	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 01/2013	1
87050-60421	URJ202..AX,ZX	01/2013 - 12/2013	1
87050-60431	URJ202..AX,ZX 寒冷地仕様	01/2013 - 12/2013	1
87050-60411	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87050-60820	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60830	URJ202..AX,ZX	12/2013 - 08/2015	1
87050-60820	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	12/2013 - 08/2015	1
87050-60541	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2013 - 12/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-60470	URJ202	01/2012 - 11/2014	1
87103-60471	URJ202	12/2014 - 08/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-60410	URJ202	01/2012 - 01/2013	1
87107-60411	URJ202	01/2013 - 08/2015	1
87114B - COVER, HEATER
87114-60070	URJ202	12/2013 - 08/2015	1
87130D - BLOWER ASSY
87130-60523	URJ202	01/2013 - 11/2014	1
87130-60524	URJ202	12/2014 - 08/2015	1
87130-60522	URJ202	01/2012 - 01/2013	1
87139C - FILTER, CLEAN AIR
87139-52040	URJ202 花粉ﾌｨﾙﾀ,花粉ﾌｨﾙﾀ	01/2012 - 08/2015	1
87139-50100	URJ202 花粉･脱臭ﾌｨﾙﾀ,脱臭 & 花粉ﾌｨﾙﾀ	05/2012 - 08/2015	1
87139-50060	URJ202 脱臭ﾌｨﾙﾀ,脱臭ﾌｨﾙﾀ	01/2012 - 04/2012	1
87139-76010	URJ202 微細塵ﾌｨﾙﾀ,補給専用微細塵ﾌｨﾙﾀ	01/2012 - 08/2015	1
87710G - QUICK HEATER ASSY
87710-60060	URJ202 寒冷地仕様	01/2015 - 08/2015	1
87710-50020	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 12/2014	1
87710-50020	URJ202 寒冷地仕様	01/2012 - 12/2014	1
87710-60060	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2015 - 08/2015	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60362	URJ202	01/2012 - 08/2015	1
88625 - THERMISTOR, COOLER, NO.1
88620-60020	URJ202	01/2012 - 08/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-60G91	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G91	01/2013 - 08/2015	1
88650-60G90	URJ202..AX,ZX 品番ﾗﾍﾞﾙ=88650−60G90	01/2012 - 01/2013	1
88650-60J11	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J11	01/2013 - 08/2015	1
88650-60J10	URJ202..AX,ZX 寒冷地仕様,品番ﾗﾍﾞﾙ=88650−60J10	01/2012 - 01/2013	1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-6C270	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716-6C270	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716N - PIPE, COOLER REFRIGERANT LIQUID, N
88716-6C170	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88716-6C170	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER
88710-60A00	URJ202	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88710-60A10	URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)	01/2012 - 08/2015	1
88891S - COVER, COOLER, NO.1
88891-60090	URJ202	01/2012 - 08/2015	1
Common parts
87128-35020
88718-2D150
88897-35030
88899-3A080
88899-60380
90099-00318
90099-00968
90099-04611
90099-14119
90099-14120
90099-14121
90159-60195
90159-60602
90178-06012
90179-06161
90179-06282
91631-B0625

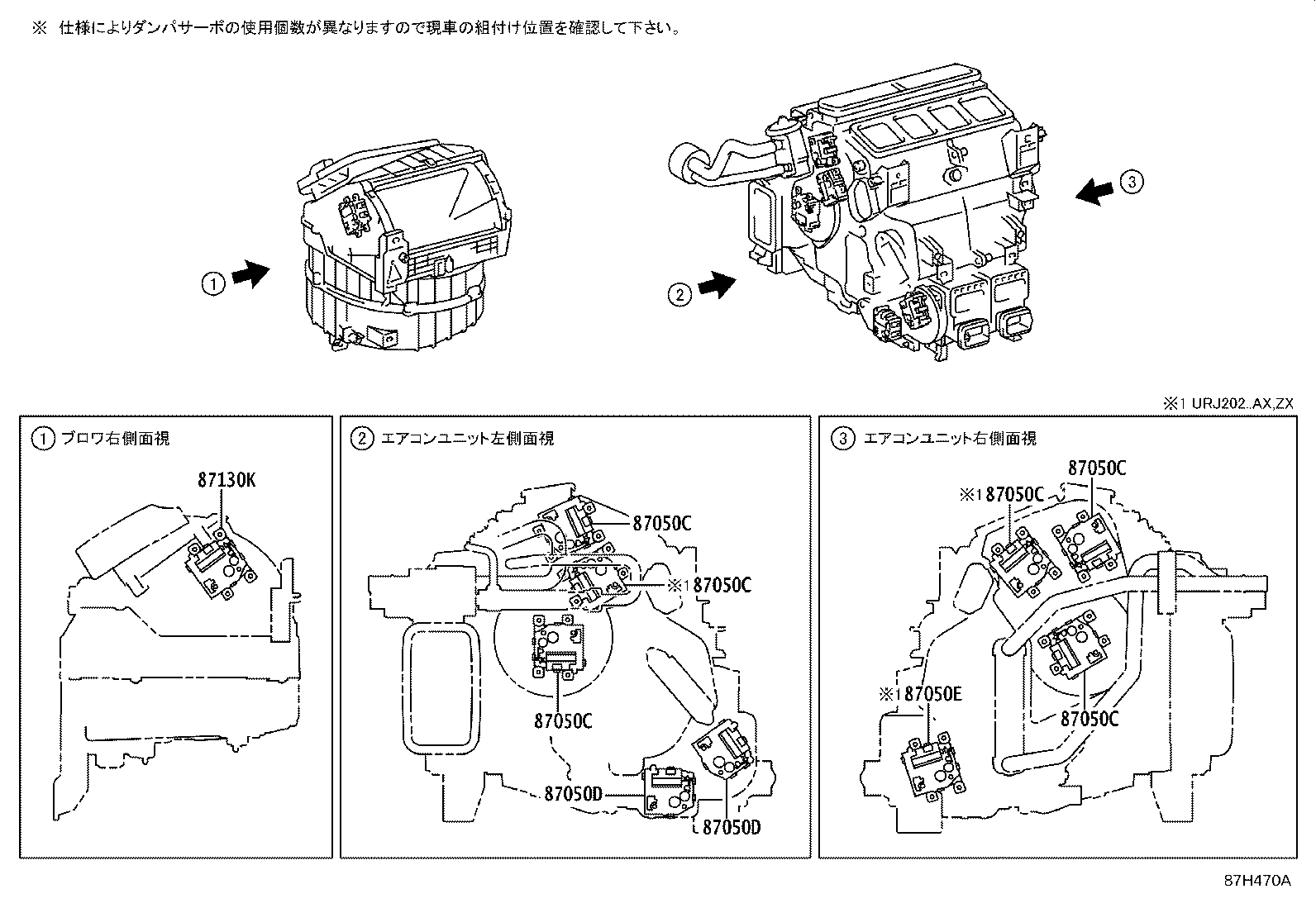

ILLUST NO. 4 OF 4(1201- )

Click highlighted areas on diagram

ﾀﾞﾝﾊﾟｻｰﾎﾞ

Part #	Description	Period	Qty
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-50550	URJ202..AX,ZX	01/2013 - 12/2013	7
87106-50550	URJ202..AX,ZX	12/2013 - 08/2015	6
87106-50390	URJ202..AX,ZX	01/2012 - 01/2013	7
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-60270	URJ202	01/2013 - 08/2015	2
87106-60260	URJ202	01/2012 - 01/2013	2
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-60270	URJ202	01/2013 - 08/2015	2
87106-60260	URJ202	01/2012 - 01/2013	2
87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87106-60340	URJ202..AX,ZX	12/2013 - 08/2015	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-50390	URJ202	01/2012 - 01/2013	1
87106-50550	URJ202	01/2013 - 08/2015	1

URJ202W-GNTAK (2012)

ILLUST NO. 1 OF 4(1201-1312)

ILLUST NO. 1 OF 4(1201-1312)

ILLUST NO. 1 OF 4(1312- )

ILLUST NO. 1 OF 4(1312- )

ILLUST NO. 4 OF 4(1201- )

Part Price Details
