URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

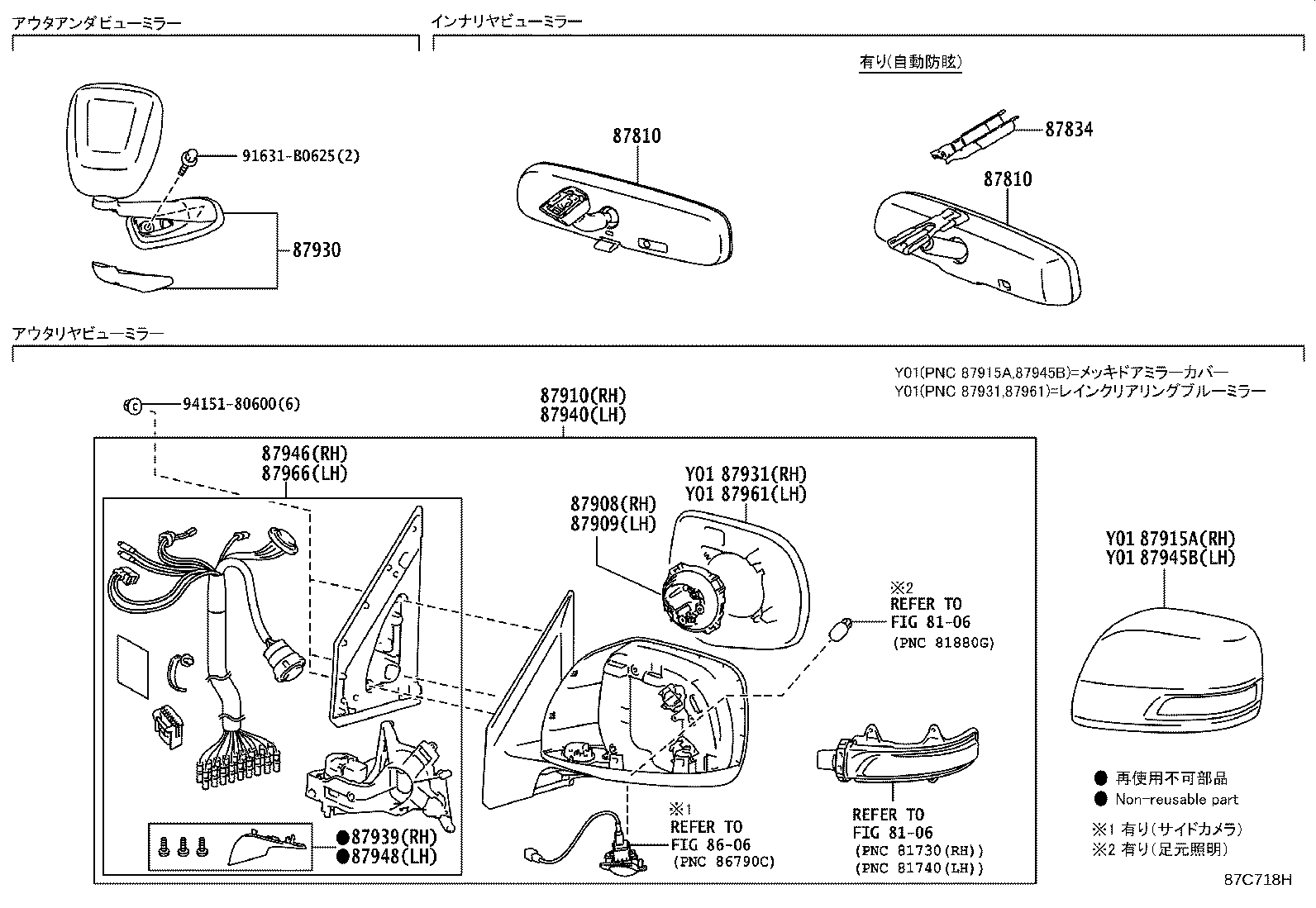

Click highlighted areas on diagram

diagram 8106 8106 8606 87810 87810 87834 87908 87909 87910 87915A 87930 87931 87939 87940 87945B 87946 87948 87961 87966 91631B0625 9415180600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60191

URJ202..AX,GX

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60191

URJ202..AX,GX

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87908-60B40

URJ202..AX,ZX

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87908-60B40

URJ202..AX,ZX

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-60G50

URJ202..AX

塗装不要

 1
87910-60G80

URJ202..AX

塗装不要,寒冷地仕様

 1
87910-60J30

URJ202..AX

塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87910-60J30

URJ202..AX

塗装不要,ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87915A - COVER, OUTER MIRROR, RH
87915-60050B0

URJ202

SILVER ME.,1F7

 1
87915-60050B1

URJ202

GRAY ME.,1G3

 1
87915-60050C1

URJ202

ATTITUDE BLACK MC.,218

 1
87915-60050A1

URJ202

WHITE PEARL CS.,070

 1
87915-60050G0

URJ202..AX,GX

GREEN M.M.,6V2

 1
87915-60050E1

URJ202

BEIGE M.M.,4R3

 1
87915-60050C0

URJ202

BLACK,202

 1
87915-60050D1

URJ202

DK. RED M.M.,3Q3

 1
87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
87930-60130A0

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,WHITE PEARL CS.,070

 1
87930-60130B0

URJ202

SILVER ME.,1F7

 1
87930-60130B0

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,SILVER ME.,1F7

 1
87930-60130A0

URJ202

WHITE PEARL CS.,070

 1
87930-60130B1

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,GRAY ME.,1G3

 1
87930-60130C1

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,ATTITUDE BLACK MC.,218

 1
87930-60130C1

URJ202

ATTITUDE BLACK MC.,218

 1
87930-60130D0

URJ202

DK. RED M.M.,3Q3

 1
87930-60130E0

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,BEIGE M.M.,4R3

 1
87930-60130C0

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,BLACK,202

 1
87930-60130E0

URJ202

BEIGE M.M.,4R3

 1
87930-60130D0

URJ202..AX,ZX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き,DK. RED M.M.,3Q3

 1
87930-60130C0

URJ202

BLACK,202

 1
87930-60130B1

URJ202

GRAY ME.,1G3

 1
87931 - OUTER MIRROR, RH
87931-60B10

URJ202..AX,GX

 1
87931-60B60

URJ202..AX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87931-60B60

URJ202..AX

寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87931-60B60

URJ202..AX

寒冷地仕様

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-60F60

URJ202

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-60G80

URJ202..AX

塗装不要,寒冷地仕様

 1
87940-60G50

URJ202..AX

塗装不要

 1
87940-60J30

URJ202..AX

塗装不要,ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87940-60J30

URJ202..AX

塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87945B - COVER, OUTER MIRROR, LH
87945-60050E1

URJ202

BEIGE M.M.,4R3

 1
87945-60050B1

URJ202

GRAY ME.,1G3

 1
87945-60050D1

URJ202

DK. RED M.M.,3Q3

 1
87945-60050A1

URJ202

WHITE PEARL CS.,070

 1
87945-60050C1

URJ202

ATTITUDE BLACK MC.,218

 1
87945-60050G0

URJ202..AX,GX

GREEN M.M.,6V2

 1
87945-60050C0

URJ202

BLACK,202

 1
87945-60050B0

URJ202

SILVER ME.,1F7

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-60G80

URJ202..AX

寒冷地仕様

 1
87946-60G50

URJ202..AX

 1
87946-60J30

URJ202..AX

寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87946-60J30

URJ202..AX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-60F60

URJ202

 1
87961 - MIRROR OUTER, LH
87961-60B50

URJ202..AX

寒冷地仕様

 1
87961-60B50

URJ202..AX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87961-60B50

URJ202..AX

寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87961-60B00

URJ202..AX,GX

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-60G80

URJ202..AX

寒冷地仕様

 1
87966-60J30

URJ202..AX

ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
87966-60G50

URJ202..AX

 1
87966-60J30

URJ202..AX

寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
Common parts
91631-B0625
94151-80600
Linked diagrams
8106
8606
