URJ202W-GNTAK (2012)
Toyota Land Cruiser

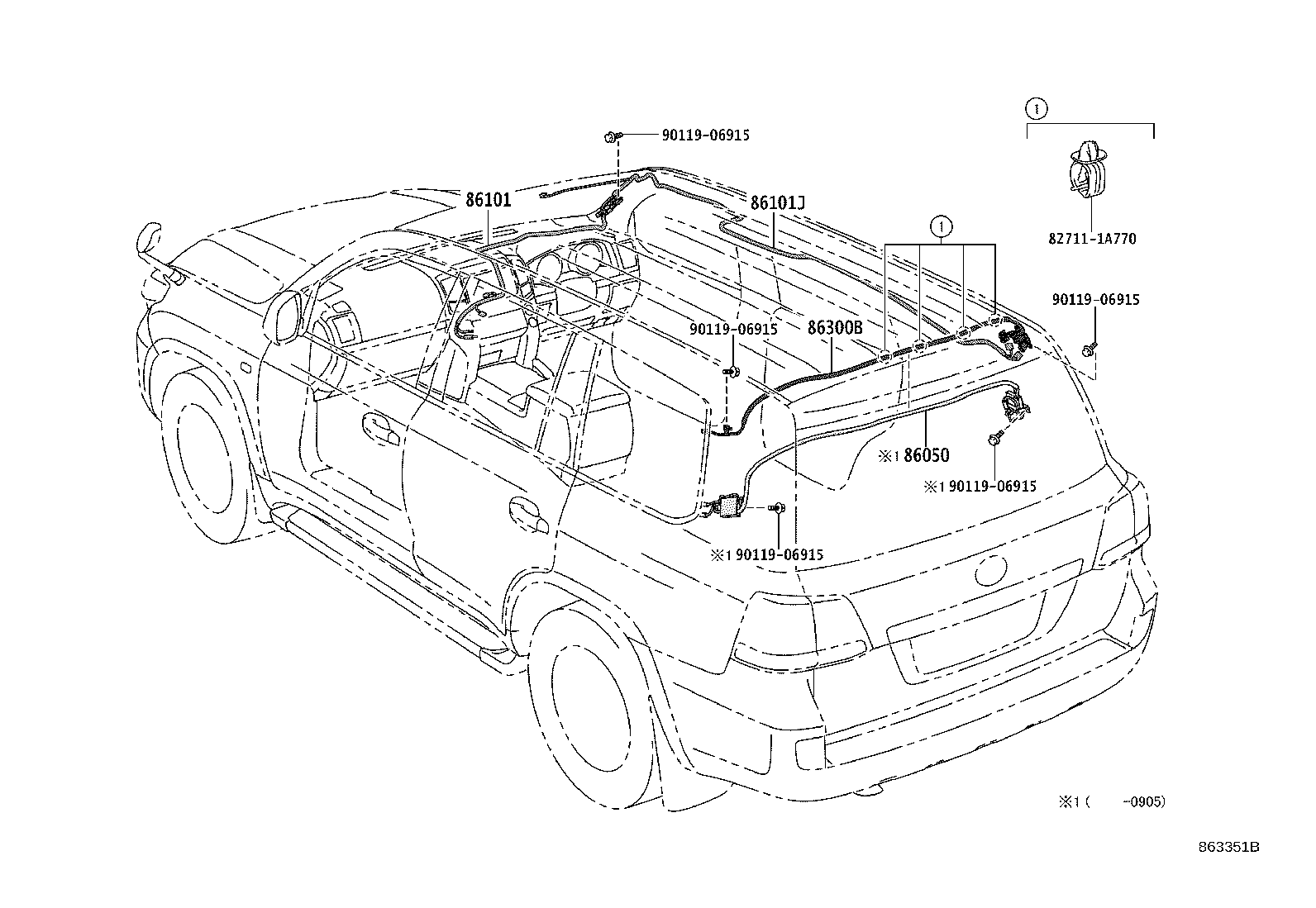

ILLUST NO. 1 OF 2(0709-1508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-60F40 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86101-60640 |
URJ202 |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-60E70 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86101-60E30 |
URJ202 |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-60780 |
URJ202 |
1 | ||
| 86300-60790 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 90119-06915 | ||||

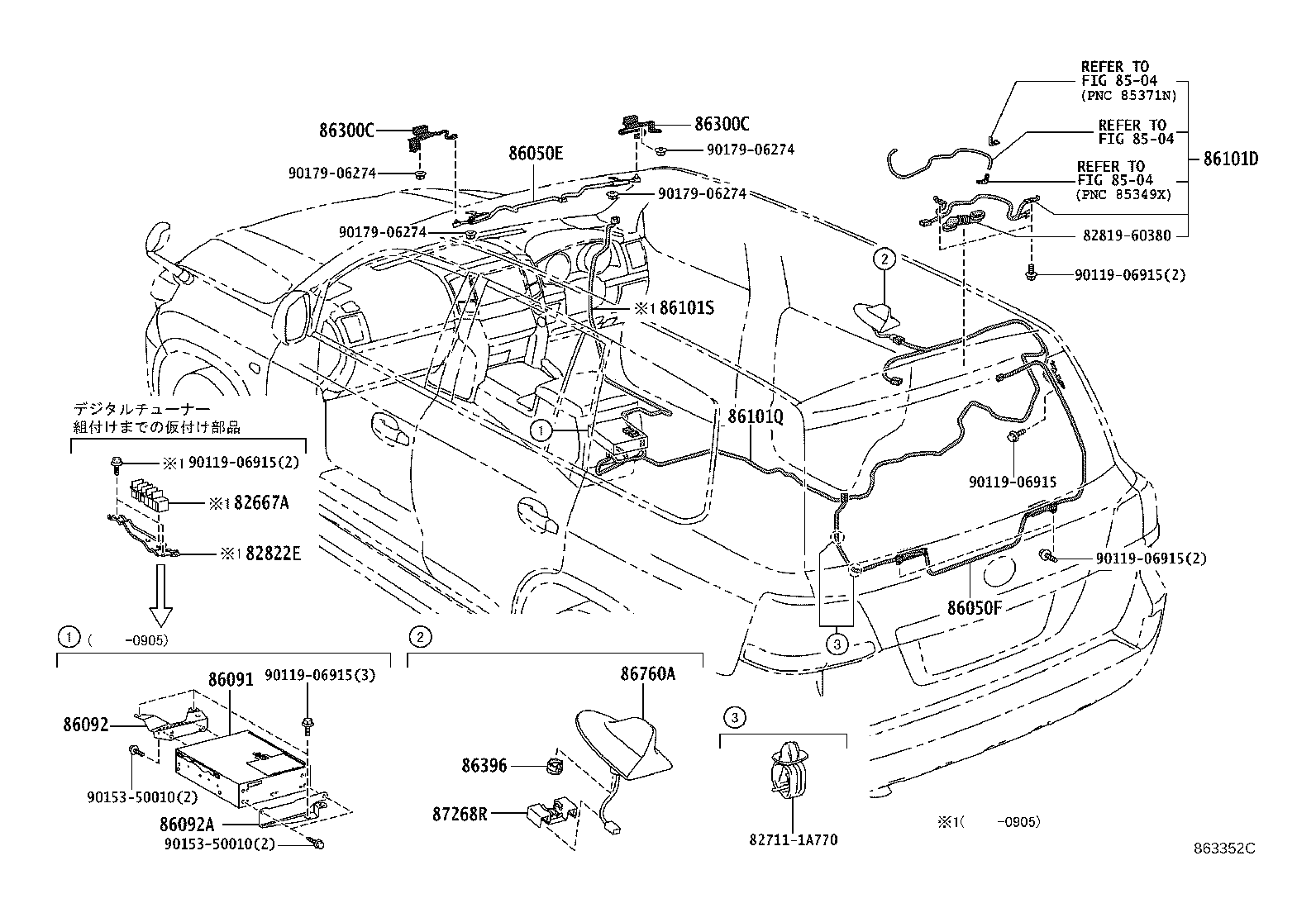

ILLUST NO. 2 OF 2(0709-1508)AX,ZX
ｱﾘ(ﾁｼﾞｮｳﾊﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-60180 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-60300 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-60E60 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-60E50 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-60620 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),右側 |
1 | ||
| 86300-60630 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),左側 |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-60620 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),右側 |
1 | ||
| 86300-60630 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),左側 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-47010 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86396-47010 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86760A - ANTENNA ASSY, TELEPHONE | ||||
| 86760-60060B0 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),SILVER ME.,1F7 |
1 | ||
| 86760-60060C2 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),ATTITUDE BLACK MC.,218 |
1 | ||
| 86760-60060A0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),WHITE PEARL CS.,070 |
1 | ||
| 86760-60060C0 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),BLACK,202 |
1 | ||
| 86760-60060D0 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),DK. RED M.M.,3Q3 |
1 | ||
| 86760-60060E2 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),BEIGE M.M.,4R3 |
1 | ||
| 86760-60060B1 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),GRAY ME.,1G3 |
1 | ||
| 86760-60060B0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),SILVER ME.,1F7 |
1 | ||
| 86760-60060B1 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),GRAY ME.,1G3 |
1 | ||
| 86760-60060C0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),BLACK,202 |
1 | ||
| 86760-60060A0 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),WHITE PEARL CS.,070 |
1 | ||
| 86760-60060E2 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),BEIGE M.M.,4R3 |
1 | ||
| 86760-60060D0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),DK. RED M.M.,3Q3 |
1 | ||
| 86760-60060C2 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),ATTITUDE BLACK MC.,218 |
1 | ||
| 87268R - PROTECTOR, TELEPHONE ANTENNA | ||||
| 87268-50021 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 87268-50021 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82819-60380 | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8504 | ||||
