URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

Click highlighted areas on diagram

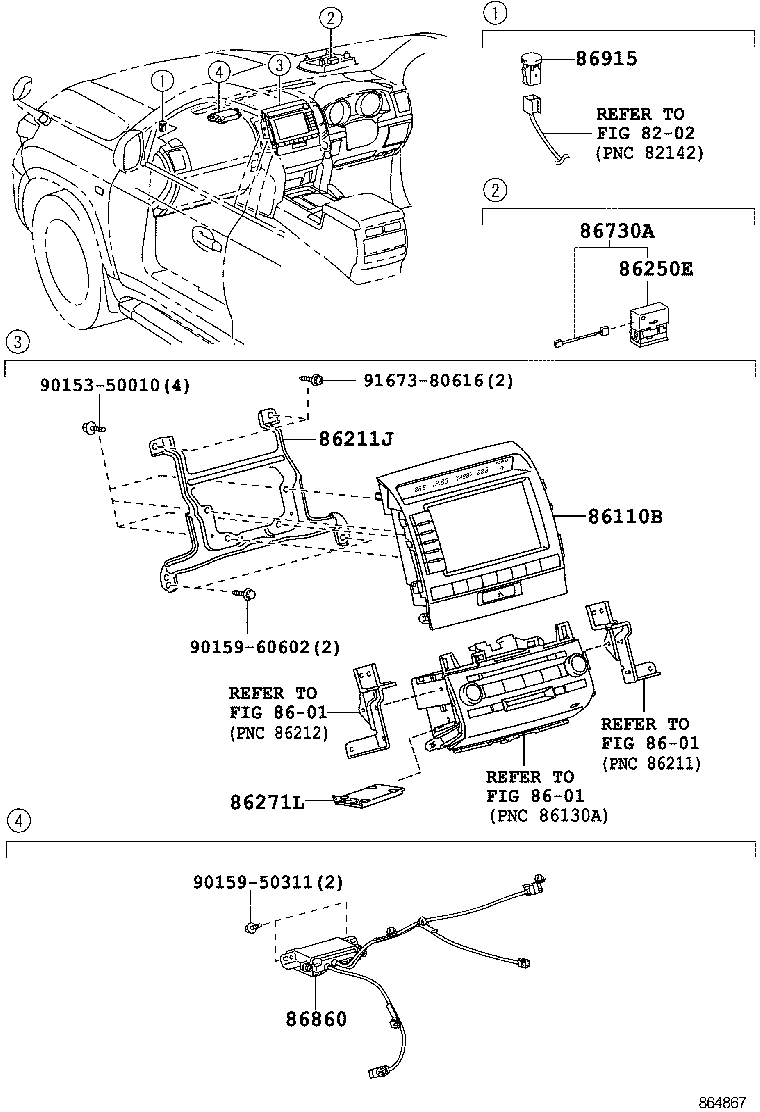

diagram 8202 8601 8601 8601 86110B 86211J 86250E 86271L 86730A 86860 86915 9015350010 9015950311 9015960602 9167380616
Part # Description Qty Price
86110B - MULTI-DISPLAY ASSY
86110-60100

URJ202..AX

FUJITSU TEN,ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/Fl 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識@BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86110-60100

URJ202..AX,ZX

FUJITSU TEN,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPSｹ声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-60350

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

URJ202..AX

ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ

 1
86271L - HARD DISC
86271-30662

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30663

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30662

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30661

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30660

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30667

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30665

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30664

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86271-30666

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53030

URJ202..AX

ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-60020

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86880-60020

URJ202..AX

ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
Common parts
90153-50010
90159-50311
90159-60602
91673-80616
Linked diagrams
8202
8601
