URJ202W-GNTAK (2012)
Toyota Land Cruiser

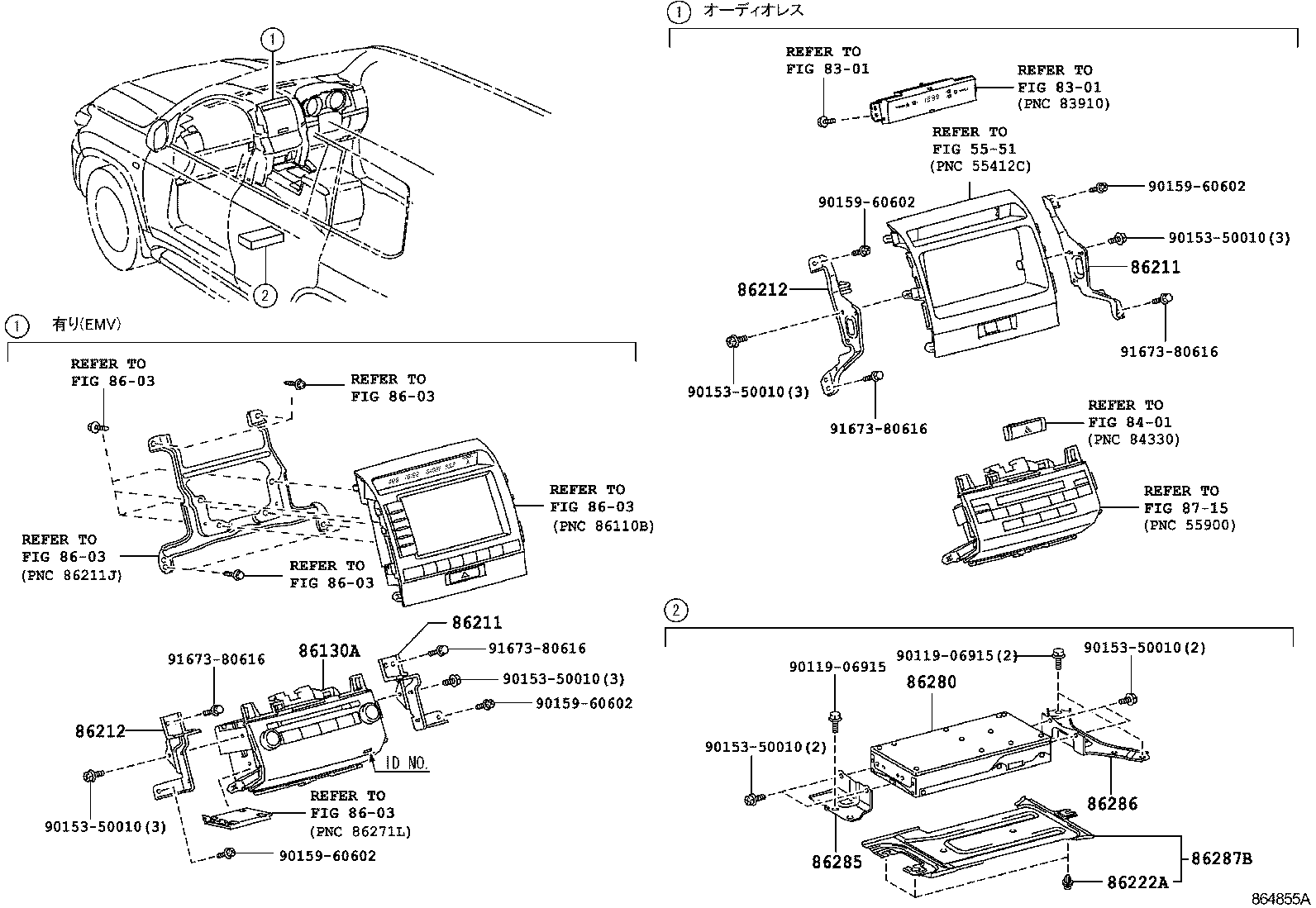

ILLUST NO. 1 OF 3(1201-1508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-60870 |
URJ202..AX PIONEER,ID=P10472,ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVc AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPr 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86804-60871 |
URJ202..AX PIONEER,ID=P10472,ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVc AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPr 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86804-60350 |
URJ202..AX,ZX PIONEER,ID=P10180,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDc GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86804-60351 |
URJ202..AX,ZX PIONEER,ID=P10180,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDc GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60330 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86211-60230 |
URJ202 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60330 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86211-60230 |
URJ202 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60330 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86212-60230 |
URJ202 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60330 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86212-60230 |
URJ202 |
1 | ||
| 86222A - CLIP, RADIO RECEIVER BRACKET NO.1 | ||||
| 90467-10161 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
3 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60520 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60200 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-60070 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60070 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8301 | ||||
| 8401 | ||||
| 8603 | ||||
| 8715 | ||||

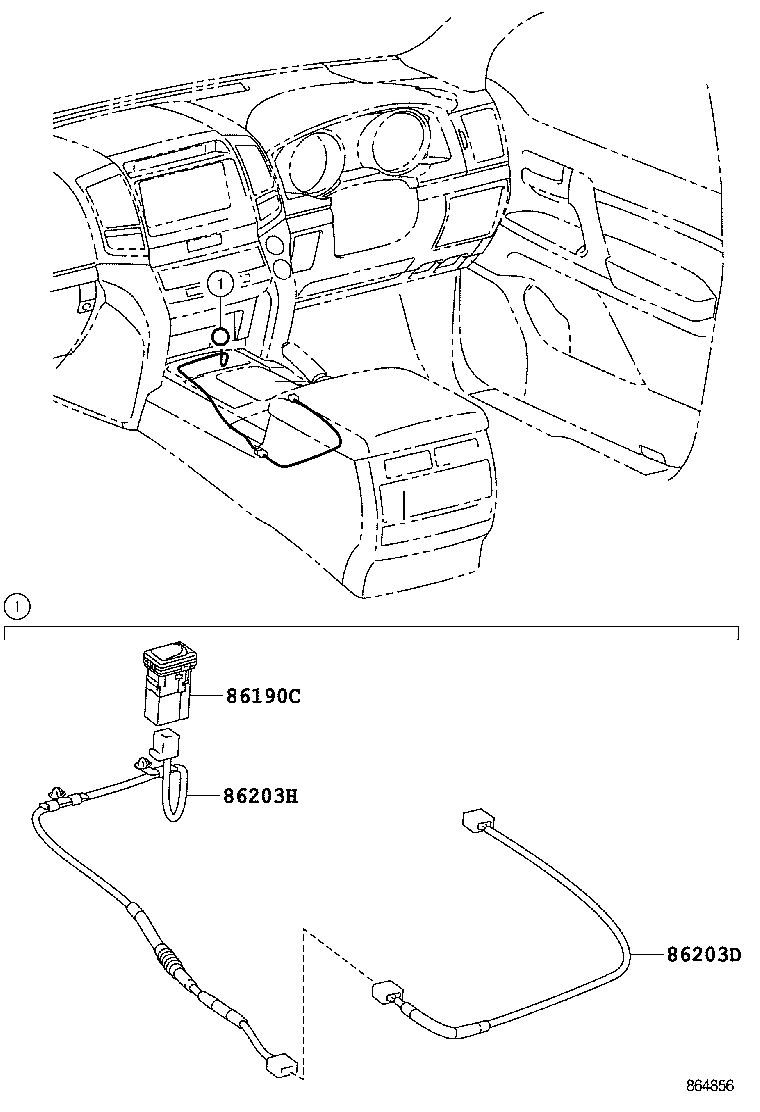

ILLUST NO. 2 OF 3(1201-1508)
ｵｰﾃﾞｨｵｼﾞｬｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48030 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-60161 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86203H - WIRE, STEREO COMPONENT, NO.2 | ||||
| 86453-60060 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
