URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1508)

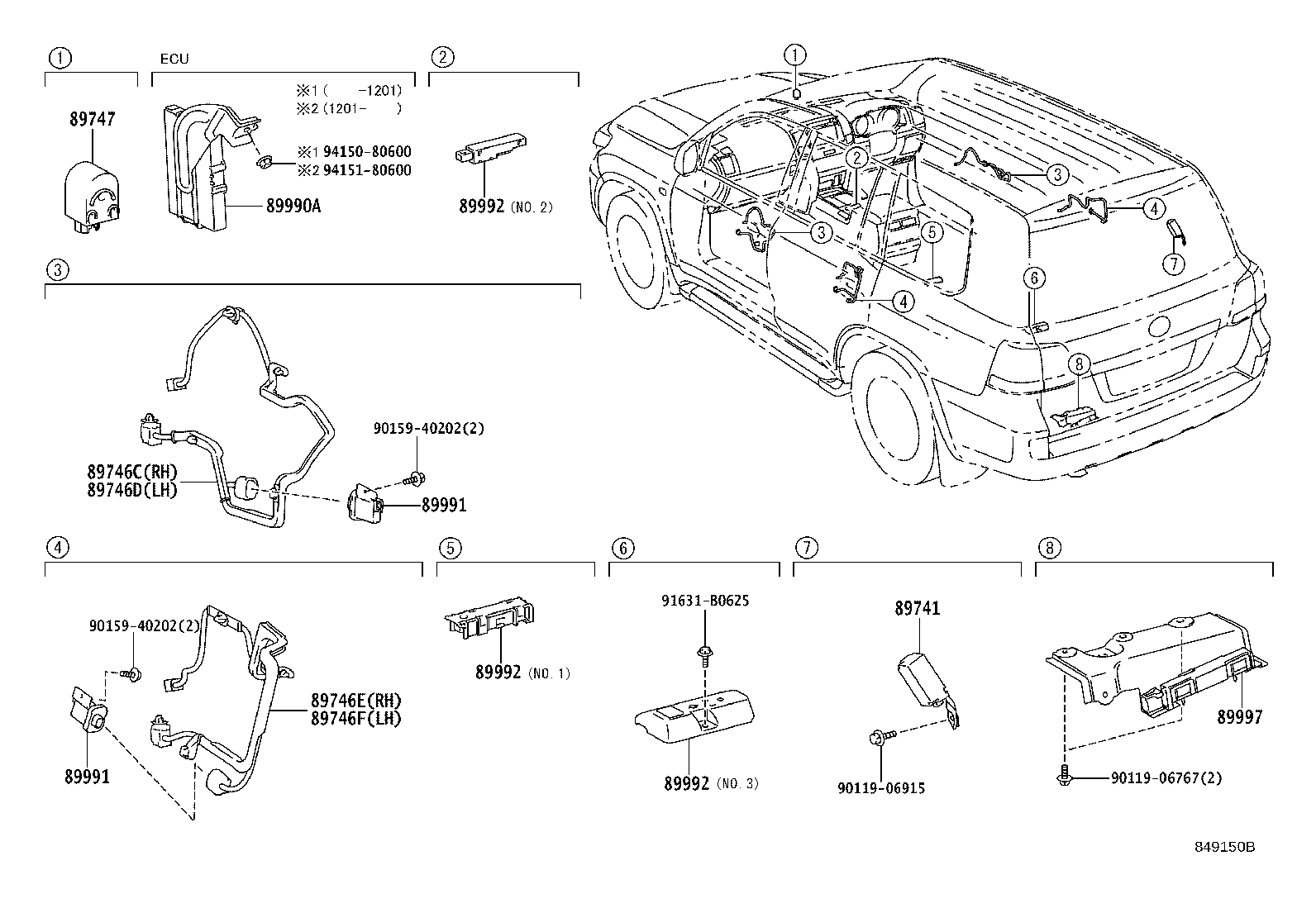

Click highlighted areas on diagram

diagram 89741 89746C 89746D 89746E 89746F 89747 89990A 89991 89991 89992 89992 89992 89997 9011906767 9011906915 9015940202 9015940202 91631B0625 9415080600 9415180600
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-60011

URJ202

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-60010

URJ202

 1
89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2
89746-60020

URJ202

 1
89746E - HARNESS, ELECTRICAL KEY WIRE, NO.3
89746-60030

URJ202

 1
89746F - HARNESS, ELECTRICAL KEY WIRE, NO.4
89746-60040

URJ202

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

URJ202

 1
89990A - COMPUTER ASSY, SMART KEY
89990-60134

URJ202..AX,ZX

品番ﾗﾍﾞﾙ=89990−60134

 1
89990-60135

URJ202..AX,ZX

品番ﾗﾍﾞﾙ=89990−60135

 1
89990-60133

URJ202..AX,ZX

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

URJ202..AX,GX

ﾌﾛﾝﾄ左側 & ﾘﾔ右側

 2
89991-30040

URJ202..AX,GX

ﾌﾛﾝﾄ右側 & ﾘﾔ左側

 2
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

URJ202..AX,GX

ﾌﾛﾝﾄ左側 & ﾘﾔ右側

 2
89991-30040

URJ202..AX,GX

ﾌﾛﾝﾄ右側 & ﾘﾔ左側

 2
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-60020

URJ202

NO.3

 1
89992-60010

URJ202

NO.2

 1
89992-28010

URJ202

NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-60020

URJ202

NO.3

 1
89992-60010

URJ202

NO.2

 1
89992-28010

URJ202

NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-60020

URJ202

NO.3

 1
89992-60010

URJ202

NO.2

 1
89992-28010

URJ202

NO.1

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-60030

URJ202

 1
Common parts
90119-06767
90119-06915
90159-40202
91631-B0625
94150-80600
94151-80600
