URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

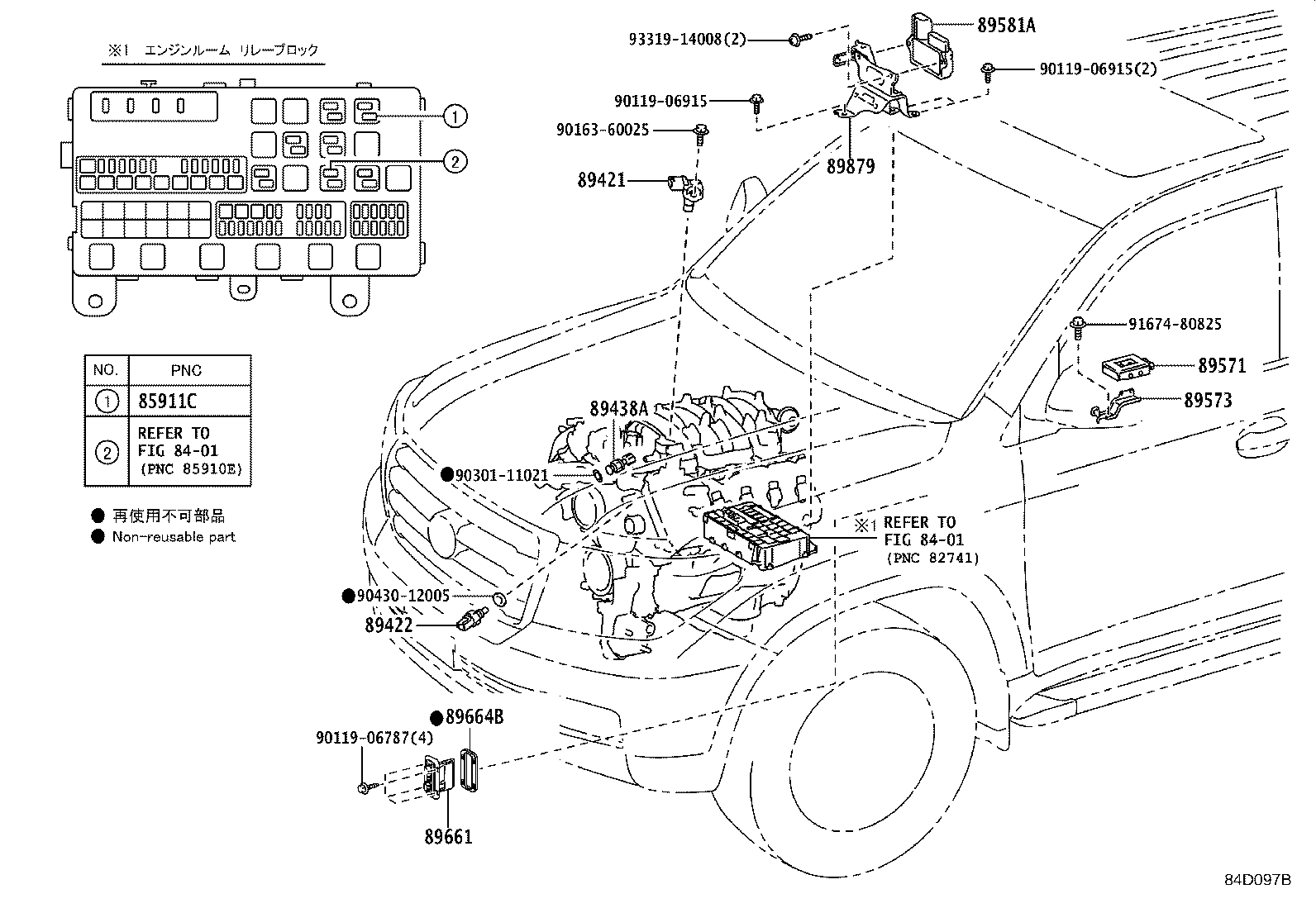

Click highlighted areas on diagram

diagram 8401 8401 85911C 89421 89422 89438A 89571 89573 89581A 89661 89664B 89879 9011906787 9011906915 9011906915 9016360025 9030111021 9043012005 9167480825 9331914008
Part # Description Qty Price
85911C - RELAY, EFI 2
90987-02027

URJ202

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

URJ202

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

URJ202

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89448-34020

URJ202

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-60030

URJ202

 1
89571-60060

URJ202

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-60072

URJ202

 1
89573-60071

URJ202

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

URJ202

 1
89661 - COMPUTER, ENGINE CONTROL
89661-60Q40

URJ202

DENSO

 1
89664B - SEAL, ENGINE CONTROL COMPUTER
89664-34010

URJ202

 1
89879 - BRACKET, INJECTOR DRIVER
89589-34020

URJ202

 1
Common parts
90119-06787
90119-06915
90163-60025
90301-11021
90430-12005
91674-80825
93319-14008
Linked diagrams
8401
