URJ202W-GNTAK (2012)
Toyota Land Cruiser

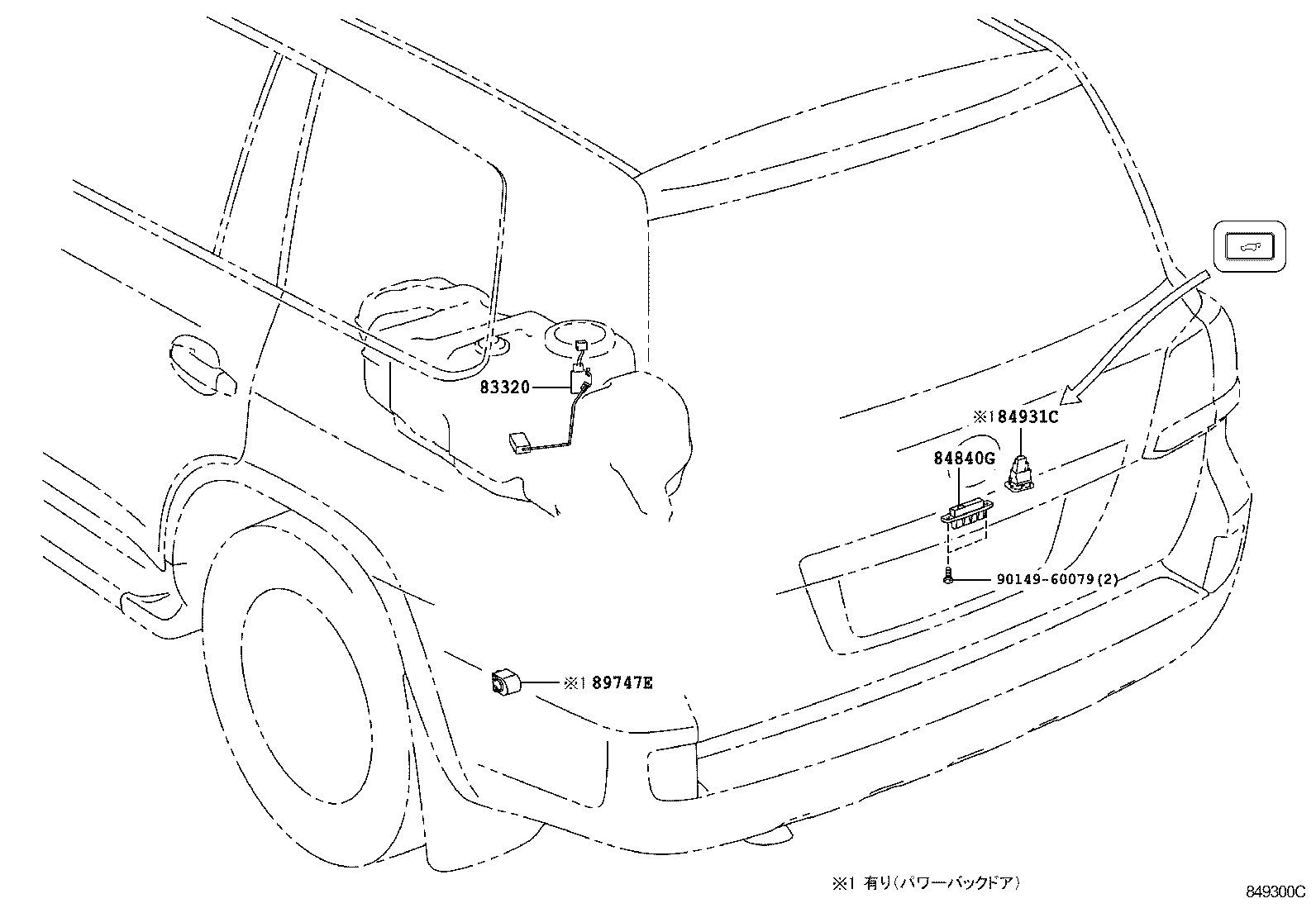

ILLUST NO. 9 OF 9(0709-1508)
ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60580 |
URJ202 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
URJ202 |
1 | ||
| Common parts | ||||
| 90149-60079 | ||||

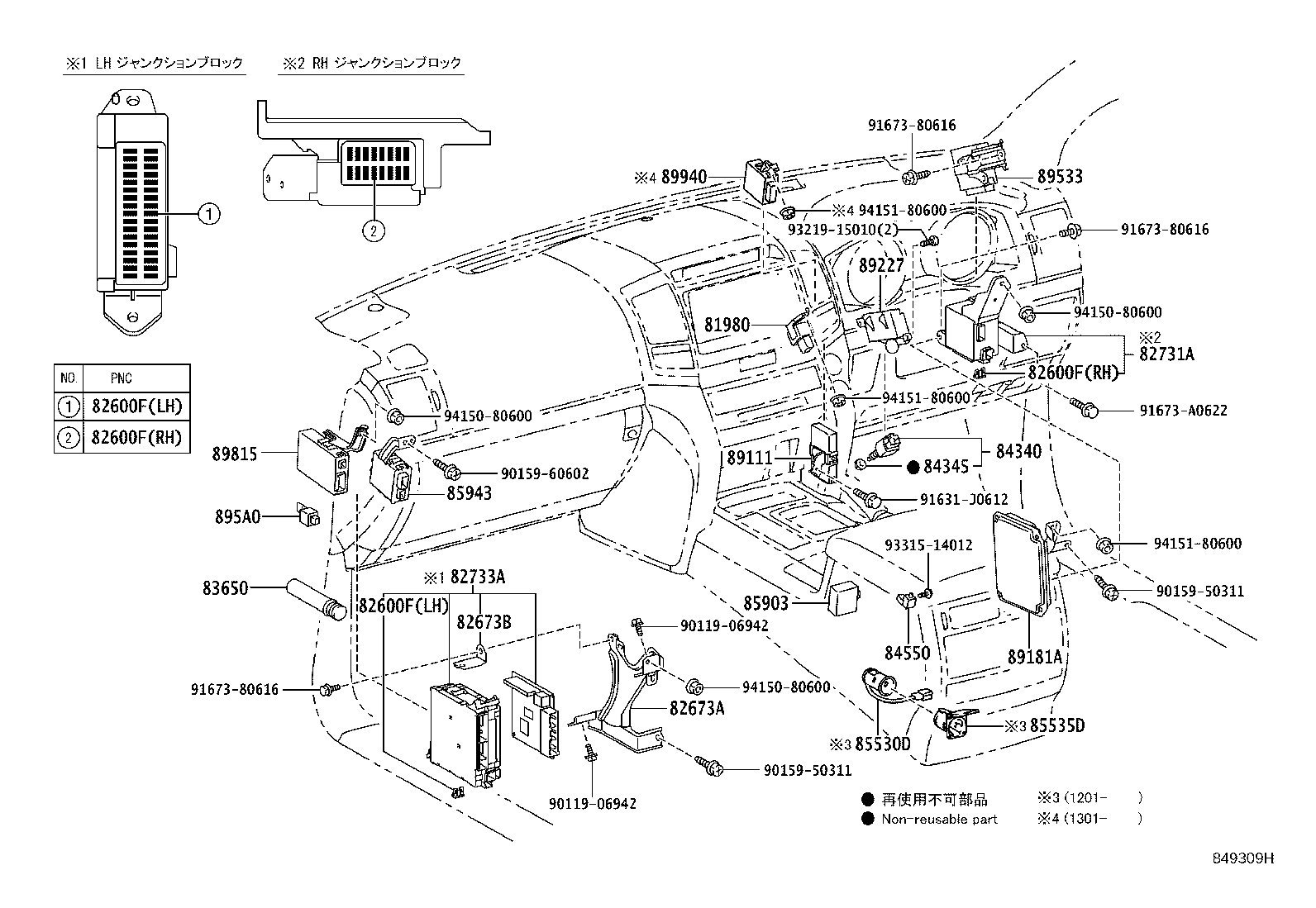

ILLUST NO. 4 OF 9(0709-1508)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60100 |
URJ202 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
URJ202 15A,ﾐﾆ ﾋｭｰｽﾞ,青,左側,右側 |
1 | ||
| 90982-09019 |
URJ202 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,左側,右側 |
1 | ||
| 90982-09020 |
URJ202 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,左側,右側 |
1 | ||
| 90982-09021 |
URJ202 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,左側,右側 |
1 | ||
| 90982-09024 |
URJ202 25A,ﾐﾆ ﾋｭｰｽﾞ,左側 |
1 | ||
| 90982-09023 |
URJ202 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,左側,右側 |
1 | ||
| 90982-09025 |
URJ202 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,左側,右側 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
URJ202 15A,ﾐﾆ ﾋｭｰｽﾞ,青,左側,右側 |
1 | ||
| 90982-09019 |
URJ202 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,左側,右側 |
1 | ||
| 90982-09020 |
URJ202 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,左側,右側 |
1 | ||
| 90982-09021 |
URJ202 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,左側,右側 |
1 | ||
| 90982-09024 |
URJ202 25A,ﾐﾆ ﾋｭｰｽﾞ,左側 |
1 | ||
| 90982-09023 |
URJ202 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,左側,右側 |
1 | ||
| 90982-09025 |
URJ202 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,左側,右側 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
URJ202 15A,ﾐﾆ ﾋｭｰｽﾞ,青,左側,右側 |
1 | ||
| 90982-09019 |
URJ202 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,左側,右側 |
1 | ||
| 90982-09020 |
URJ202 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,左側,右側 |
1 | ||
| 90982-09021 |
URJ202 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,左側,右側 |
1 | ||
| 90982-09024 |
URJ202 25A,ﾐﾆ ﾋｭｰｽﾞ,左側 |
1 | ||
| 90982-09023 |
URJ202 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,左側,右側 |
1 | ||
| 90982-09025 |
URJ202 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,左側,右側 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
URJ202 15A,ﾐﾆ ﾋｭｰｽﾞ,青,左側,右側 |
1 | ||
| 90982-09019 |
URJ202 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色,左側,右側 |
1 | ||
| 90982-09020 |
URJ202 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,左側,右側 |
1 | ||
| 90982-09021 |
URJ202 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,左側,右側 |
1 | ||
| 90982-09024 |
URJ202 25A,ﾐﾆ ﾋｭｰｽﾞ,左側 |
1 | ||
| 90982-09023 |
URJ202 20A,ﾐﾆ ﾋｭｰｽﾞ,黄,左側,右側 |
1 | ||
| 90982-09025 |
URJ202 30A,ﾐﾆ ﾋｭｰｽﾞ,緑,左側,右側 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-60030 |
URJ202 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60050 |
URJ202 |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻+木目調&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革 |
1 | ||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻+木目調&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 &ｶﾞｲﾄﾞ付き |
1 | ||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82731-60242 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革 |
1 | ||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82731-60242 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻+木目調&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82731-60242 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82731-60242 |
URJ202..AX |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60J01 |
URJ202..AX,ZX |
1 | ||
| 82733-6A301 |
URJ202..AX,ZX |
1 | ||
| 82733-60R90 |
URJ202..AX,ZX |
1 | ||
| 82733-6A300 |
URJ202..AX,ZX |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
URJ202 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
URJ202 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
URJ202 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
URJ202 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60110 |
URJ202 |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-60110A0 |
URJ202 SHELL,TRIM0# |
1 | ||
| 85535-60110C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
URJ202 |
1 | ||
| 85943 - COMPUTER, WINDSHIELD WIPER | ||||
| 85943-60040 |
URJ202..AX,ZX |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-60070 |
URJ202 |
1 | ||
| 89111-60100 |
URJ202 |
1 | ||
| 89181A - COMPUTER, STEERING CONTROL | ||||
| 89181-60090 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-50130 |
URJ202..AX ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60242 |
URJ202 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-60021 |
URJ202 |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-60120 |
URJ202..AX,ZX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-60140 |
URJ202..AX |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 91673-A0622 | ||||
| 93219-15010 | ||||
| 93315-14012 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||

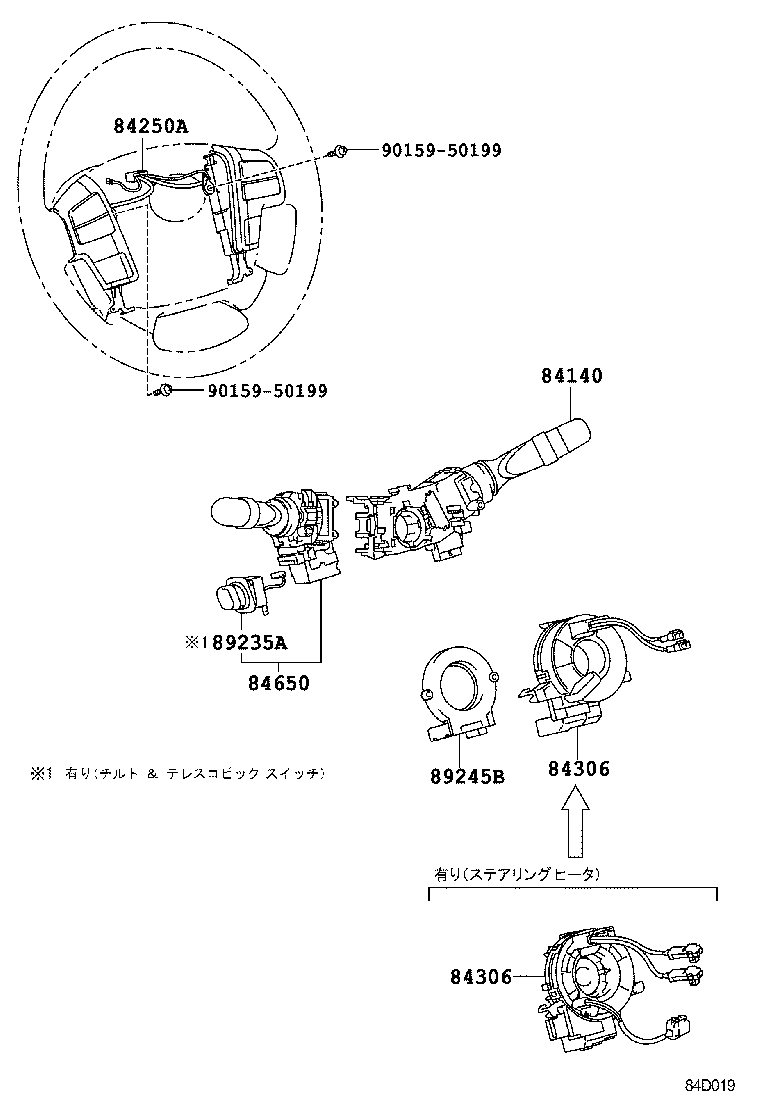

ILLUST NO. 6 OF 9(1201-1508)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42080 |
URJ202..AX,ZX 寒冷地仕様 |
1 | ||
| 84140-42070 |
URJ202..AX,ZX |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60300 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84250-60310 |
URJ202..AX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ&ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84250-60330 |
URJ202..AX |
1 | ||
| 84250-60120 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60120 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84250-60340 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84250-60310 |
URJ202..AX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ&ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60300 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60300 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84250-60310 |
URJ202..AX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ&ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60340 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84250-60390 |
URJ202..AX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ&ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84250-60300 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60300 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84250-60400 |
URJ202..AX,ZX |
1 | ||
| 84250-60310 |
URJ202..AX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ&ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84250-60300 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
URJ202..AX,GX |
1 | ||
| 84306-50190 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84306-60130 |
URJ202 |
1 | ||
| 84306-48030 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻+木目調&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84306-48030 |
URJ202 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
URJ202..AX,GX |
1 | ||
| 84306-50190 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84306-60130 |
URJ202 |
1 | ||
| 84306-48030 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻+木目調&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 84306-48030 |
URJ202 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A870 |
URJ202..AX |
1 | ||
| 84652-48090 |
URJ202..AX ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ |
1 | ||
| 84652-42140 |
URJ202..AX |
1 | ||
| 84652-60B20 |
URJ202..AX ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ |
1 | ||
| 84652-42141 |
URJ202..AX |
1 | ||
| 84652-60B21 |
URJ202..AX ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
URJ202..AX ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30070 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 89245-52030 |
URJ202..AX,GX |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

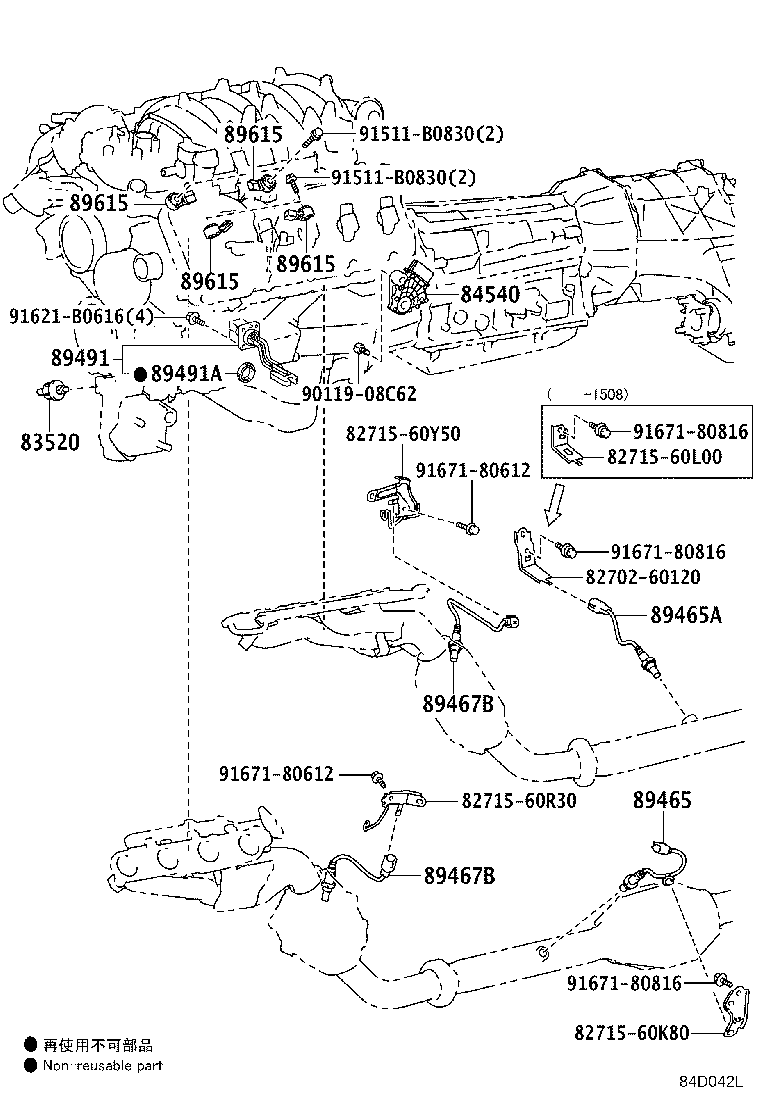

ILLUST NO. 1 OF 9(1201- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60050 |
URJ202 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
URJ202 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60370 |
URJ202 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-36040 |
URJ202 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-34030 |
URJ202 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-34030 |
URJ202 |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60160 |
URJ202 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
URJ202 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
URJ202 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
URJ202 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
URJ202 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
URJ202 |
4 | ||
| Common parts | ||||
| 82702-60120 | ||||
| 82715-60K80 | ||||
| 82715-60L00 | ||||
| 82715-60R30 | ||||
| 82715-60Y50 | ||||
| 90119-08C62 | ||||
| 91511-B0830 | ||||
| 91621-B0616 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

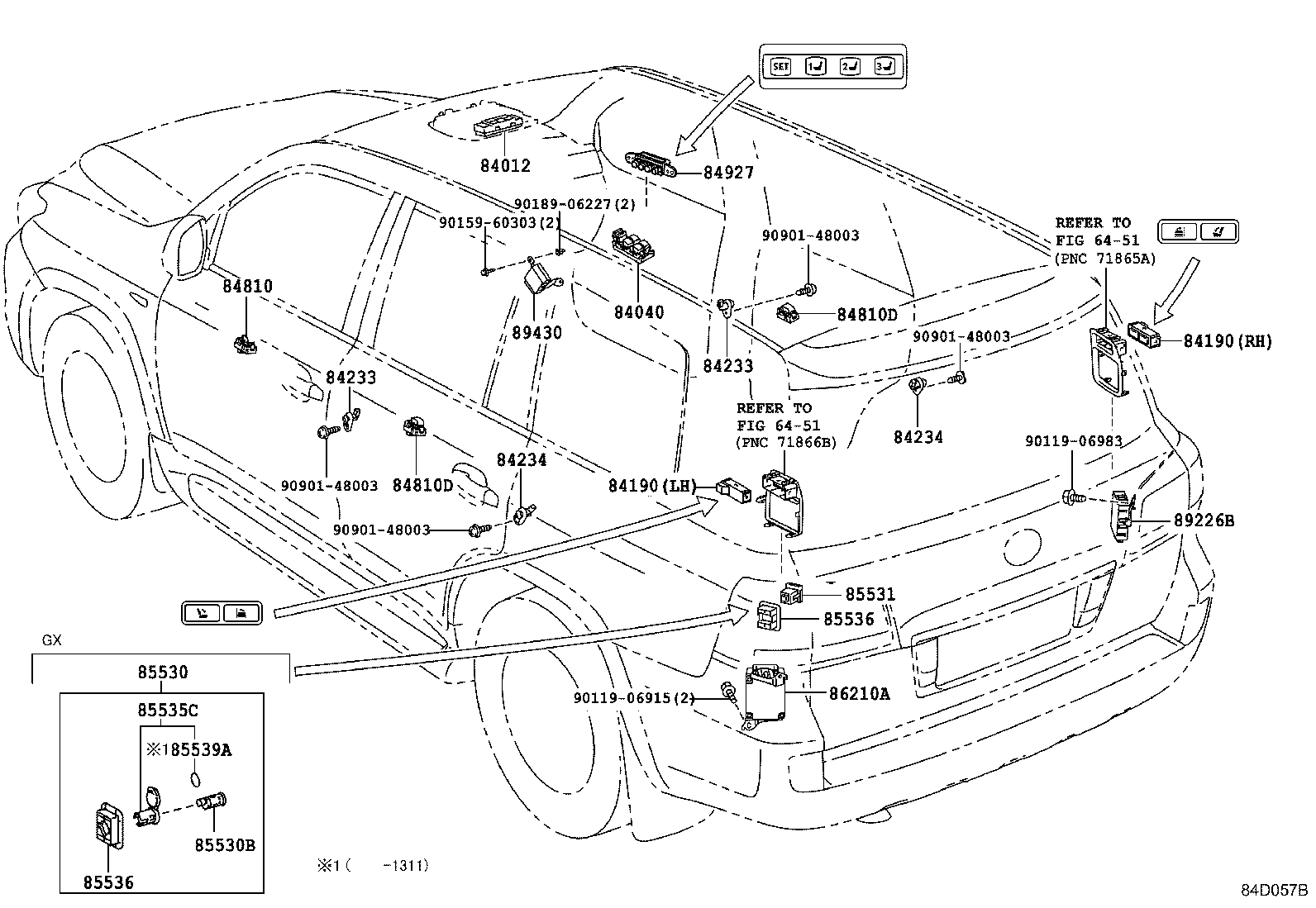

ILLUST NO. 8 OF 9(1201-1508)
ﾄﾞｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-60620A0 |
URJ202..AX ﾑｰﾝﾙｰﾌ−有り(ﾘﾓｺﾝ機能付き),SHELL,TRIM0# |
1 | ||
| 84012-60620B0 |
URJ202..AX ﾑｰﾝﾙｰﾌ−有り(ﾘﾓｺﾝ機能付き),LT.GRAY,TRIM1#,2# |
1 | ||
| 84012-60580A0 |
URJ202..AX ﾑｰﾝﾙｰﾌ−有り(ﾘﾓｺﾝ機能付き)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN +DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDDGPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),SHELL,TRIM0# |
1 | ||
| 84012-60580B0 |
URJ202..AX ﾑｰﾝﾙｰﾌ−有り(ﾘﾓｺﾝ機能付き)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN +DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDDGPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),LT.GRAY,TRIM1#,2# |
1 | ||
| 84012-60600A0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),SHELL,TRIM0# |
1 | ||
| 84012-60630B0 |
URJ202..AX LT.GRAY,TRIM1#,2# |
1 | ||
| 84012-60600B0 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),LT.GRAY,TRIM1#,2# |
1 | ||
| 84012-60630A0 |
URJ202..AX SHELL,TRIM0# |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
URJ202 |
1 | ||
| 84040-60200 |
URJ202 |
1 | ||
| 84040-60210 |
URJ202 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
URJ202 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
URJ202 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
URJ202 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
URJ202 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
URJ202 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
URJ202 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
URJ202 |
2 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-60020A0 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 85531-60020C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60030C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 85536-60030A1 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60030C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 85536-60030A1 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60160 |
URJ202..AX,ZX |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-60061 |
URJ202..AX,ZX |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06983 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 6451 | ||||

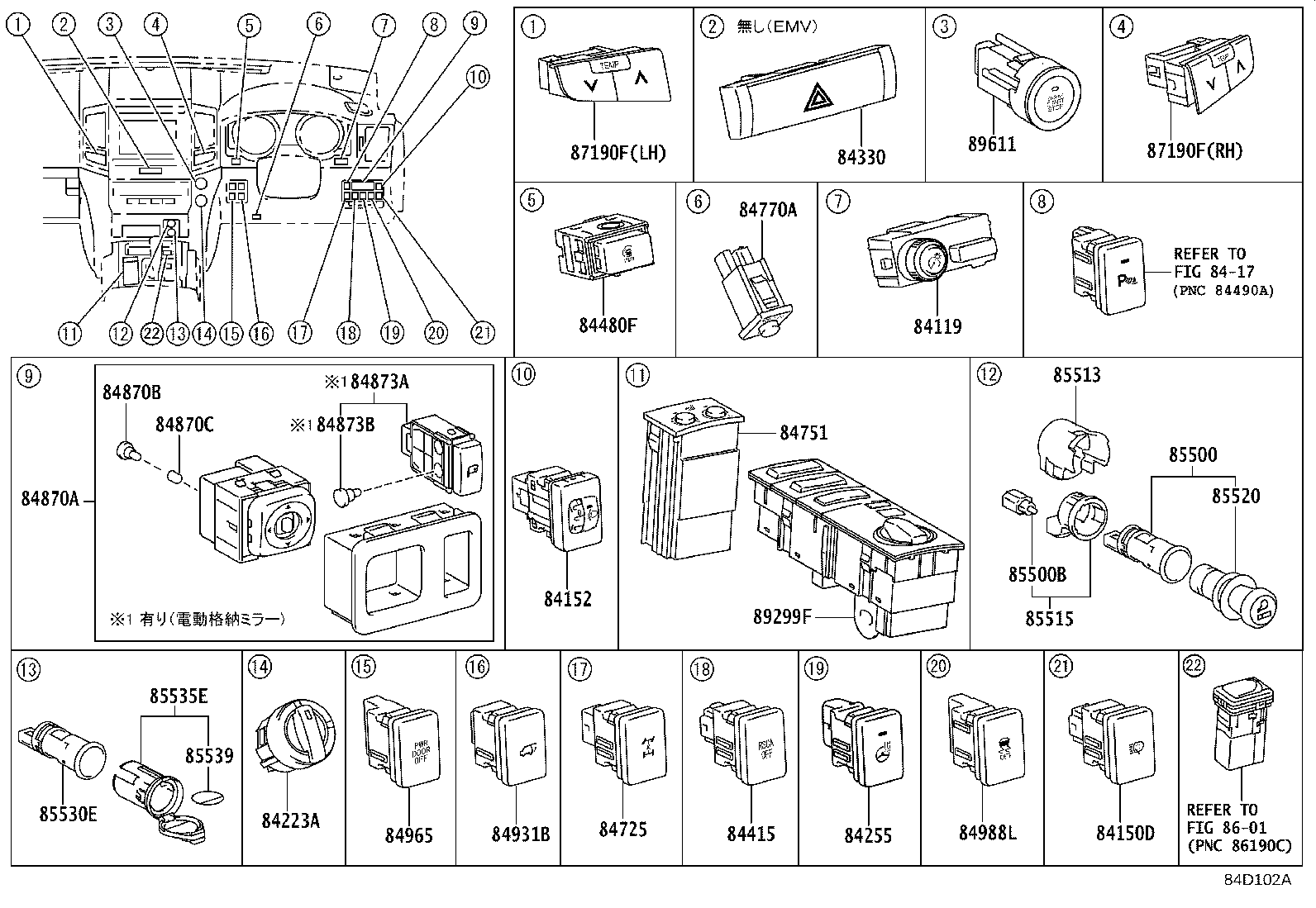

ILLUST NO. 5 OF 9(1201-1508)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60140 |
URJ202..AX,ZX |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60070 |
URJ202..AX,ZX |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60050 |
URJ202..AX,ZX |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-76010 |
URJ202..AX,ZX ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84255-76011 |
URJ202..AX,ZX ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻&木目調,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60370 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 84332-60371 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 84332-60371 |
URJ202 |
1 | ||
| 84332-60370 |
URJ202 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-60040 |
URJ202 |
1 | ||
| 84415-60041 |
URJ202 |
1 | ||
| 84480F - SWITCH ASSY, MAIN | ||||
| 84480-60130 |
URJ202..AX,ZX ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60170 |
URJ202 |
1 | ||
| 84725-60171 |
URJ202 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60191 |
URJ202..AX ｼｰﾄ表皮−本革 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
URJ202..AX,ZX ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60180A0 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 84870-60180C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
URJ202 14V 1.12W |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
URJ202 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-60010 |
URJ202..AX,ZX |
1 | ||
| 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH | ||||
| 90010-01096 |
URJ202..AX,ZX 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48070 |
URJ202 |
1 | ||
| 84988-48071 |
URJ202 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-60090 |
URJ202 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
URJ202 14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
URJ202 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-48010 |
URJ202 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
URJ202 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
URJ202 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48080C0 |
URJ202 BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
URJ202 |
1 | ||
| 87190F - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-60010 |
URJ202 左側 |
1 | ||
| 87190-60020 |
URJ202 右側 |
1 | ||
| 87190F - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-60010 |
URJ202 左側 |
1 | ||
| 87190-60020 |
URJ202 右側 |
1 | ||
| 89299F - SWITCH, SUSPENSION CONTROL | ||||
| 89299-60100 |
URJ202..AX |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52013 |
URJ202 |
1 | ||
| 89611-52014 |
URJ202 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||

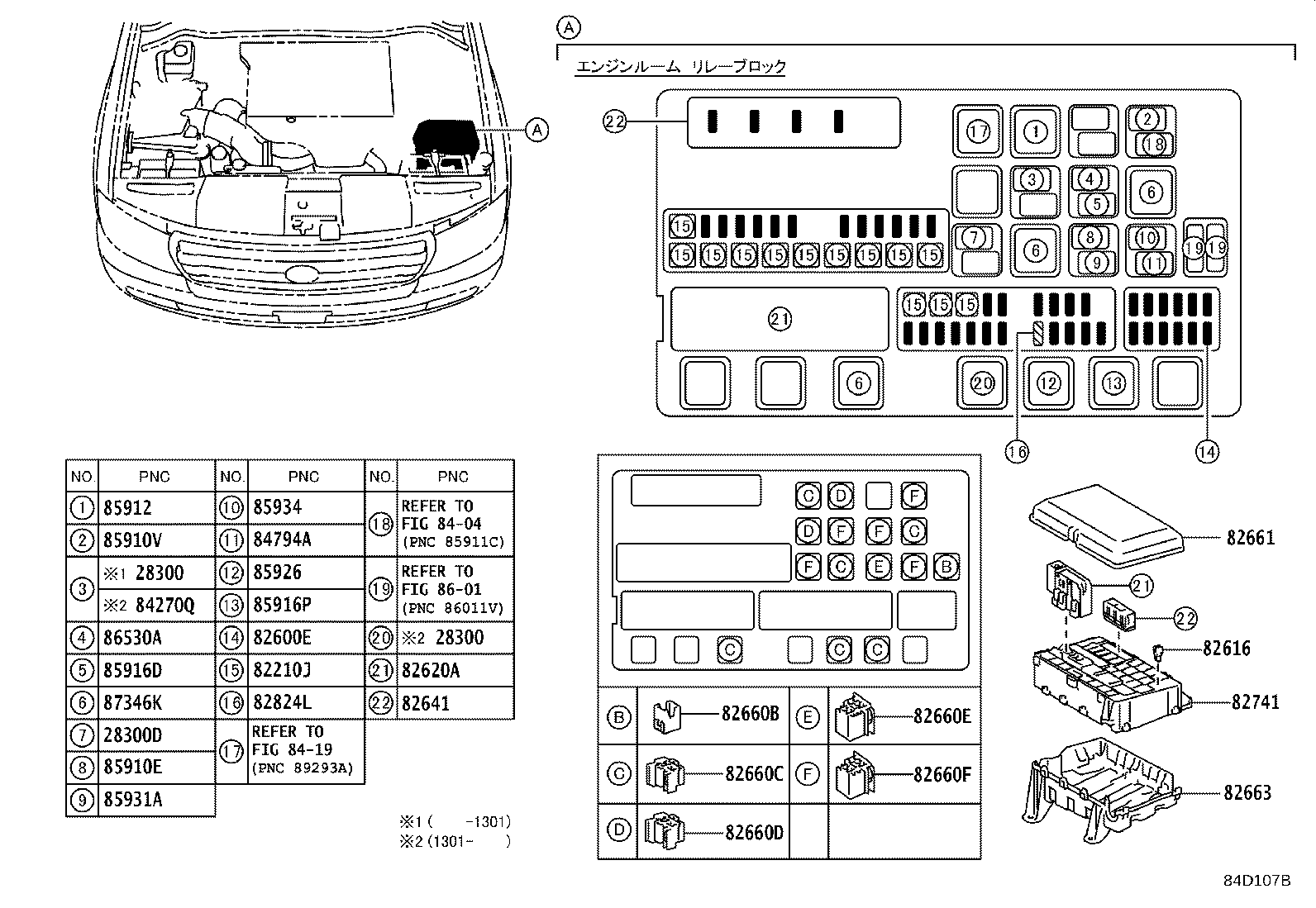

ILLUST NO. 3 OF 9(1201-1508)
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1URFE..URJ202 |
1 | ||
| 28300-28010 |
1URFE..URJ202 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1URFE..URJ202 |
1 | ||
| 28300-28010 |
1URFE..URJ202 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1URFE..URJ202 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
URJ202 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
URJ202 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
URJ202 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
URJ202 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
URJ202 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
URJ202 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
URJ202 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
URJ202 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
URJ202 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
URJ202 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
URJ202 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C030 |
URJ202 |
1 | ||
| 82620-60100 |
URJ202 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
URJ202 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
URJ202 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
URJ202 |
6 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
URJ202 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
URJ202 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
URJ202 |
5 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60351 |
URJ202 |
1 | ||
| 82661-60350 |
URJ202 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
URJ202 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60061 |
URJ202 |
1 | ||
| 82741-60060 |
URJ202 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
URJ202..AX,ZX |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 28300-21020 |
URJ202 |
1 | ||
| 28300-28010 |
URJ202 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
URJ202 寒冷地仕様 |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02028 |
URJ202 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
URJ202..AX ｼｰﾄ表皮−本革 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
URJ202 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
URJ202..AX,ZX |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
URJ202 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
URJ202 |
1 | ||
| 85931A - RELAY, BRAKE LAMP | ||||
| 90987-04004 |
URJ202 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
URJ202 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
URJ202..AX,ZX 寒冷地仕様&有り(ｸｰﾙﾎﾞｯｸｽ) |
3 | ||
| 90987-02025 |
URJ202 寒冷地仕様 |
3 | ||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
