URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0709-1508)

Click highlighted areas on diagram

ｸﾛｯｸ

diagram 83910 9015950327
Part # Description Qty Price
83910 - CLOCK ASSY
83910-60310

URJ202..AX,ZX

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)

 1
83910-60310

URJ202

 1
Common parts
90159-50327

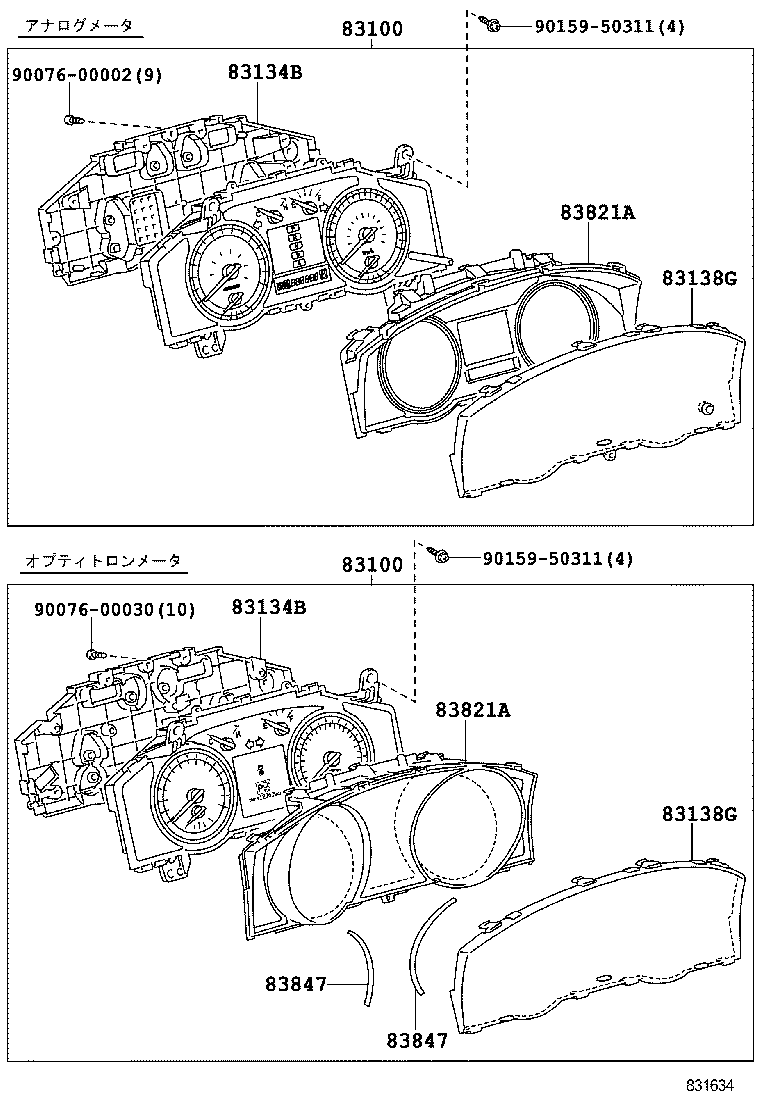

ILLUST NO. 1 OF 2(1201-1508)

Click highlighted areas on diagram

ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ

diagram 83100 83100 83134B 83134B 83138G 83138G 83821A 83821A 83847 83847 9007600002 9007600030 9015950311 9015950311
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-60Z41

URJ202..AX,ZX

YAZAKI

 1
83800-60Z40

URJ202..AX,ZX

YAZAKI

 1
83100 - METER ASSY, COMBINATION
83800-60Z41

URJ202..AX,ZX

YAZAKI

 1
83800-60Z40

URJ202..AX,ZX

YAZAKI

 1
83134B - COVER, COMBINATION METER, NO.2
83822-60Z20

URJ202..AX,ZX

 1
83134B - COVER, COMBINATION METER, NO.2
83822-60Z20

URJ202..AX,ZX

 1
83138G - GLASS, COMBINATION METER
83852-60Z20

URJ202..AX,ZX

 1
83138G - GLASS, COMBINATION METER
83852-60Z20

URJ202..AX,ZX

 1
83821A - COVER, COMBINATION METER, NO.1
83821-60Z20

URJ202..AX,ZX

 1
83821A - COVER, COMBINATION METER, NO.1
83821-60Z20

URJ202..AX,ZX

 1
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-60Z20

URJ202..AX,ZX

 2
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-60Z20

URJ202..AX,ZX

 2
Common parts
90076-00002
90076-00030
90159-50311
