URJ202W-GNTAK (2012)
Toyota Land Cruiser

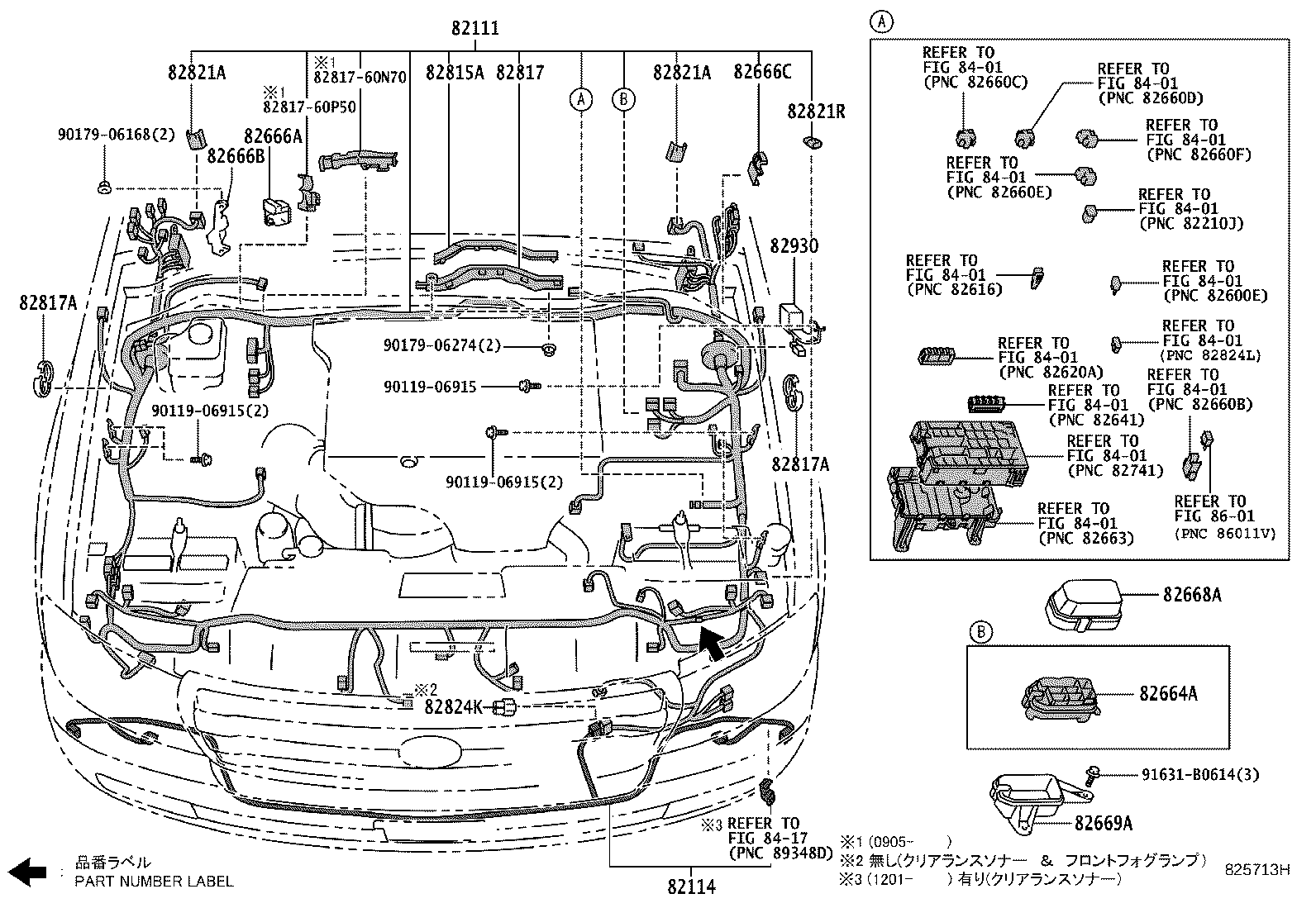

ILLUST NO. 1 OF14(0709-1508)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6AD50 |
URJ202..AX,ZX |
1 | ||
| 82111-60W70 |
URJ202 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60180 |
URJ202..AX,ZX |
1 | ||
| 82664A - BLOCK, CONNECTOR HOLDER | ||||
| 82664-60010 |
URJ202 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60580 |
URJ202 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60590 |
URJ202 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60600 |
URJ202 |
1 | ||
| 82668A - COVER, CONNECTOR HOLDER BLOCK, UPPER | ||||
| 82668-60010 |
URJ202 |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-60010 |
URJ202 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60410 |
URJ202 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60F70 |
URJ202 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60210 |
URJ202 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60210 |
URJ202 |
2 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-35040 |
URJ202 |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-60010 |
URJ202 |
1 | ||
| 82930-60020 |
URJ202 |
1 | ||
| Common parts | ||||
| 82817-60N70 | ||||
| 82817-60P50 | ||||
| 90119-06915 | ||||
| 90179-06168 | ||||
| 90179-06274 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
| 8601 | ||||

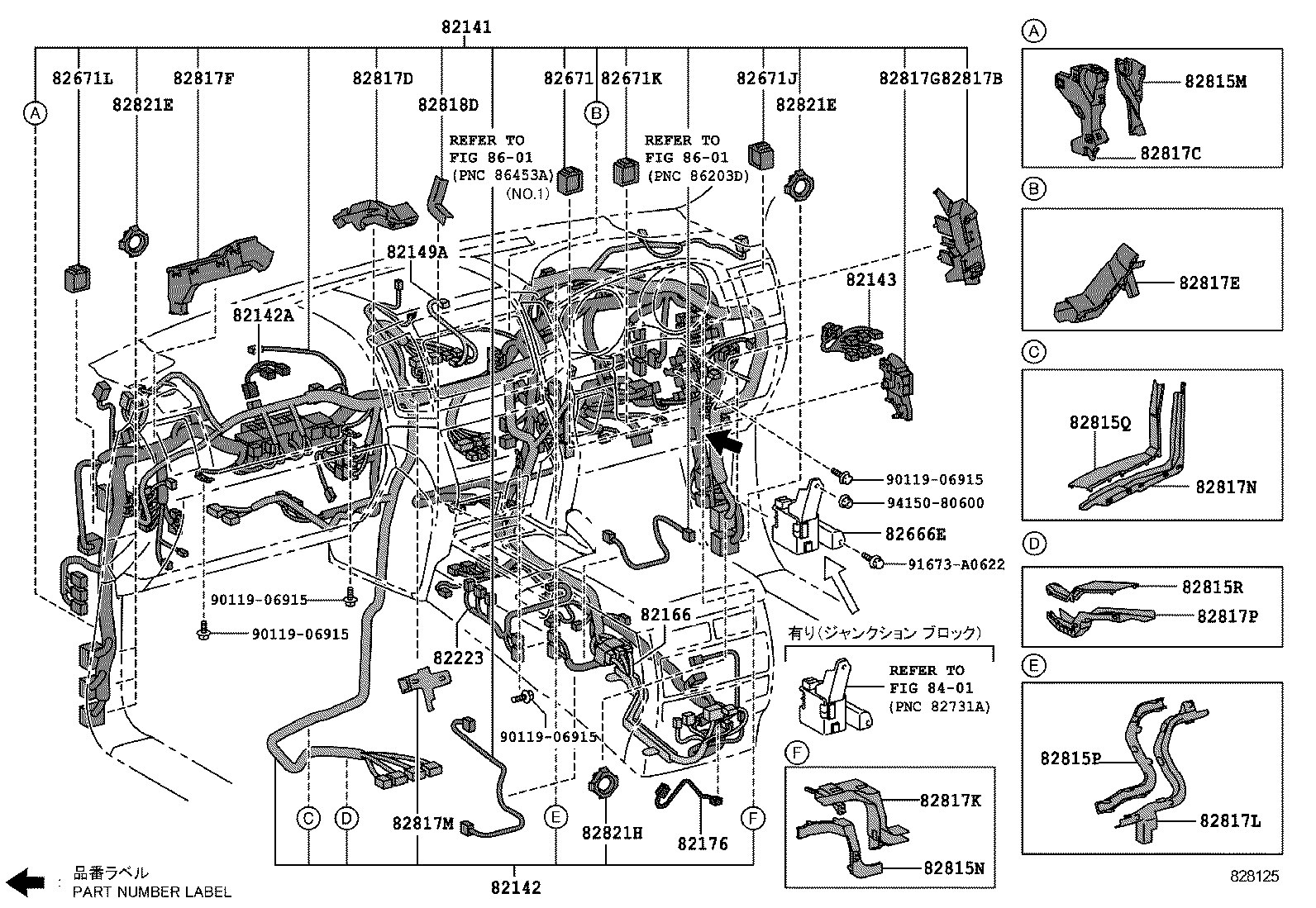

ILLUST NO. 3 OF14(1201-1508)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-6AB50 |
URJ202..AX |
1 | ||
| 82141-6AC20 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AC20 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AD70 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 82141-6AC11 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC10 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AC10 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC21 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC11 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AB51 |
URJ202..AX |
1 | ||
| 82141-6AC21 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AD71 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 82141-6AC22 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AB53 |
URJ202..AX |
1 | ||
| 82141-6AD73 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 82141-6AB52 |
URJ202..AX |
1 | ||
| 82141-6AD72 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席) |
1 | ||
| 82141-6AC13 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC23 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC22 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC12 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82141-6AC13 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AC23 |
URJ202..AX ｼﾌﾄﾚﾊﾞｰ&ﾉﾌﾞ−木目&革巻&ｽﾃｱﾘﾝｸﾞｺﾗﾑ−電動ﾁﾙﾄ & ﾃﾚｽｺﾋﾟｯｸ,無し(ﾒﾓﾘ)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ﾌﾛﾝﾄｼｰﾄ−ﾊﾟﾜｰ(運転席,助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82141-6AC12 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60J20 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82142-60M20 |
URJ202 |
1 | ||
| 82142-60L41 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82142-60L40 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82142-60J21 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82142-60M21 |
URJ202 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-33120 |
URJ202 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60460 |
URJ202..AX,ZX |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-60010 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82149-60010 |
URJ202 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60790 |
URJ202..AX,ZX 有り(ｸｰﾙﾎﾞｯｸｽ)&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82166-60760 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60080 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-60600 |
URJ202..AX,GX |
1 | ||
| 82223-60610 |
URJ202..AX ｽﾃｱﾘﾝｸﾞ機構−有り(ﾊﾟﾜｰｽﾃｱﾘﾝｸﾞ&VGRS)&ｻｽﾍﾟﾝｼｮﾝ−ｷﾈﾃｨｯｸﾀﾞｲﾅﾐｯｸｻｽﾍﾟﾝｼｮﾝｼｽﾃﾑ&ｼｰﾄ表皮−本革 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60700 |
URJ202..AX |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60030 |
URJ202 |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-60040 |
URJ202 |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-60050 |
URJ202 |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-60060 |
URJ202 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-60100 |
URJ202 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-60160 |
URJ202 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-60170 |
URJ202 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-60110 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82815-60110 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-60120 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82815-60120 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-60A60 |
URJ202 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-60A90 |
URJ202 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-60S30 |
URJ202 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-60S20 |
URJ202 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-60B40 |
URJ202 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-60B50 |
URJ202 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-60C10 |
URJ202 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-60C20 |
URJ202 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-60G00 |
URJ202 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-60B60 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82817-60B60 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-60B70 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き |
1 | ||
| 82817-60B70 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ&EMV& ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ)&ﾊﾞｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-95J00 |
URJ202 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60180 |
URJ202 |
5 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60180 |
URJ202 |
5 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-60180 |
URJ202 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-A0622 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
