URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1301) ; (1301-1508)GX

Click highlighted areas on diagram

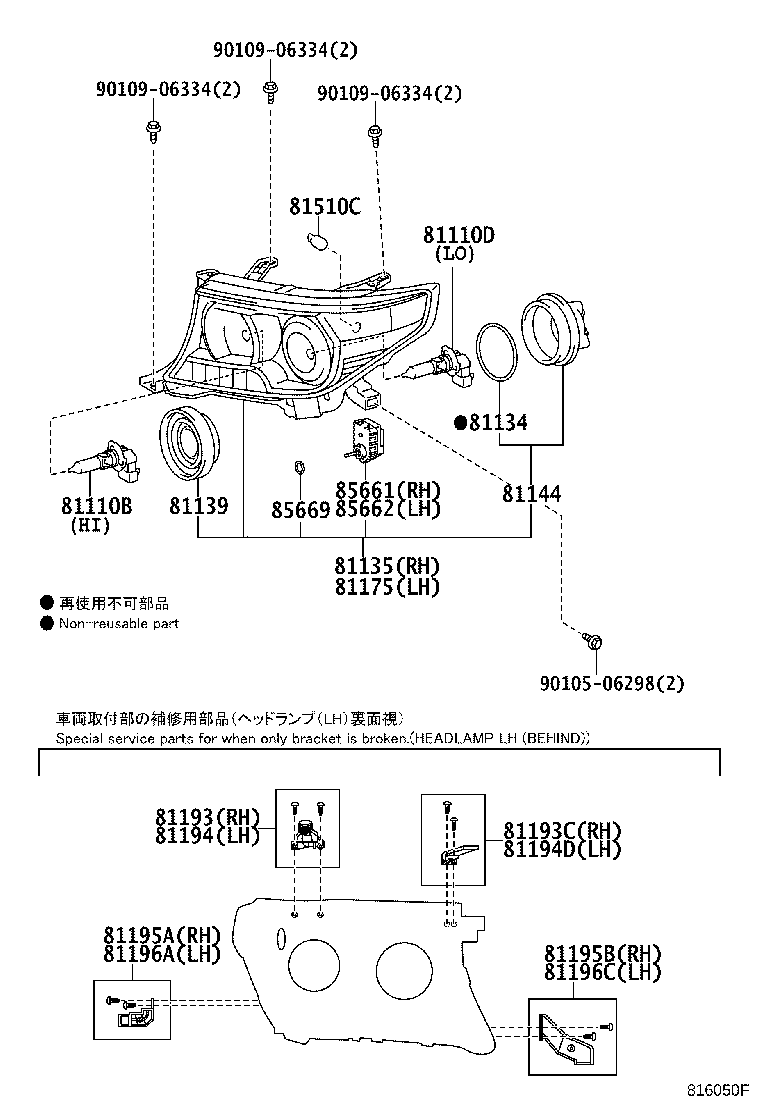

ﾊﾛｹﾞﾝ ﾍｯﾄﾞﾗﾝﾌﾟ

diagram 81110B 81110D 81134 81135 81139 81144 81175 81193 81193C 81194 81194D 81195A 81195B 81196A 81196C 81510C 85661 85662 85669 9010506298 9010906334 9010906334 9010906334
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

URJ202

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

URJ202..AX,ZX

12V 55W,ﾊﾛｹﾞﾝ

 2
81134 - GASKET, HEADLAMP
90075-23002

URJ202

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-60F60

URJ202..AX,ZX

 1
81145-60F40

URJ202..AX,ZX

 1
81139 - COVER, HEADLAMP SOCKET
90075-65006

URJ202

 2
81144 - COVER, HEADLAMP, NO.1
81135-60F60

URJ202..AX,ZX

 2
81175 - UNIT ASSY, HEADLAMP, LH
81185-60F40

URJ202..AX,ZX

 1
81170-60F60

URJ202..AX,ZX

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-60050

URJ202

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-60130

URJ202

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-60050

URJ202

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-60130

URJ202

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-60050

URJ202

 1
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-60120

URJ202

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-60040

URJ202

 1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-60110

URJ202

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

URJ202

12V 21W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-28011

URJ202..AX,ZX

 1
85661-B2010

URJ202..AX,ZX

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-B2010

URJ202..AX,ZX

 1
85691-28011

URJ202..AX,ZX

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

URJ202

 2
Common parts
90105-06298
90109-06334

(1301-1508)AX,ZX

Click highlighted areas on diagram

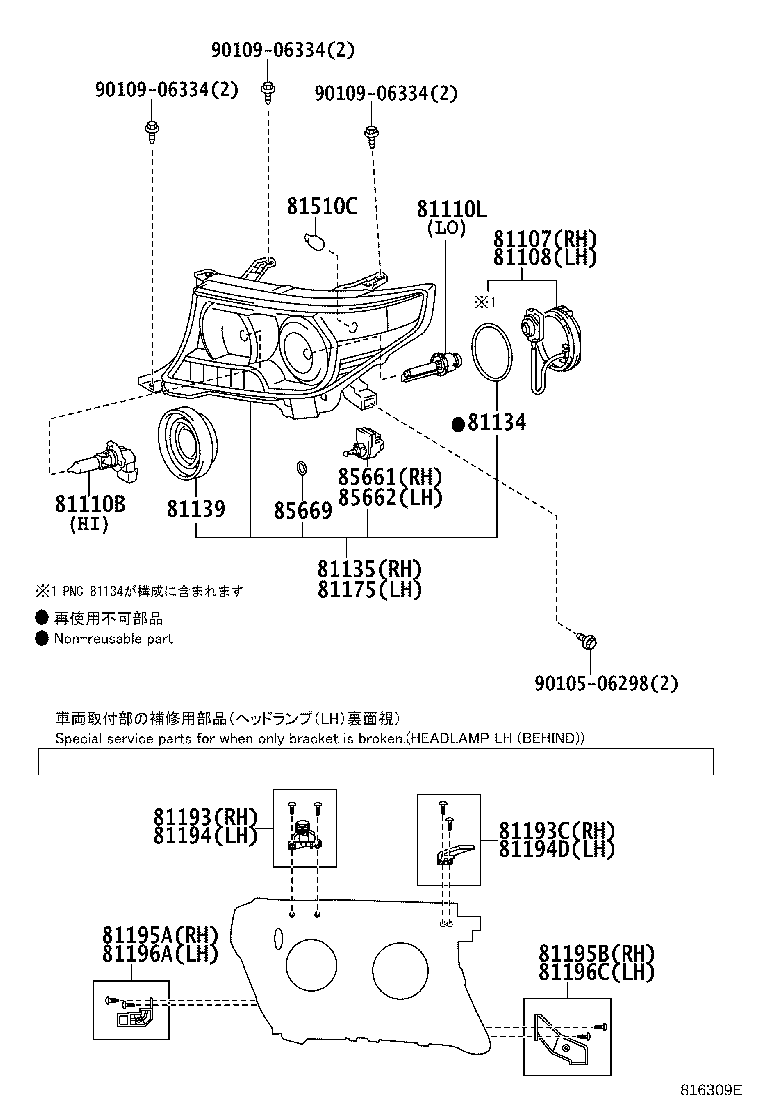

ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ

diagram 81107 81108 81110B 81110L 81134 81135 81139 81175 81193 81193C 81194 81194D 81195A 81195B 81196A 81196C 81510C 85661 85662 85669 9010506298 9010906334 9010906334 9010906334
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-60F10

URJ202..AX,ZX

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-60F10

URJ202..AX,ZX

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

URJ202

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20024

URJ202..AX,ZX

42V 35W

 2
90981-20024

URJ202..AX,ZX

42V 35W

 2
81134 - GASKET, HEADLAMP
90075-23002

URJ202

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-60F60

URJ202..AX,ZX

 1
81145-60F40

URJ202..AX,ZX

 1
81139 - COVER, HEADLAMP SOCKET
90075-65006

URJ202

 2
81175 - UNIT ASSY, HEADLAMP, LH
81185-60F40

URJ202..AX,ZX

 1
81170-60F60

URJ202..AX,ZX

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-60050

URJ202

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-60130

URJ202

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-60050

URJ202

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-60130

URJ202

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-60050

URJ202

 1
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-60120

URJ202

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-60040

URJ202

 1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-60110

URJ202

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

URJ202

12V 21W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-28011

URJ202..AX,ZX

 1
85661-B2010

URJ202..AX,ZX

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-B2010

URJ202..AX,ZX

 1
85691-28011

URJ202..AX,ZX

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

URJ202

 2
Common parts
90105-06298
90109-06334
