URJ202W-GNTAK (2012)
Toyota Land Cruiser
Production
Jan 2012
-
Aug 2015
Engine
1URFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

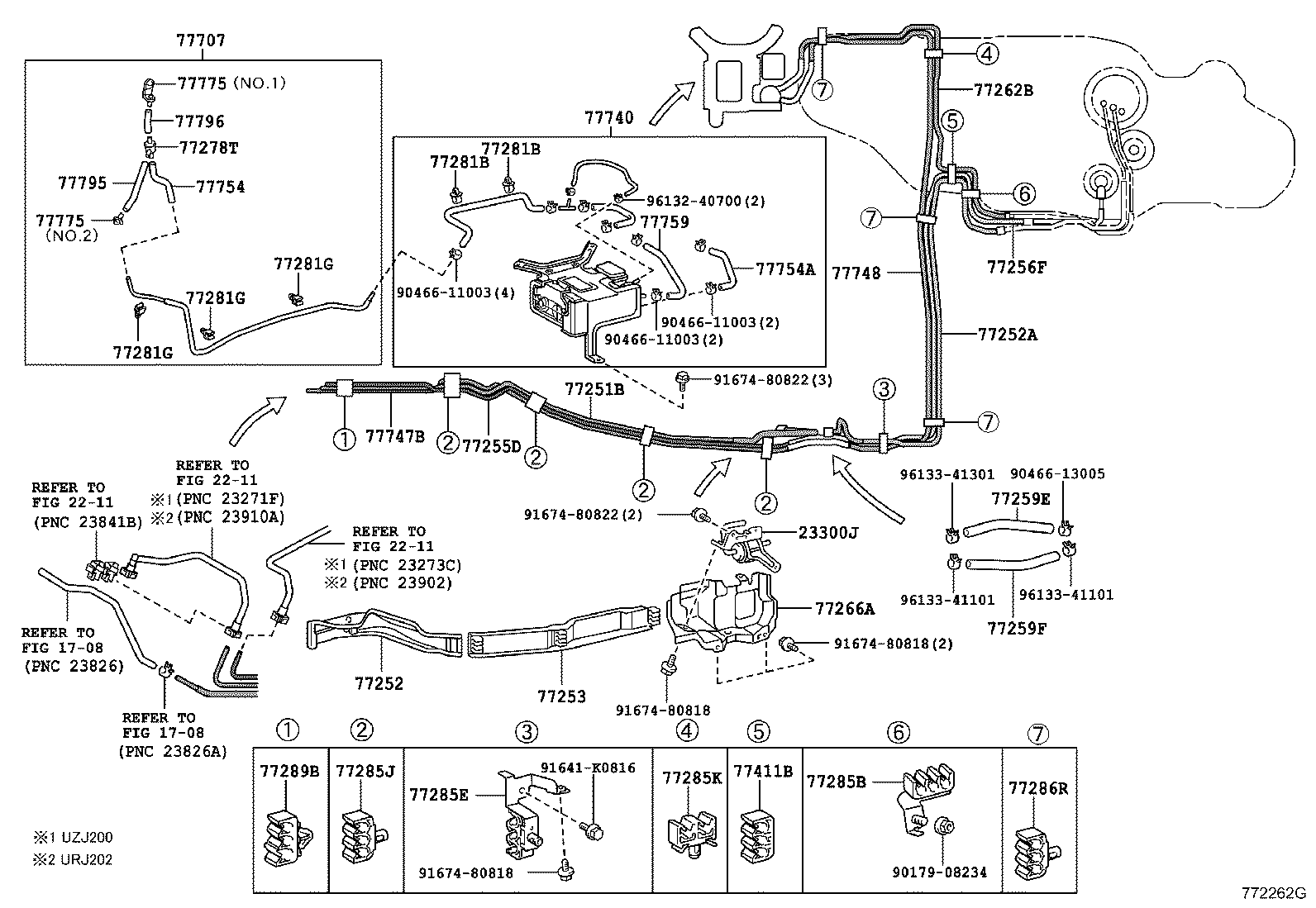

ILLUST NO. 2 OF 2(0709-1508)
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-50140 |
1URFE..URJ202 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-60C10 |
URJ202 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77296-60120 |
URJ202 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-60520 |
URJ202 |
1 | ||
| 77253 - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77297-60040 |
URJ202 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60B10 |
URJ202 |
1 | ||
| 77256F - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60680 |
URJ202 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60B00 |
URJ202 |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60510 |
URJ202 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-60270 |
URJ202 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60070 |
URJ202 |
1 | ||
| 77278T - VALVE, CHECK WITH HOSE | ||||
| 77278-60030 |
URJ202 |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-60330 |
URJ202 |
2 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-60330 |
URJ202 |
2 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
URJ202 |
3 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
URJ202 |
3 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
URJ202 |
3 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-60891 |
URJ202 |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-60880 |
URJ202 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
URJ202 |
4 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34031 |
URJ202 |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77285-60790 |
URJ202 |
3 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
URJ202 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
URJ202 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-60030 |
URJ202 |
1 | ||
| 77707-60032 |
URJ202 |
1 | ||
| 77707-60031 |
URJ202 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60480 |
URJ202 |
1 | ||
| 77747B - TUBE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-60070 |
URJ202 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-60030 |
URJ202 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60340 |
URJ202 |
1 | ||
| 77754-60341 |
URJ202 |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-60330 |
URJ202 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-60090 |
URJ202 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-60011 |
URJ202 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77775-60010 |
URJ202 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77775-60020 |
URJ202 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-60011 |
URJ202 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77775-60010 |
URJ202 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77775-60020 |
URJ202 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-60060 |
URJ202 |
1 | ||
| 77795-60061 |
URJ202 |
1 | ||
| 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 | ||||
| 77796-60020 |
URJ202 |
1 | ||
| Common parts | ||||
| 90179-08234 | ||||
| 90466-11003 | ||||
| 90466-13005 | ||||
| 91641-K0816 | ||||
| 91674-80818 | ||||
| 91674-80822 | ||||
| 96132-40700 | ||||
| 96133-41101 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
