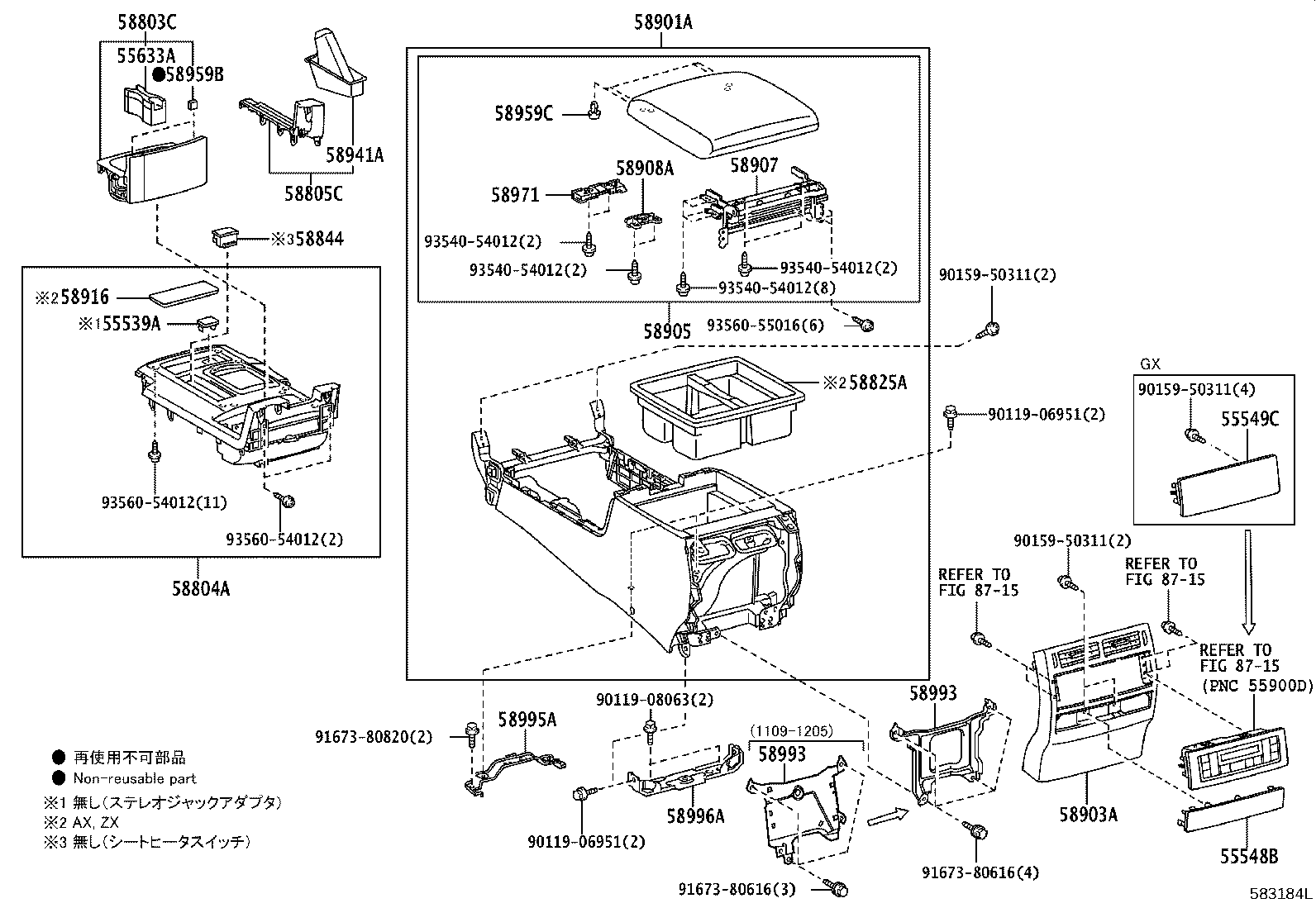

URJ202W-GNTAK (2012)
Toyota Land Cruiser
(0709-1508)
ﾅｼ(ｸｰﾙﾎﾞｯｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ202 BLACK |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60050A0 |
URJ202 SHELL,TRIM0# |
1 | ||
| 55548-60050C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-60040 |
URJ202 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-60040A1 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58803-60040C1 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60A00C1 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804-60A40C1 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804-60A00A1 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58804-60A40A1 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ,SHELL,TRIM0#,有り(木目) |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-60060A0 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58805-60060C0 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58806-60080 |
URJ202..AX,ZX |
1 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 84656-60110 |
URJ202..AX,GX |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-60760A1 |
URJ202..AX SHELL,TRIM0# |
1 | ||
| 58901-60770A1 |
URJ202..AX ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 58901-60760C1 |
URJ202..AX BLACK,TRIM1# |
1 | ||
| 58901-60770C1 |
URJ202..AX ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 58901-60771A1 |
URJ202..AX ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 58901-60761A1 |
URJ202..AX SHELL,TRIM0# |
1 | ||
| 58901-60761C1 |
URJ202..AX BLACK,TRIM1# |
1 | ||
| 58901-60771C1 |
URJ202..AX ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60350A0 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 58903-60350C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60420A1 |
URJ202..AX SHELL,TRIM0# |
1 | ||
| 58905-60430C2 |
URJ202..AX ｼｰﾄ表皮−本革,BLACK,TRIM2# |
1 | ||
| 58905-60420C1 |
URJ202..AX BLACK,TRIM1# |
1 | ||
| 58905-60430A2 |
URJ202..AX ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60060 |
URJ202 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-60040 |
URJ202 |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-60080 |
URJ202..AX,ZX |
1 | ||
| 58916-60100 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58809-60070C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 58809-60070A0 |
URJ202 SHELL,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
URJ202 |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
URJ202 |
4 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-60060 |
URJ202 |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 86719-60310 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 58993-60090 |
URJ202 |
1 | ||
| 58993-60090 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86719-60310 |
URJ202 |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 86719-60310 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 58993-60090 |
URJ202 |
1 | ||
| 58993-60090 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86719-60310 |
URJ202 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-60070 |
URJ202 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-60080 |
URJ202 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-08063 | ||||
| 90159-50311 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93540-54012 | ||||
| 93560-54012 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

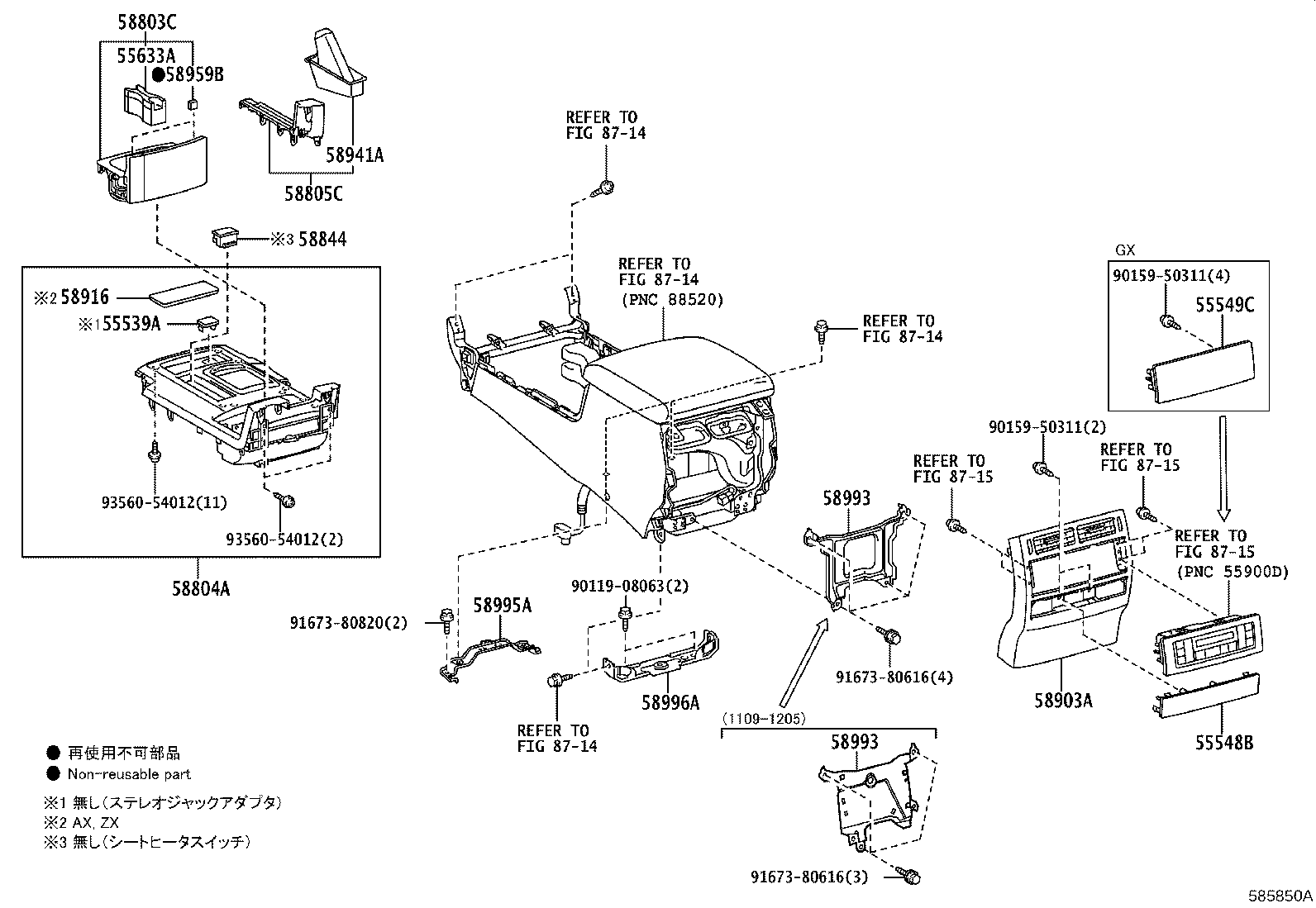

(0709-1508)
ｱﾘ(ｸｰﾙﾎﾞｯｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ202 BLACK |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60050A0 |
URJ202 SHELL,TRIM0# |
1 | ||
| 55548-60050C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-60040 |
URJ202 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-60040A1 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58803-60040C1 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60A00C1 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804-60A40C1 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58804-60A00A1 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58804-60A40A1 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ,SHELL,TRIM0#,有り(木目) |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-60060A0 |
URJ202..AX,ZX SHELL,TRIM0#,有り(木目) |
1 | ||
| 58805-60060C0 |
URJ202..AX BLACK,TRIM1#,2#,有り(木目) |
1 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 84656-60110 |
URJ202..AX,GX |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60350A0 |
URJ202..AX,ZX SHELL,TRIM0# |
1 | ||
| 58903-60350C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-60080 |
URJ202..AX,ZX |
1 | ||
| 58916-60100 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN + DVD AM/FM 9ｽﾋﾟｰｶ |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58809-60070C0 |
URJ202..AX BLACK,TRIM1#,2# |
1 | ||
| 58809-60070A0 |
URJ202 SHELL,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
URJ202 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 86719-60310 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 58993-60090 |
URJ202 |
1 | ||
| 58993-60090 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86719-60310 |
URJ202 |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 86719-60310 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 58993-60090 |
URJ202 |
1 | ||
| 58993-60090 |
URJ202..AX,ZX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86719-60310 |
URJ202 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-60070 |
URJ202 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-60080 |
URJ202 |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90159-50311 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
